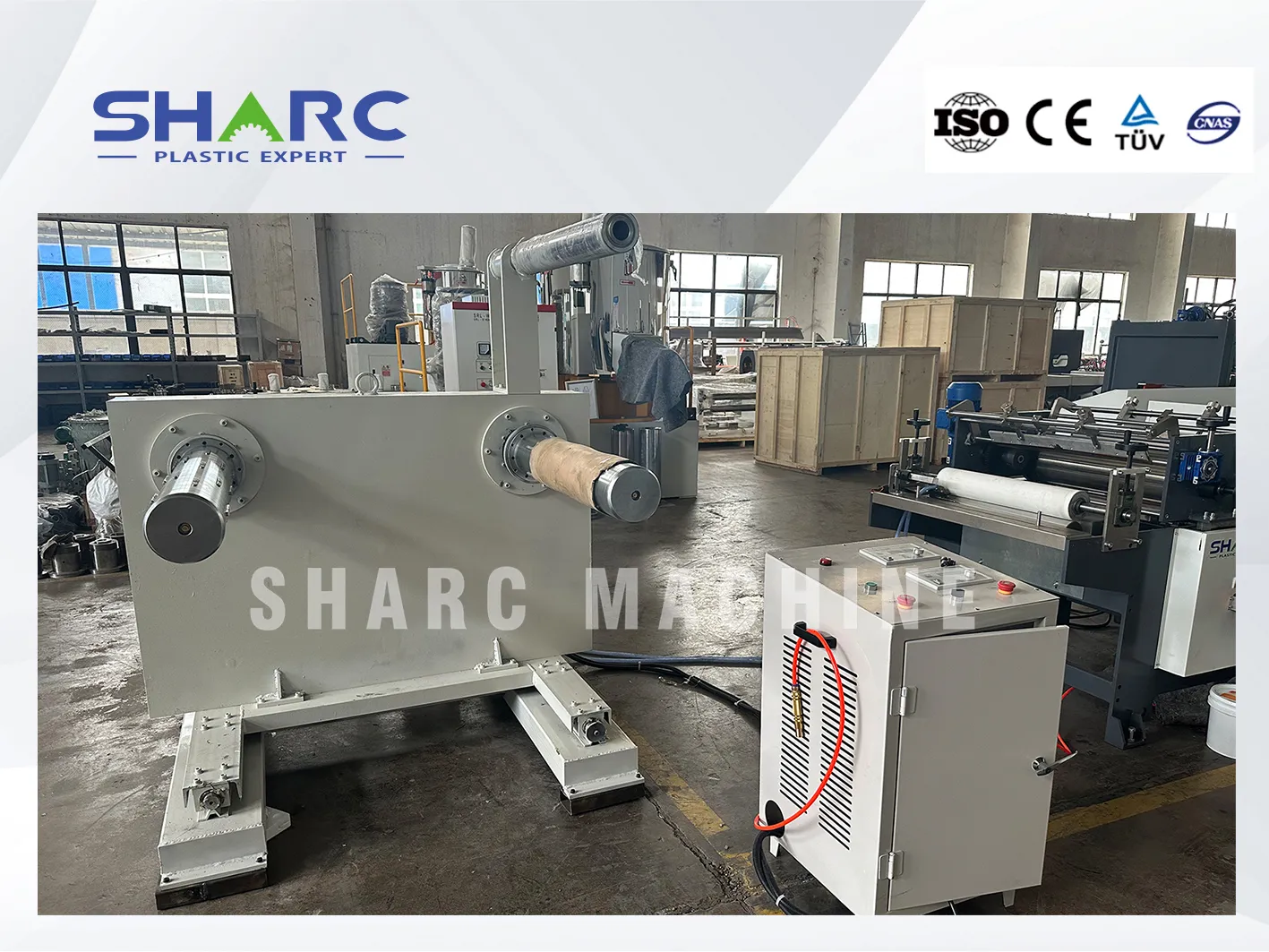

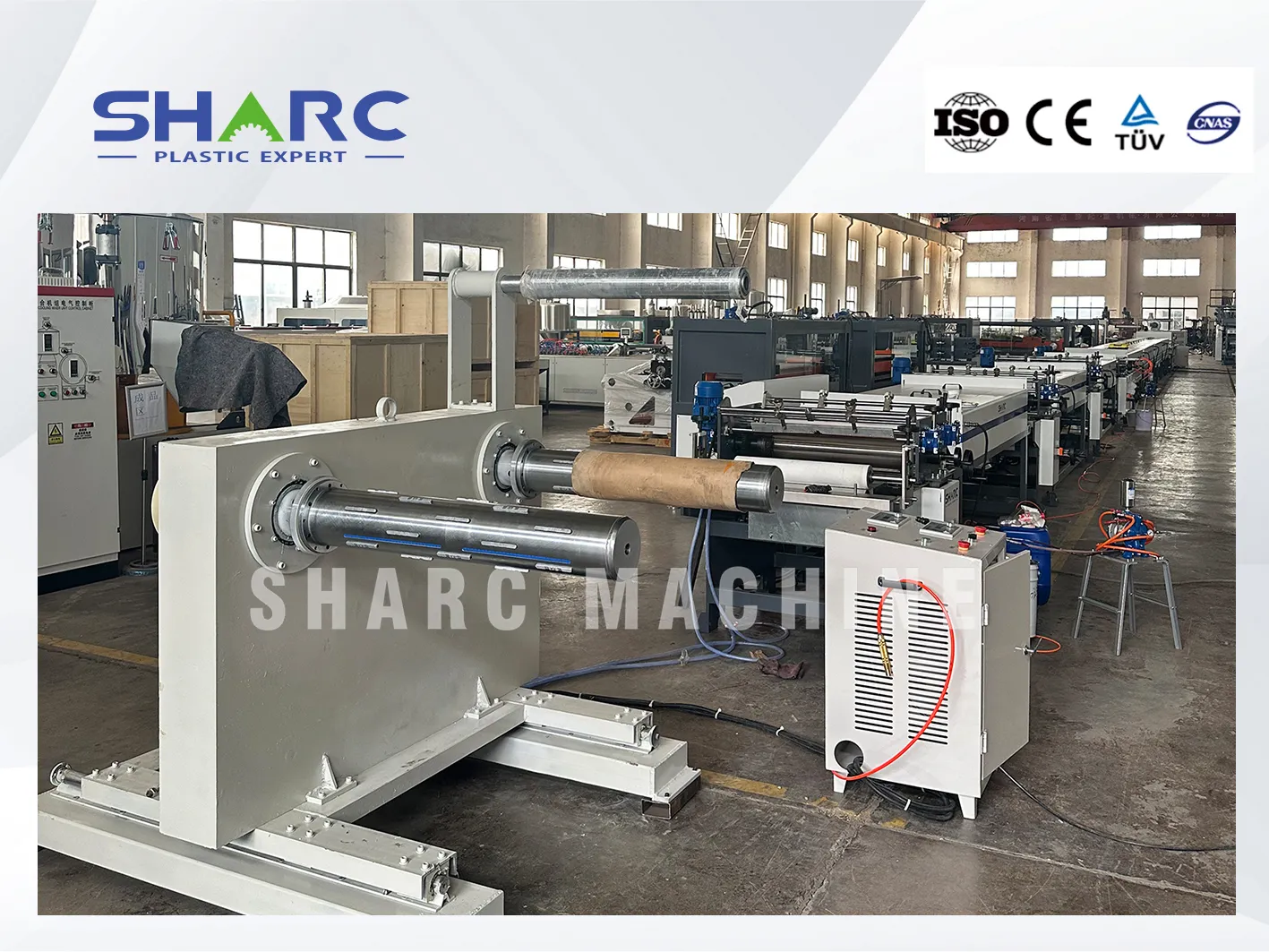

PVC Sheet Winding Machine
PVC Sheet Winding Machine is a kind of equipment used to wind up and arrange the produced PVC sheets. It is mainly used in the production and processing industry of PVC sheets. It can roll up the continuously produced PVC sheets into rolls according to certain specifications and requirements, which is convenient for storage, transportation and subsequent processing.
- Base material thickness and width: PVC (0.4-3.0), 12-50 mm (max)
- Machine size: 1693x900x1329 mm
- Diameter of wooden tray: Ø700 mm
- Machine speed: 5-50 m/min
- Installed capacity: Total power 1.25 KW, power: 1.2 KW
- Transportation method: automatic
- Items to be prepared by the buyer: (1) Air compressor (working pressure 0.6 Mpa; 0.5 m3 /min) (2) 220V power suppl
PVC sheet winding machine has the following equipment features:
High-precision winding: equipped with advanced tension control system and deviation correction system, it can accurately control the tension and position of PVC sheet winding, ensure the flatness and tightness of winding, avoid wrinkles, deviation and other problems, and ensure the quality of winding.
High degree of automation: using PLC or industrial computer control, it can realize a series of operations such as automatic unwinding, traction, winding, cutting, etc., just need to set the parameters on the human-machine interface, the equipment can automatically run according to the preset program, reduce manual intervention and improve production efficiency.
Efficient production: fast winding speed, can meet the needs of large-scale production. At the same time, the equipment has good stability, can run continuously for a long time, reduce equipment failure rate, reduce downtime, and further improve production efficiency.
Strong compatibility: by adjusting the relevant parameters of the equipment and configuring different accessories, it can adapt to the winding of PVC sheets of different widths, thicknesses and materials. It has strong versatility and flexibility and can meet a variety of production needs.
Easy operation: The user-friendly operation interface design makes it easy for operators to get started and convenient for parameter setting, equipment monitoring and fault diagnosis. At the same time, the maintenance of the equipment is relatively simple, reducing maintenance costs.
Good safety performance: A variety of safety protection devices are set, such as overload protection, leakage protection, emergency stop button, etc., which can effectively protect the safety of operators and equipment and reduce the occurrence of safety accidents.
