PVC edge band extrusion line

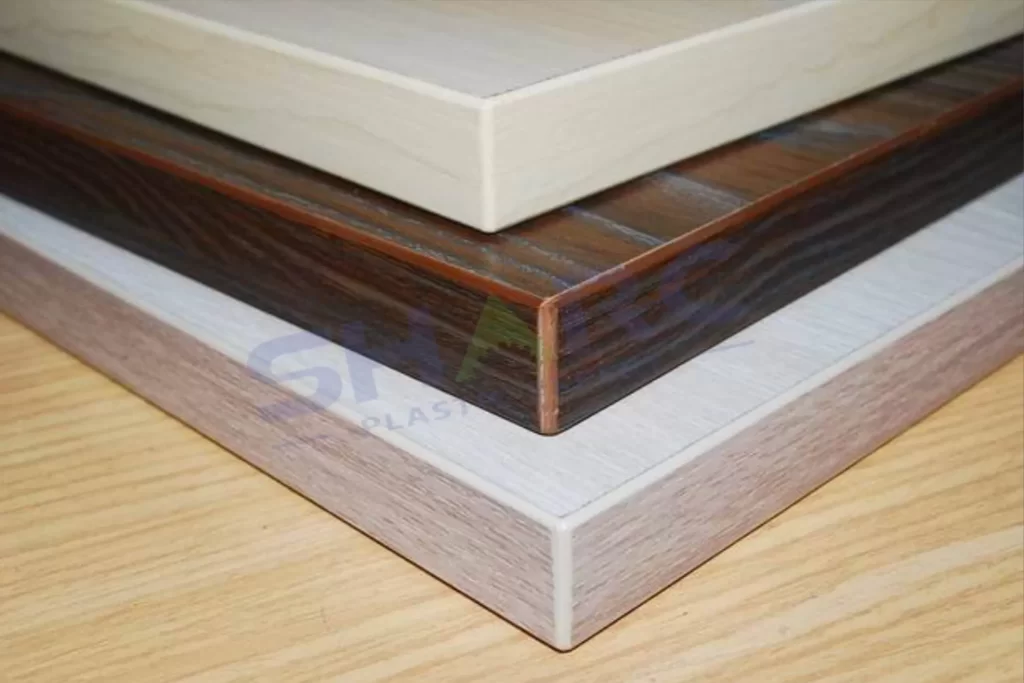

Low price: PVC edge banding is a relatively low-priced edge banding material with a high cost-effectiveness ratio.
Excellent performance: PVC edge banding has good wear resistance, weather resistance, heat resistance, acid and alkali resistance, is not easy to fade and deform, and has a long service life.
Various styles: PVC edge banding has a wide range of colors, patterns, and styles to meet the needs of different consumers.

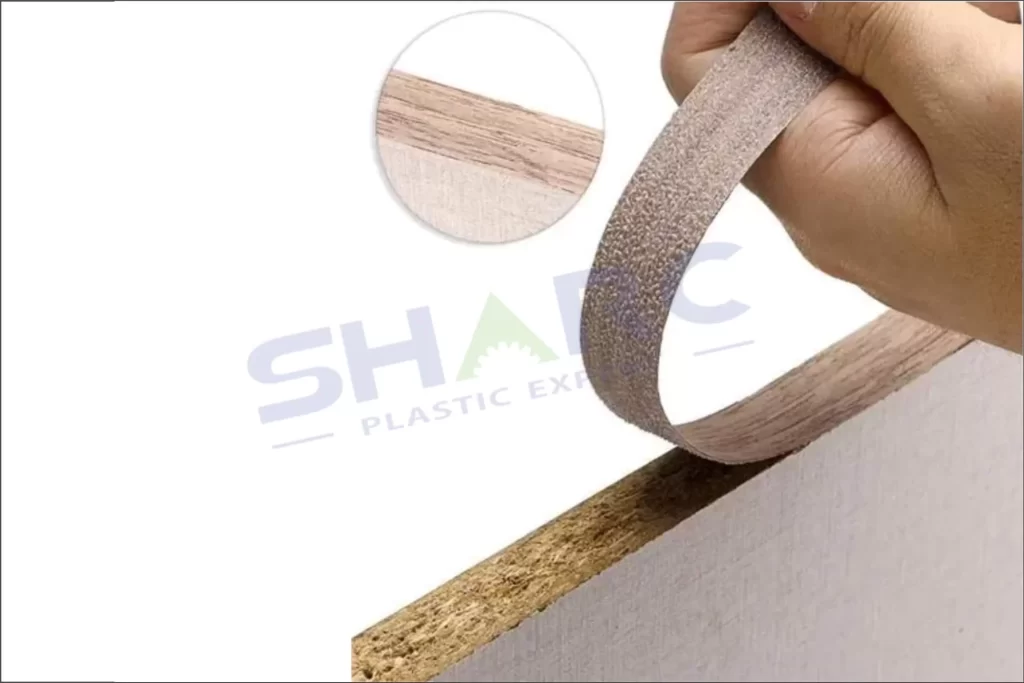

Easy to process: PVC edge banding is easy to cut and bond, and the construction is simple and convenient.

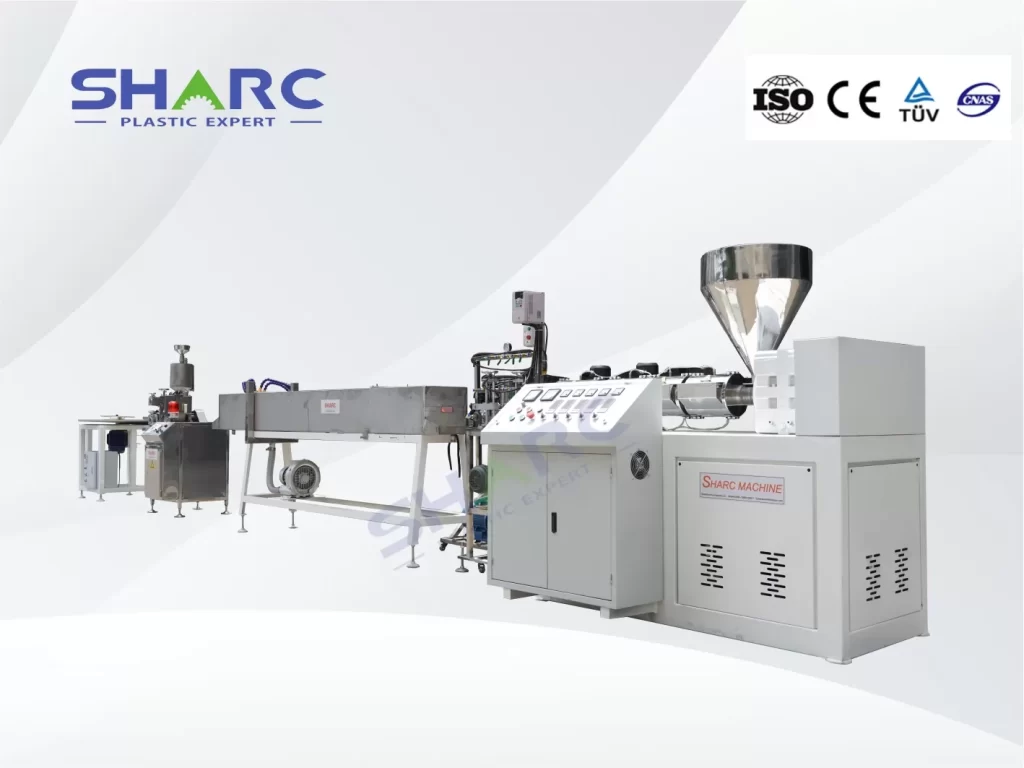

Process for Single screw extruder PVC edge band making machine:

Raw material mixing process: according to the formulation from Sharc, the worker will put all materials into mixer and the machine will mix all materials automatically.
granulation process: the mixed materials will be feed to this process to turn powder materials into granule format.
Extrusion process: after get granule from last step, it will be feed here to get plain color edge band.
Printing and UV coating process: This process is used to print colors to edge band tapes, also some edge band will get matt/shiny surface by UV coating machine here.

Working process of PVC ceiling panel machine by hot stamping:

Material loader → PVC mixer machine → vibration sieve → material loader → conical double screw extruder machine → mold (extrusion die head + calibration mold) → vacuum and calibration table → haul off machine → hot stamping machine →cutting machine → stacker → final PVC ceiling panel → package

Process for double screw extruder PVC edge band making machine:

Raw material mixing process: according to the formulation from Sharc, the worker will put all materials into mixer and the machine will mix all materials automatically.
Extrusion process: mixed materials will be directly feed here to get plain color edge band tape.
Printing and UV coating process: This process is used to print colors to edge band tapes, also some edge band will get matt/shiny surface by UV coating machine here.

Advantages of using double screw extruder to produce edge band tape:

The process is more easier, clients can directly use powder format materials to do production, easy for new client to start this project.
Compared with single screw extruder machine, the capacity is higher.

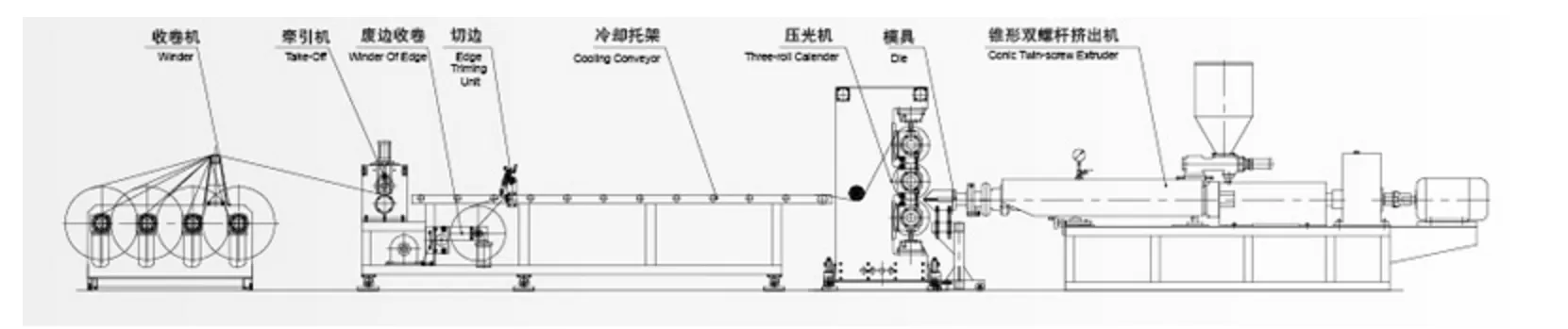

Process for Three calendar system PVC edge band sheet making machine:

Raw material mixing process: according to the formulation from Sharc, the worker will put all materials into mixer and the machine will mix all materials automatically.
Extrusion process: mixed materials will be directly feed here, but we get big PVC sheet here first. (we will cut it in the following step)
Printing and UV coating process: This process is used to print colors to PVC sheets, also will get matt/shiny surface by UV coating machine here.
Slitting process: Because on second step we get big PVC sheet, so we can cut in this step to get final size edge band tapes.

Advantages of using three calendar system to produce edge band tape

High efficiency
High capacity
Suitable for big company

Advantages of ABS edge banding:

Strong impact resistance: ABS edge banding has strong impact resistance and is not easy to break.
Good weather resistance: ABS edge banding has good weather resistance, can resist wind and rain erosion, and has a long service life.
Good dimensional stability: ABS edge banding has good dimensional stability and is not easy to deform.
Easy to process: ABS edge banding is easy to cut and bond, and the construction is simple and convenient.

Advantages of acrylic (PMMA) edge banding:

High transparency: Acrylic edge banding has high transparency, the texture of the board can be clearly seen, and it has a good decorative effect.
High brightness: The surface gloss of acrylic edge banding is high, which can make the furniture look brighter and more upscale.
Wear-resistant and weather-resistant: Acrylic edge banding has good wear resistance and weather resistance, is not easy to fade and deform, and has a long service life.
Good environmental protection: Acrylic edge banding does not add any fillers during the production process, does not release harmful substances such as formaldehyde, and has good environmental protection performance.

Extruder Model	Capacity (kg/h)	Main Motor (kW)
Single Screw PVC Edge Banding Production Line
SJ45/25	25–30	7.5
SJ50/25	30–35	11
SJ55/25	35–40	11
SJ65/25	60–90	15
Double Screw PVC Edge Banding Production Line
SJZ45/90 (45/100)	75–90	15
SJZ51/105	90–120	18.5
SJZ55/110	150–180	22
Three-Roller Calendar PVC Edge Banding Line
SJZ65/132	200–250	37
SJZ80/156	400–450	55
ABS / PMMA Transparent Edge Banding Line
SJ45/25	25–30	7.5
SJ50/25	30–35	11
SJ55/25	35–40	11
SJ65/25	60–90	15
