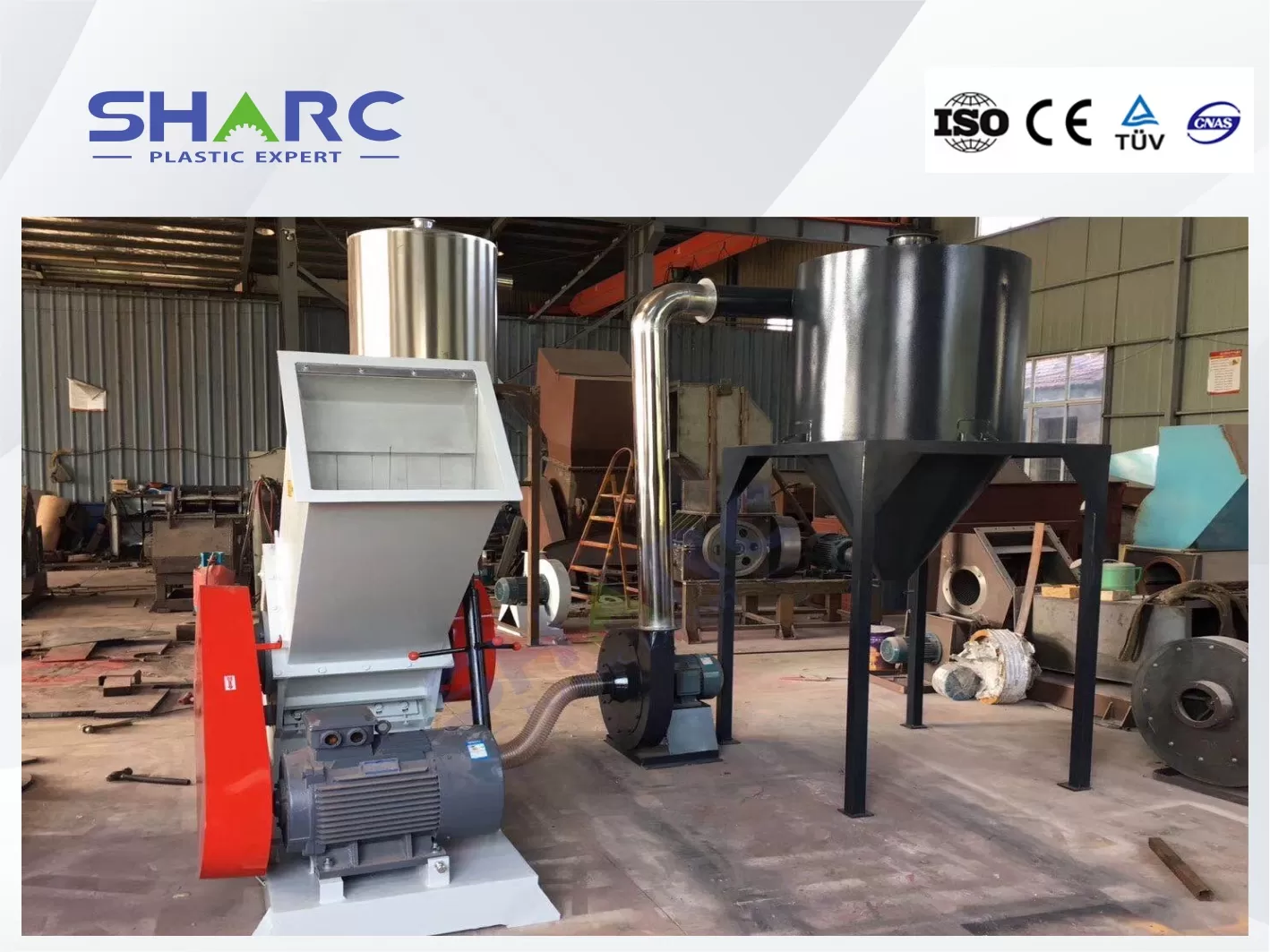

Plastic Crusher Machine
High quality blade for Plastic Crusher Machine of long life machine running
| Item | Unit | 300 | 400 | 500 | 600 | 700 | 800 |
|---|---|---|---|---|---|---|---|
| Motor Power | kW | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
| Voltage | V | 380 or customized | |||||
| Input Size | mm | 300 × 200 | 400 × 280 | 500 × 330 | 600 × 400 | 700 × 440 | 800 × 580 |
| Input Height | mm | 1020 | 1200 | 1280 | 1430 | 1870 | 1900 |
| Vibration Sieve Size | mm | 8–12 (optional) | |||||
| Capacity | kg/h | 150–200 | 250–400 | 300–550 | 500–600 | 600–700 | 700–800 |
| Machine Weight | kg | 300 | 430 | 650 | 850 | 1325 | 1800 |
| Moving Blades | pcs | 9 | 12 | 15 | 18 | 21 | 24 |
| Fixed Blades | pcs | 2 | 2 | 2 | 2 | 4 | 4 |
| Bearing Diameter | mm | 72 | 72 | 78 | 82 | 110 | 110 |
| Rotating Speed | rpm | 610 | 580 | 600 | 506 | 493 | 440 |
| Blade Material | / | T10 | |||||
Some features of Plastic Crusher Machine from SHARC:
- This type Plastic Crusher Machine adopts sound insulation device, low noise.

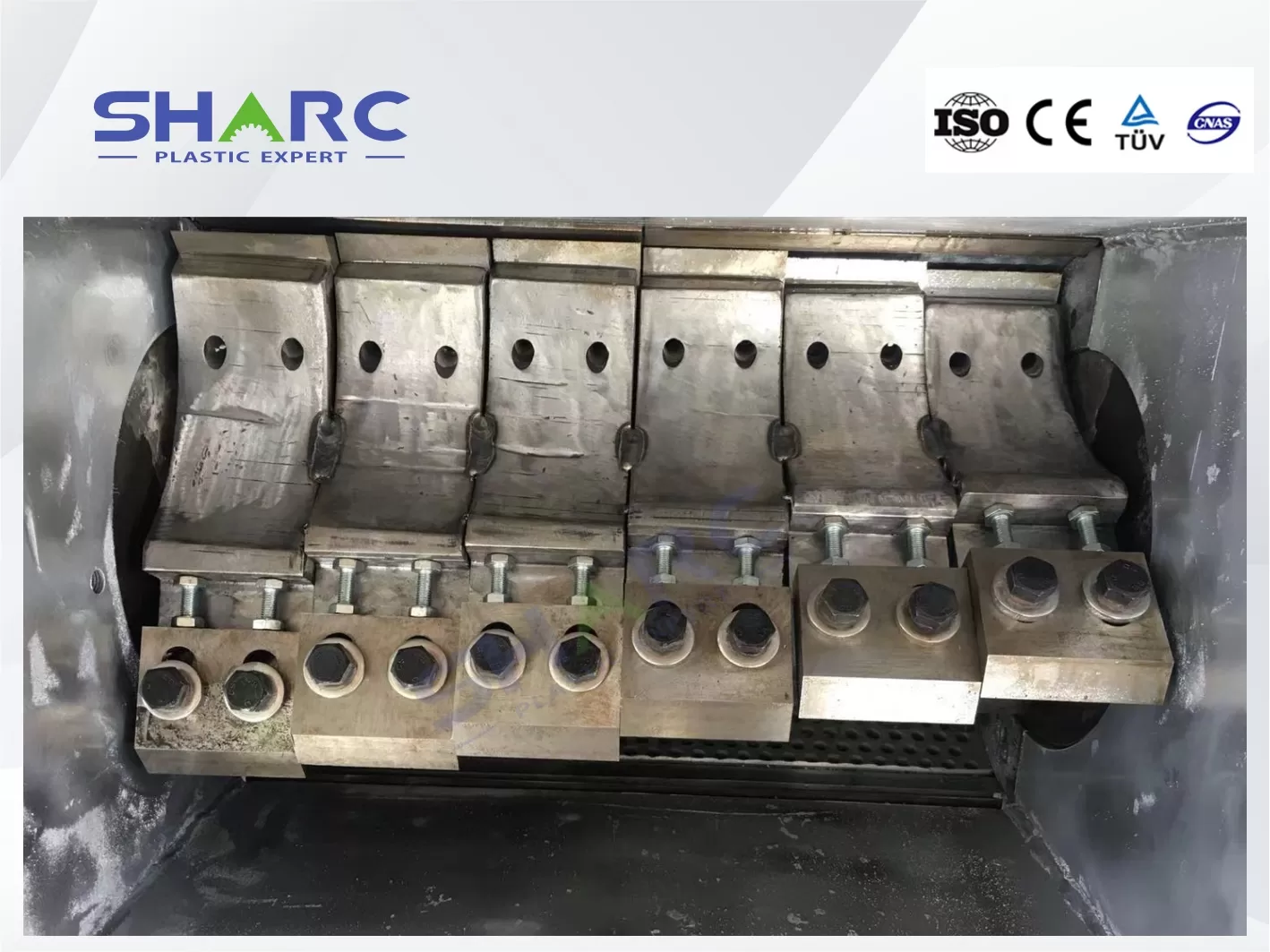

- Removable blade is adopted for easy removal after blunt use.
- Wide range of applications can be used for the crushing of many kinds of plastics.
- Optional frequency converters are available to reduce energy consumption and reduce the power required to start.

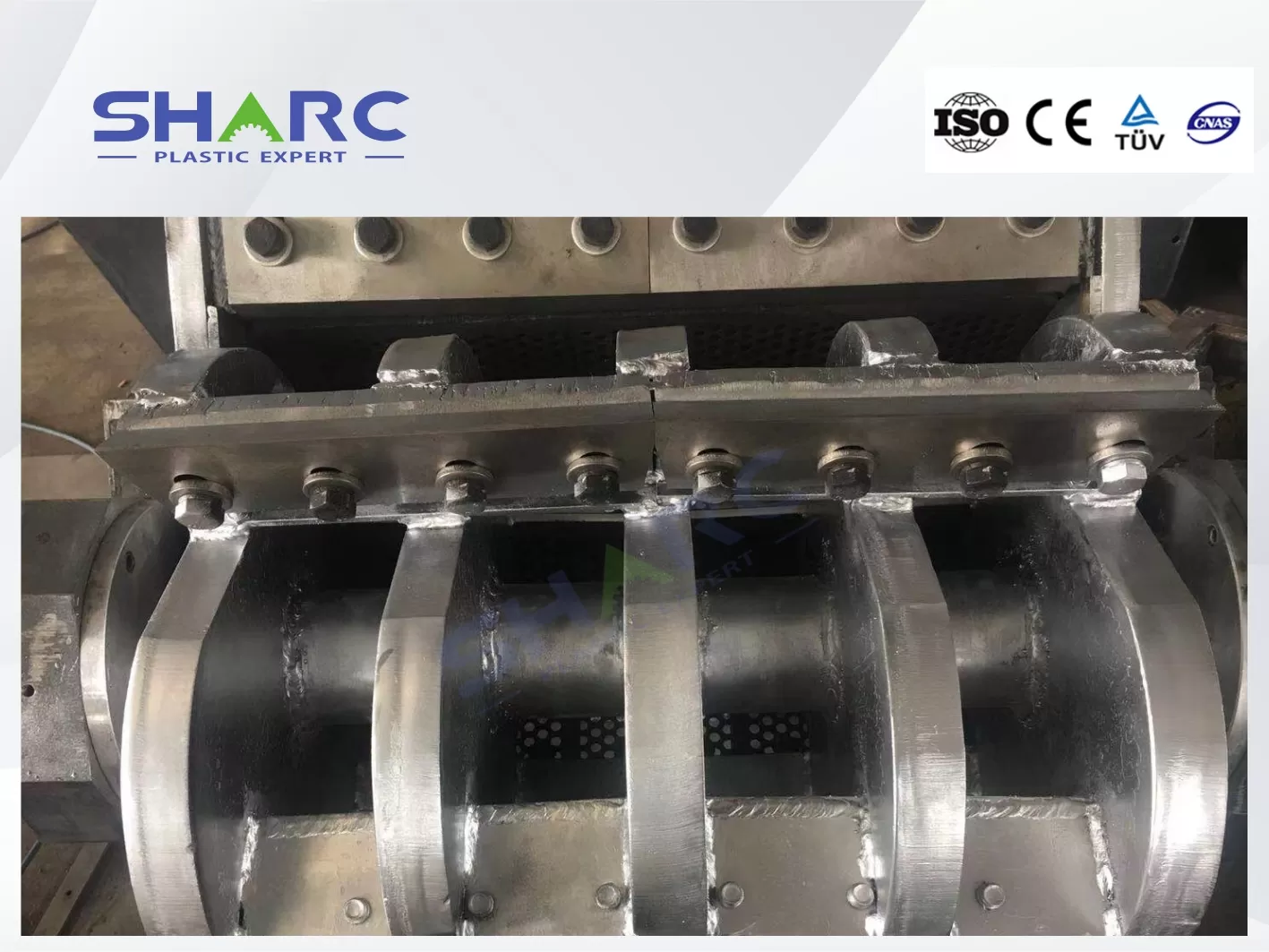

- Plastic Crusher Machine uses high-performance blades with high quality and long service life.
- Plastic Crusher Machine is equipped with a dust removal device, it protects the health of workers and maintains the cleanliness of the factory.
The use of recycled materials in the production of new plastic pipes will have the following benefits:
- It can improve the plasticizing effect of the new tube/pipe, and it will have better quality than the products produced from the new material.
- It can increase the production speed of the equipment, also because the plasticization is better. Indirectly reduce production costs and enhance international competitiveness.
- But the added recycled material also needs to be controlled within a certain range. Otherwise, there will be some bad effects.
- The price of recycled material is much cheaper than new material, which greatly reduces the production cost.
- The recycling of waste plastics is conducive to environmental protection.
As the consumption of plastic products continues to increase, the amount of waste plastics also continues to increase. As part of the recycling process, crushing is very important to use the correct crusher. Our company specializes in the production of various plastic crushers machine. Our company’s plastic crusher machine can be used for plastic pipe, plastic panel, plastic profiles, plastic film and all kinds of plastic products.
Unit specifications of Plastic Crusher Machine

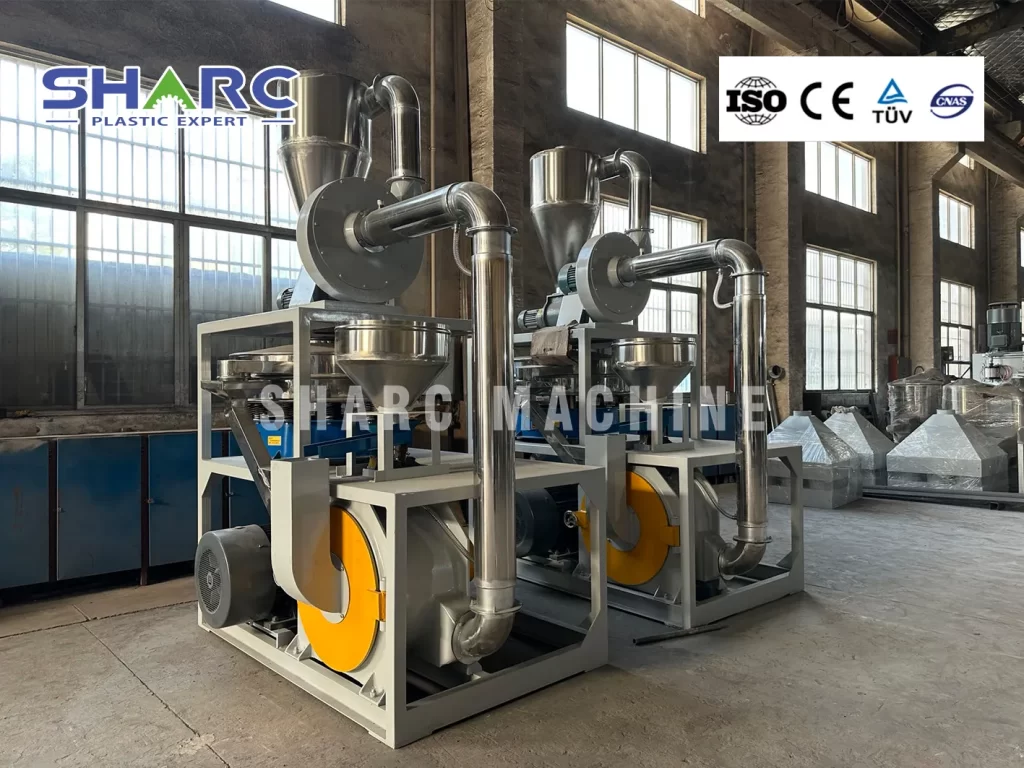

PVC pulverizer machine
PVC pulverizer machine was formed in the early 1980s and has been continuously improved and updated. It has been in use until now. The model has evolved from SMF-400 to SMF-500, SMF-600, and SMF-800. Significant improvements have been made in the past, and the output of SHARC’s plastic pulverizer has also increased from the initial dozens of kilograms to hundreds of kilograms or even nearly 1 ton per hour, and the fineness has also developed from a fixed number to an adjustable one.

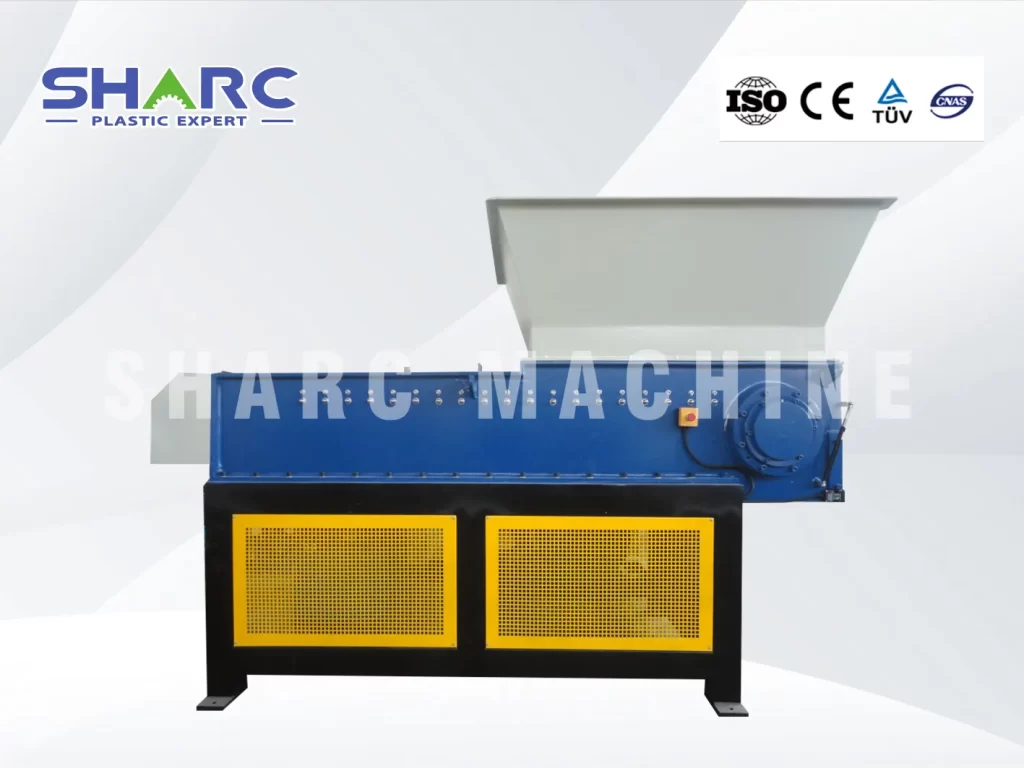

Plastic Shredder Machine

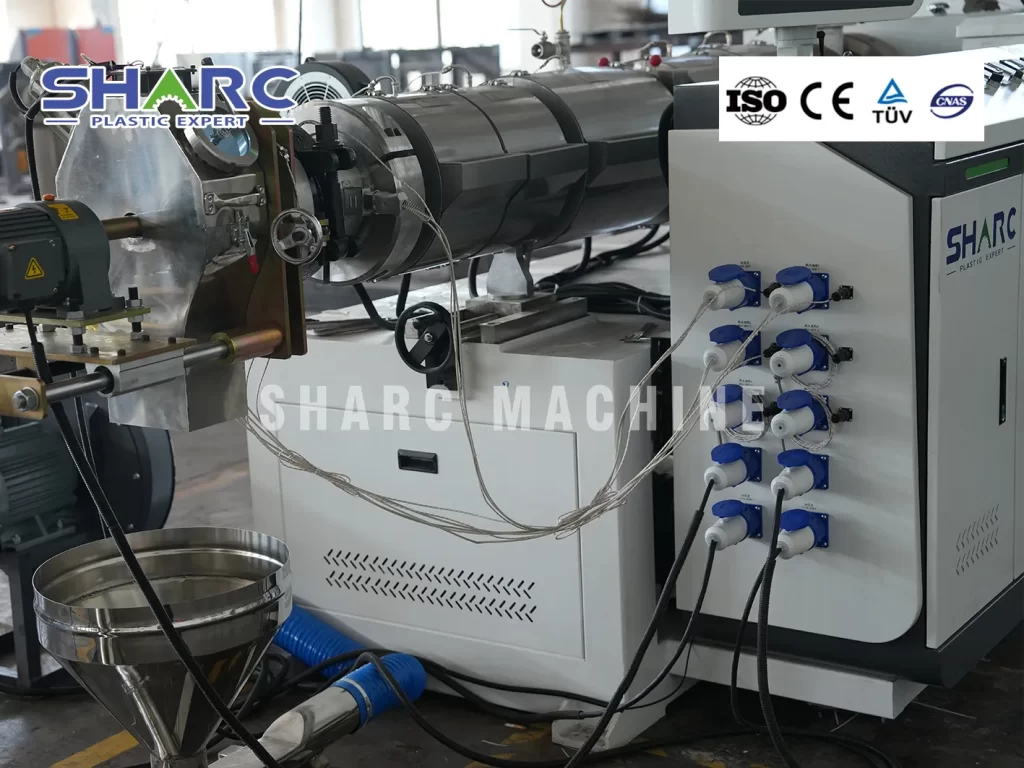

PVC Granulation Machine
PVC Granulation Machine is the core equipment for recycling and processing of polyvinyl chloride (PVC) plastics. It converts PVC resin, additives and recycled waste into reusable granular raw materials through physical processing and is widely used in various links of the plastic industry chain.
