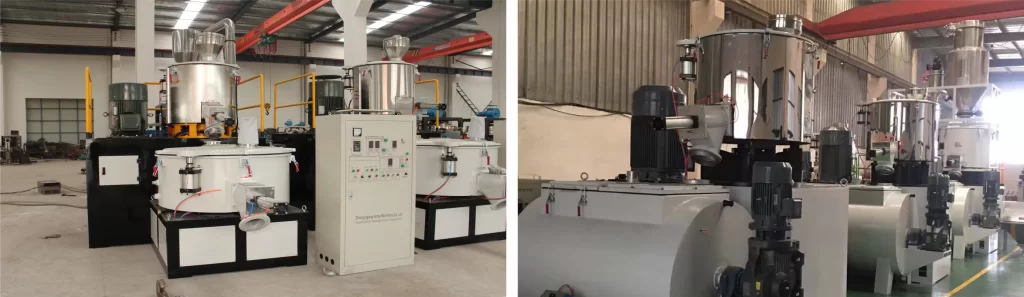

Plastic PVC Mixer Machine
High speed and low speed Plastic PVC Mixer Machine is widely used in the production of various plastic industries because of its advantages of fast mixing, uniform mixture, good absorption of resin to plasticizer, easy operation of the machine, easy cleaning, sturdy and durable, and compact structure.
| Model (Hot / Cold) | 200 / 500 | 300 / 600 | 500 / 1000 | 800 / 2500 | 1000 / 3000 |
|---|---|---|---|---|---|
| Total Volume (L) | 200 / 500 | 300 / 600 | 500 / 1000 | 800 / 2500 | 1000 / 3000 |
| Effective Volume (L) | 150 / 320 | 220 / 420 | 375 / 650 | 560 / 1600 | 750 / 2250 |
| Mixing Time (s) | 95 / 130 | 95 / 100 | 86 / 70 | 74 / 50 | 68 / 60 |
| Motor Power (kW) | 8–12 | 8–12 | 8–12 | 8–12 | 8–12 |
| Speed (rpm) | 45 / 11 | 55 / 11 | 75 / 15 | 110 / 22 | 160 / 37 |
| Heating Method | Heating oil + self-friction | ||||
Advantageof the Plastic PVC Mixer Machine:
- high speed and low speed Plastic PVC Mixer Machine is widely used in the production of various plastic industries because of its advantages of fast mixing, uniform mixture, good absorption of resin to plasticizer, easy operation of the machine, easy cleaning, sturdy and durable, and compact structure.

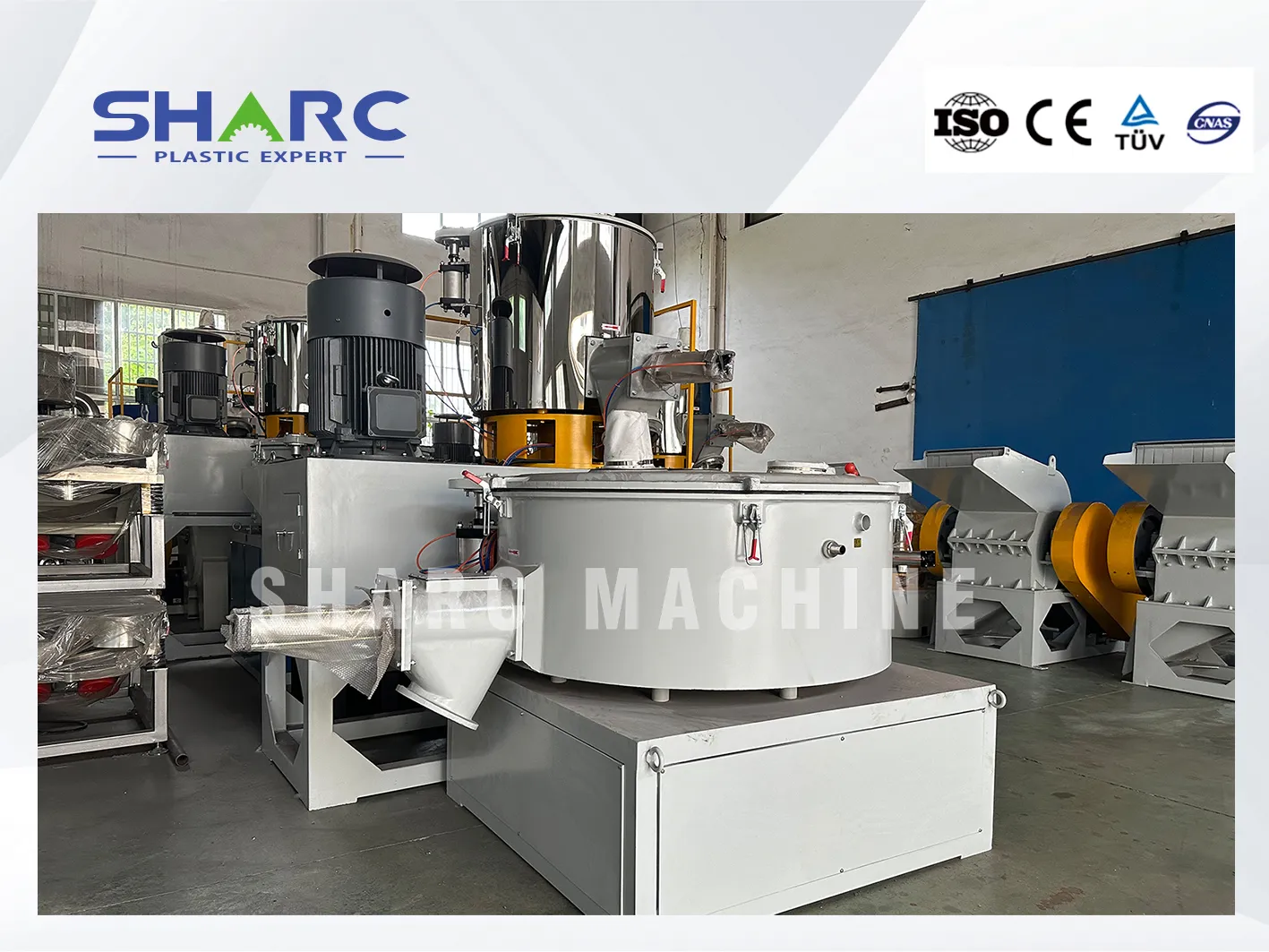

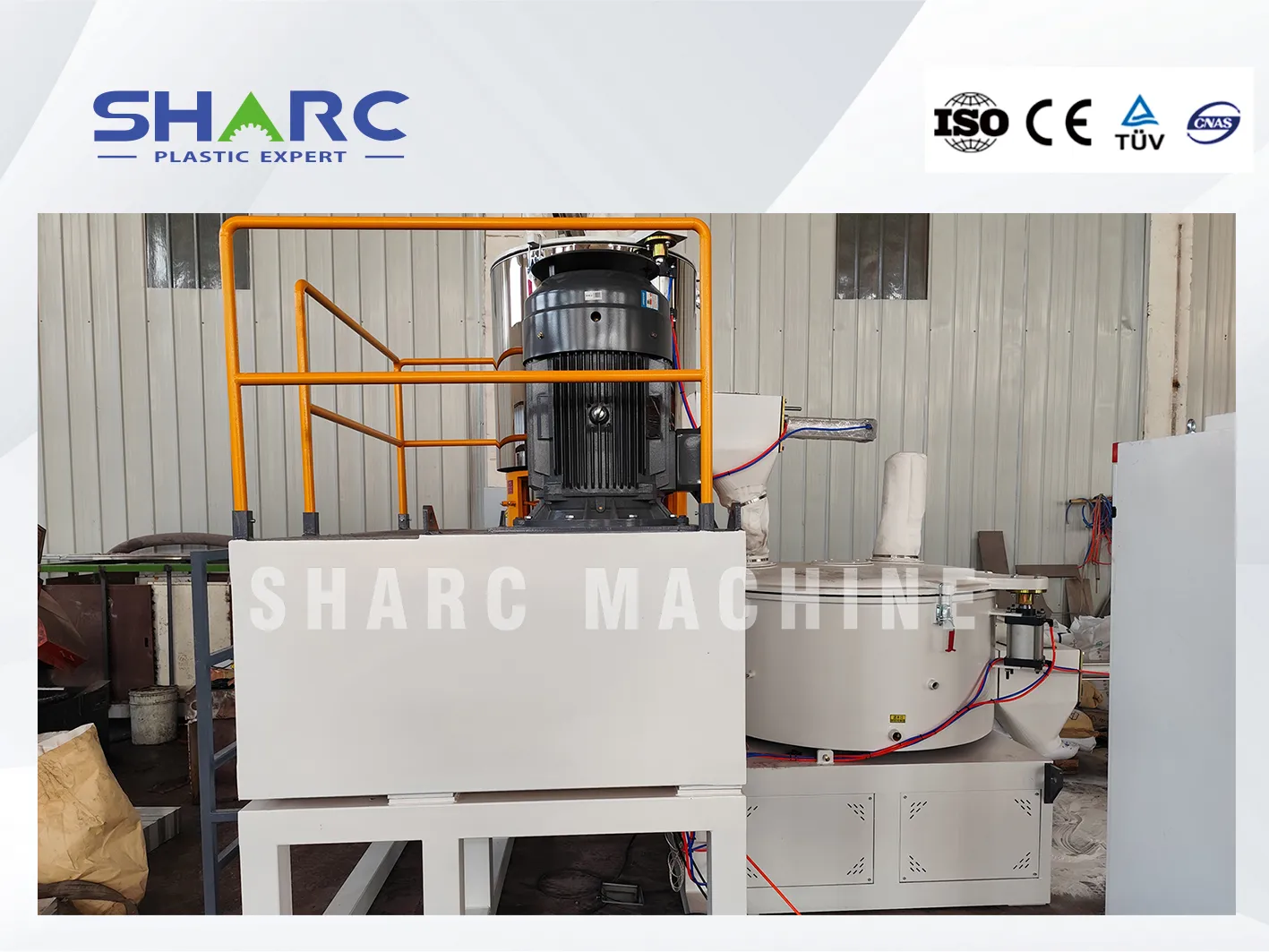

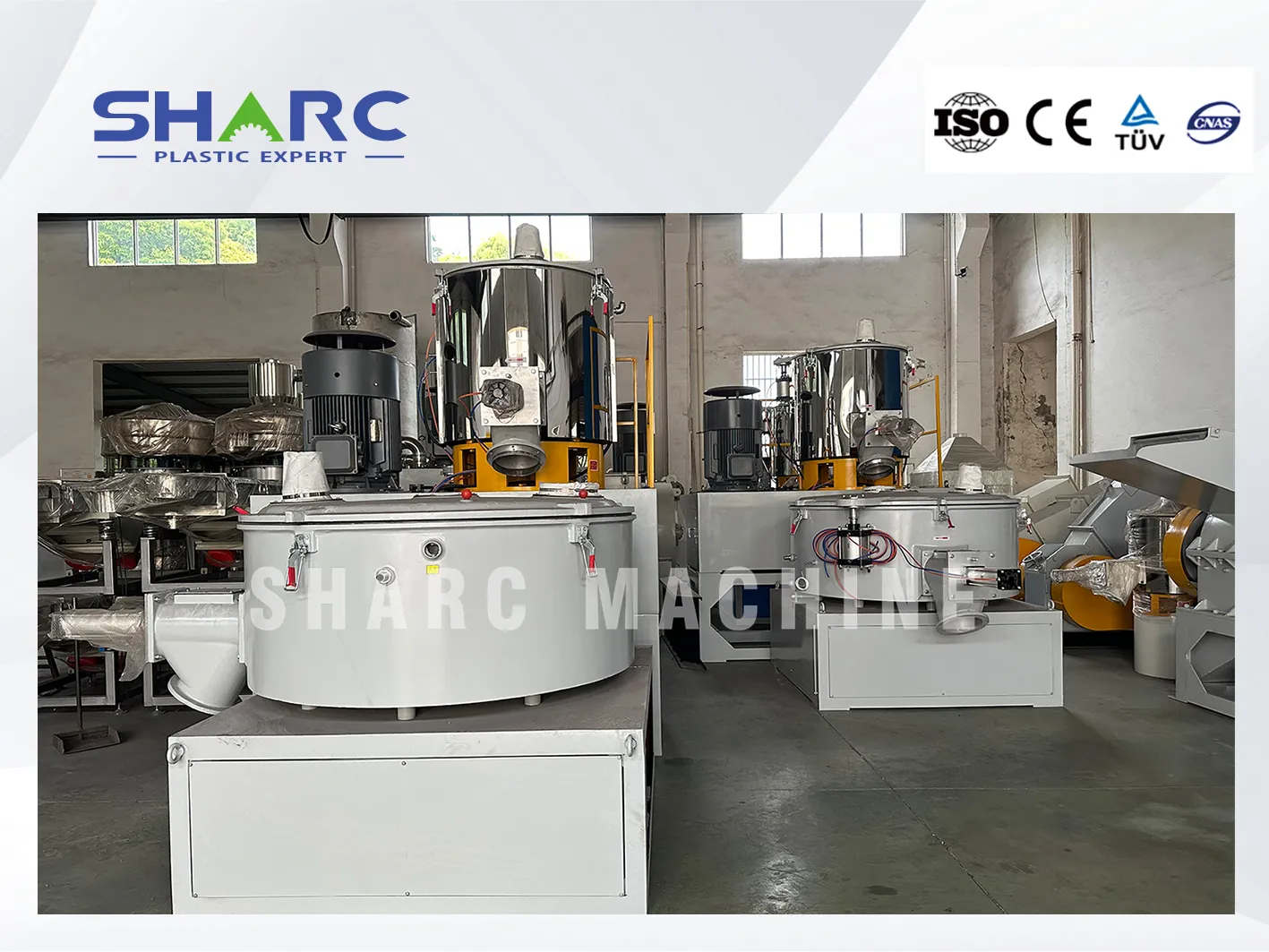

- high speed and low speed Plastic PVC Mixer Machine consists of pot body, pot cover, transmission parts, base, outlet and other components. The pot body is welded by stainless steel, the inner surface is extremely smooth and hard, and has the characteristics of wear resistance, corrosion resistance, and not easy to stick.
- There is a heating jacket and a resistance heating ring on the outer surface of the pot. The temperature is directly transferred to the pot body through the high ignition point mechanical oil in the heating jacket, so that the pot body is heated evenly, and the temperature of the material in the pot can be controlled by adjusting the heating temperature.
- The lid is made of aluminum alloy, and the inner surface is finely turned and polished. It can be rotated horizontally clockwise by 70° along the vertical rotation axis, but do not use too much force to avoid bumping the pot wall. There are holes for adding resin, plasticizer and stabilizer on the cover.
- Users can arrange it according to their own needs. The center is a ventilation hole. In order to prevent personal accidents caused by the rotation of the stirring paddle when the pot lid is not properly covered, a safety limit switch is installed on the pot body. When the pot lid is not tightly covered, the switch is not turned on and the motor cannot be started.
Features of high speed and low speed Plastic PVC Mixer Machine：
- The hot-mixed liner is 10mm thick, and the bottom plate is 10mm thick [solid thickness, material SUS304, 2B, 10t]
- Sealing method: [four skeleton seals]
- Oil seal brand: [Taiwan TTO sealing ring]
- Bearing brand: [Wafangdian General Factory]
- Interlayer filler [10 thick] insulation cotton
- Hot-mixing rack: using [25MM] thick panel
- Three-way discharge valve [optional pneumatic three-way, pneumatic butterfly valve] butterfly idle three-way is not easy to leak powder or get stuck
- Electrical appliances [Delixi, Tianzheng, Schneider] can be selected according to specific requirements
- Frequency conversion [commonly used – Hailip, Robin Kang] can be selected according to specific requirements
- High-mix motor [Jiangsu Lido Motor] can be selected according to specific requirements.
Unit specifications of Plastic PVC Mixer Machine

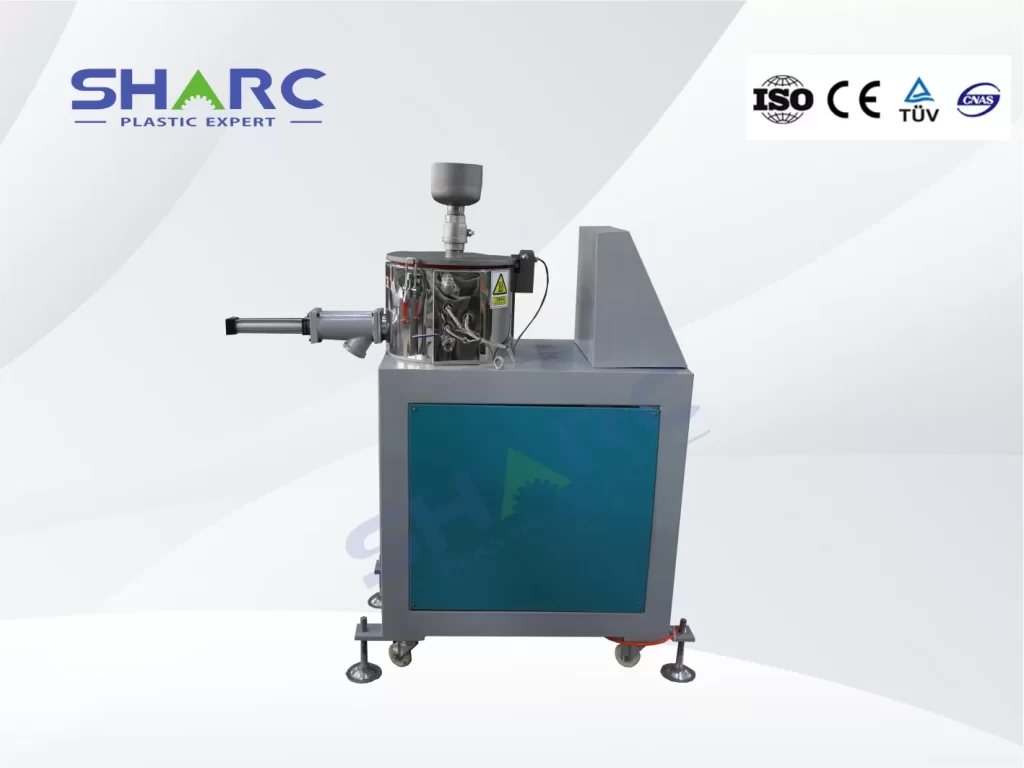

(New Design)Laboratory High Speed Plastic Mixer Machine
- Model: 5-100 L
- Power: 1.1kw-22kw
Laboratory High Speed Plastic Mixer Machine is one of the necessary equipment in plastic processing plants. It is widely used in plastic rubber, pharmaceutical, dye and other industries. According to the actual production formula of the product, all raw materials are added to the mixer for mixing, so that the materials can be fully stirred and then used for production. As a small plastic mixer, the Laboratory High Speed Plastic Mixer machine plays a huge role in production experiments and teaching. For example, before the production of PVC edge banding tapes, it is necessary to test the formula and colors before big capacity production, during that period, the importance of Laboratory High Speed Plastic Mixer Machine is presented.
PVC pulverizer machine
PVC pulverizer machine was formed in the early 1980s and has been continuously improved and updated. It has been in use until now. The model has evolved from SMF-400 to SMF-500, SMF-600, and SMF-800. Significant improvements have been made in the past, and the output of SHARC’s plastic pulverizer has also increased from the initial dozens of kilograms to hundreds of kilograms or even nearly 1 ton per hour, and the fineness has also developed from a fixed number to an adjustable one.
Twin screw Extruder
The Twin screw extruder is developed on the basis of the single-screw extruder. Due to its good feeding performance, mixing and plasticizing performance, exhaust performance, extrusion stability and other characteristics, it has been widely used in the production of extruded products. Forming processing.
