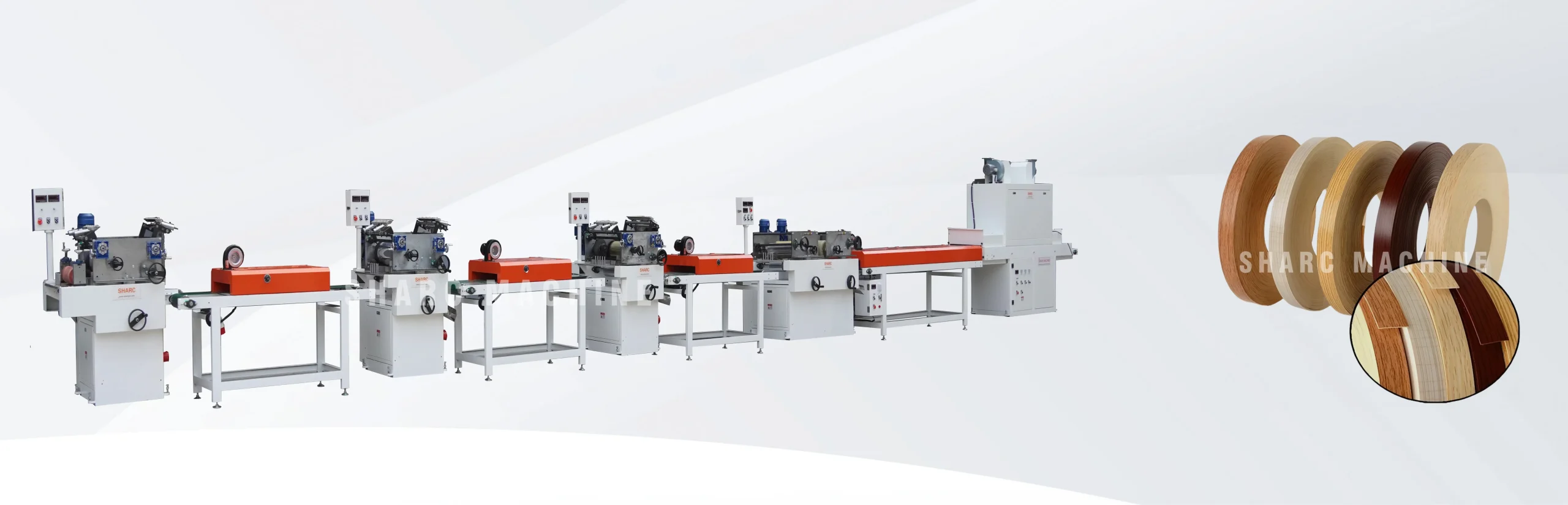

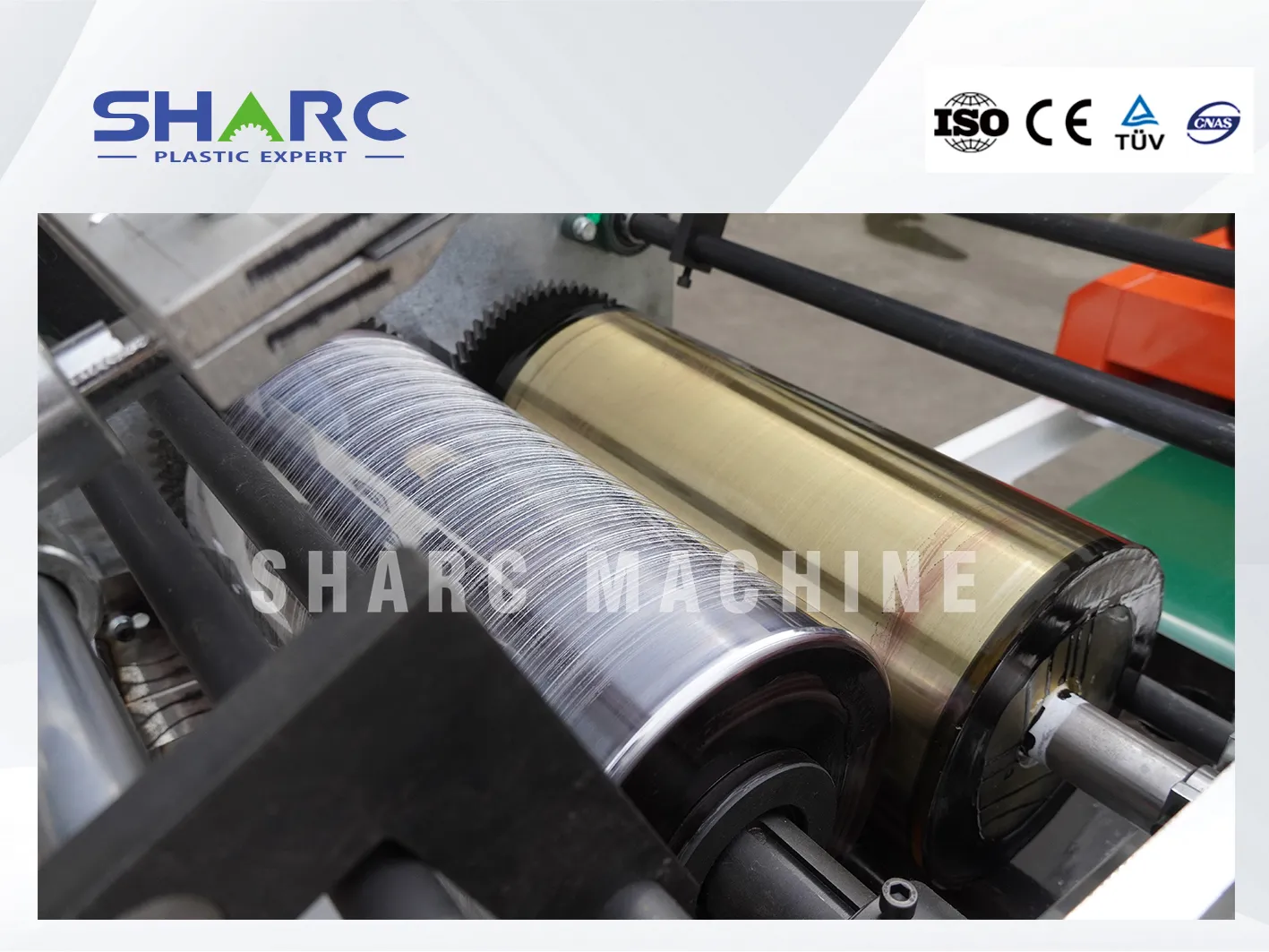

PVC Edge Band Printing Machine
PVC edge band printing machine can be used for paint and coat UV varnish on the surface of PVC edge banding tape. Both high glossy and matt surface can get from this machine.
PVC edge band printing machine is a device specially used for printing PVC edge banding strips. It mainly uses offline printing to add UV coating to the already produced PVC edge strips to improve its quality and appearance.

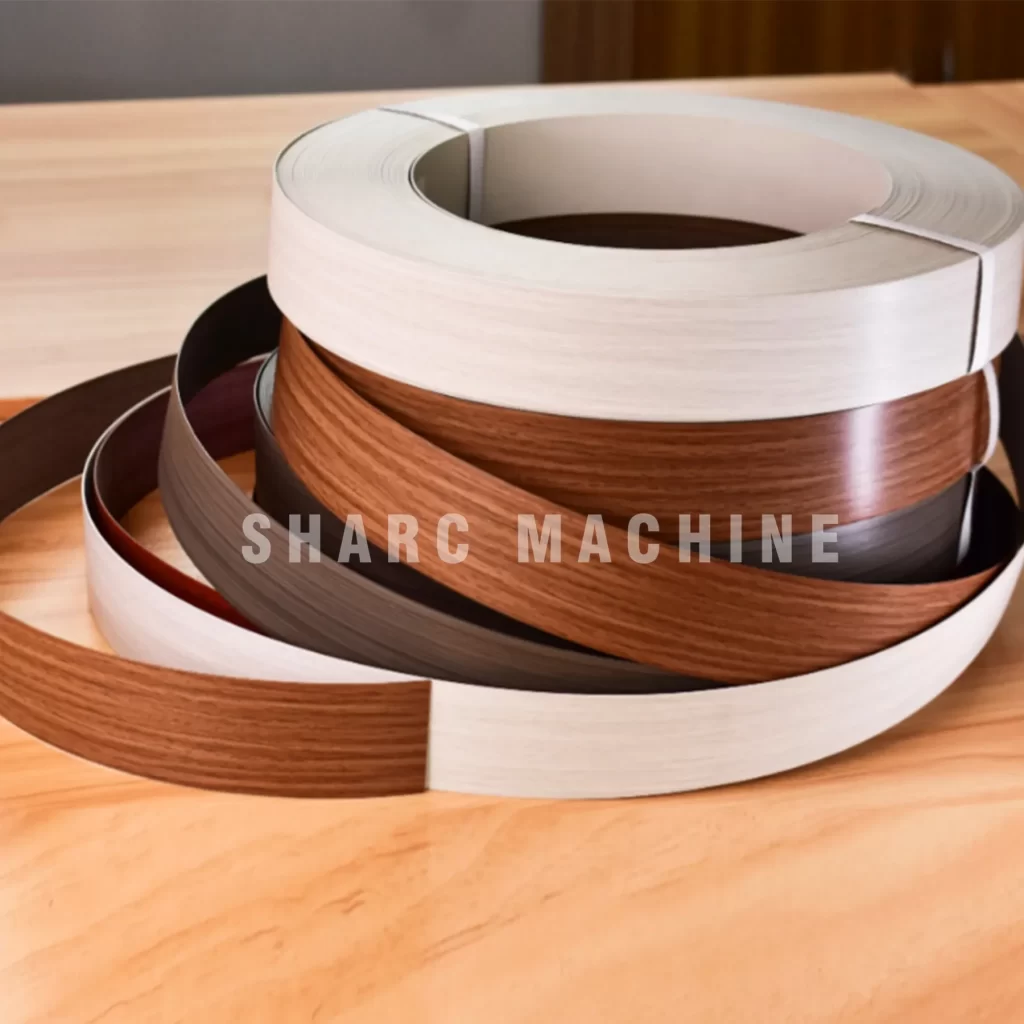

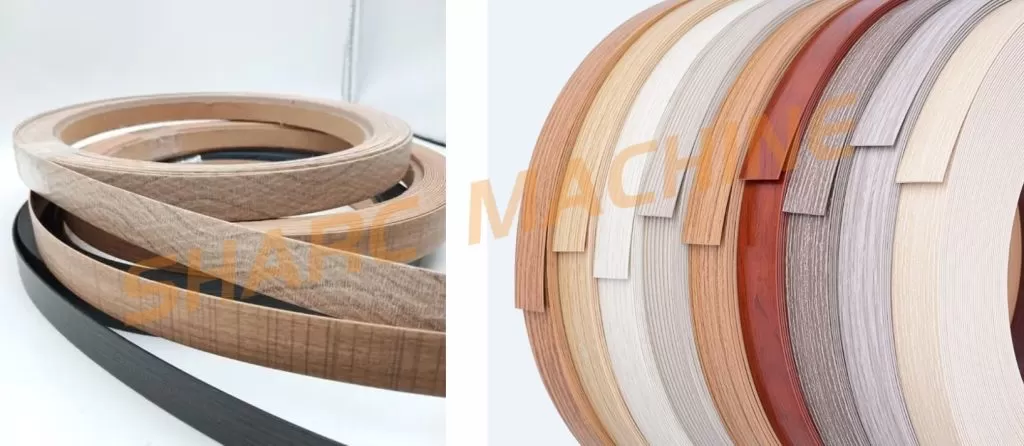

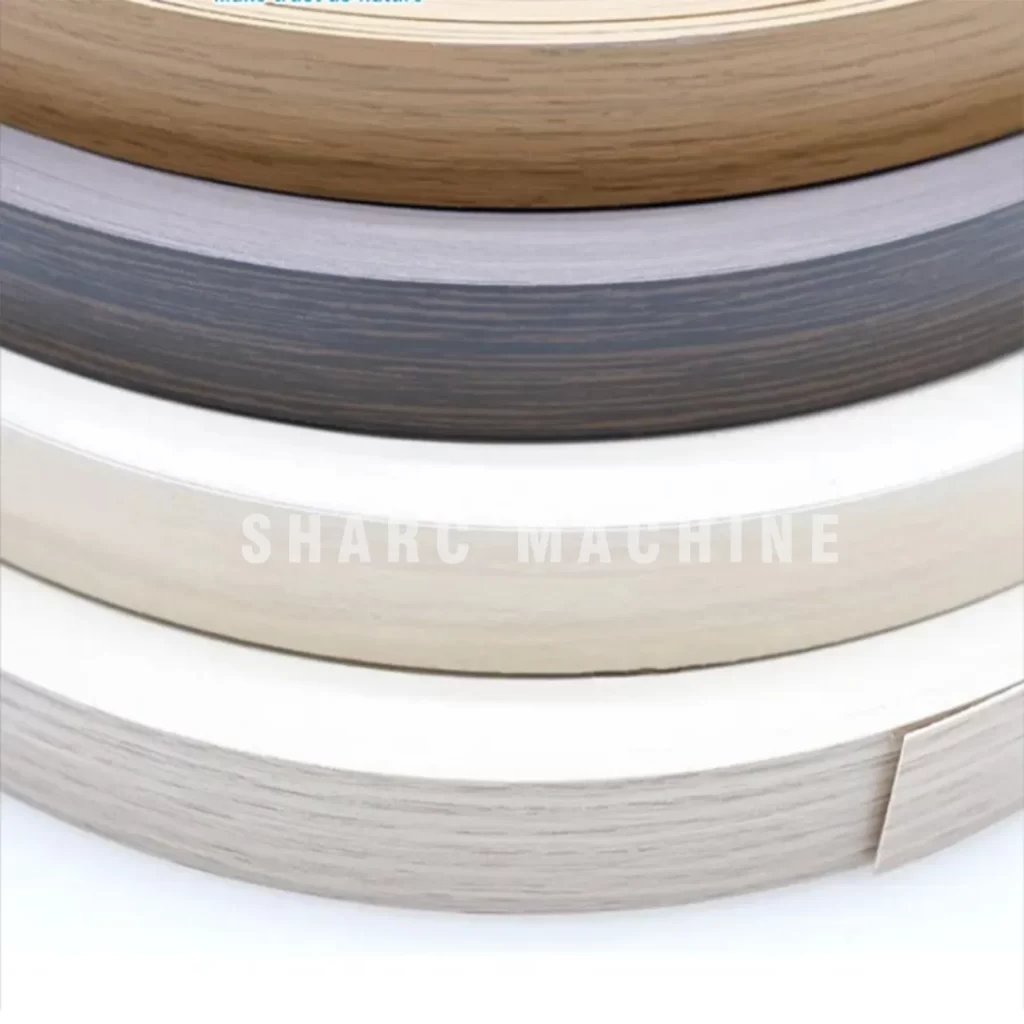

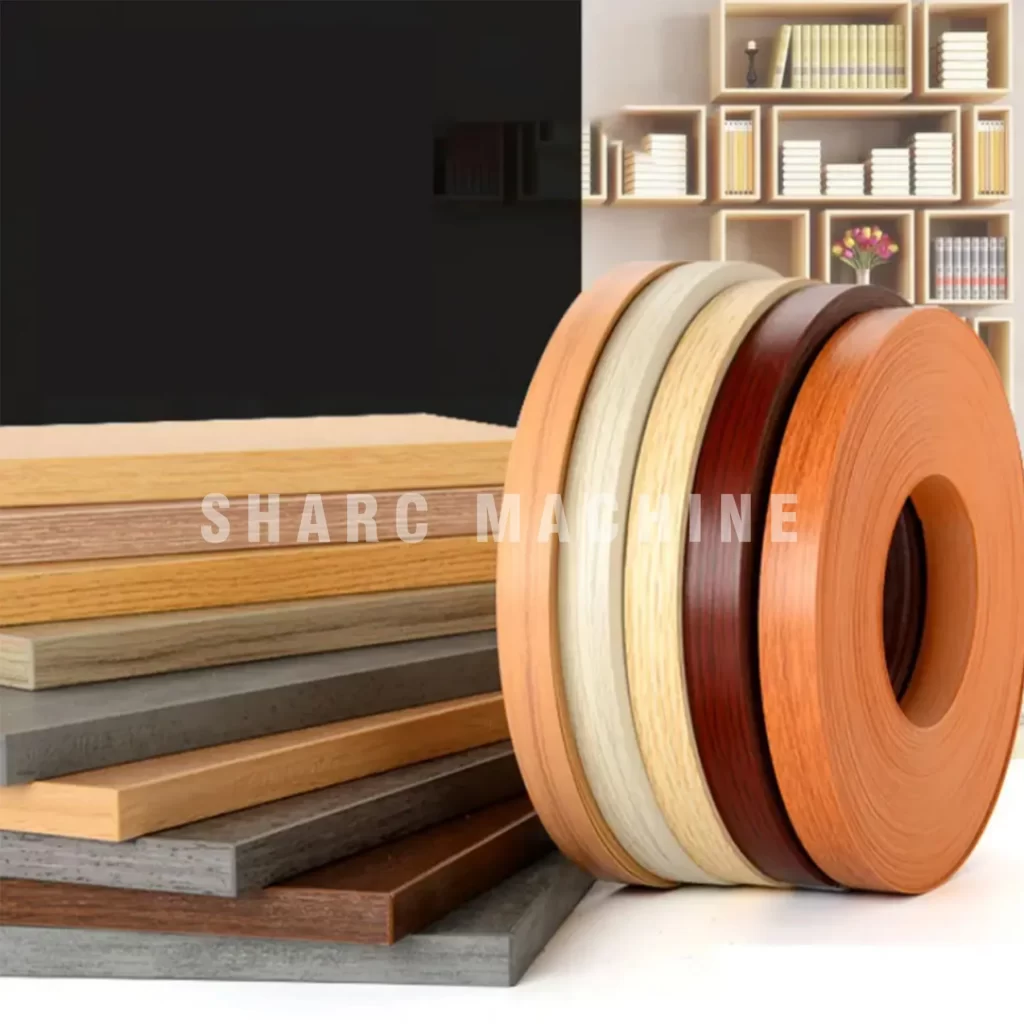

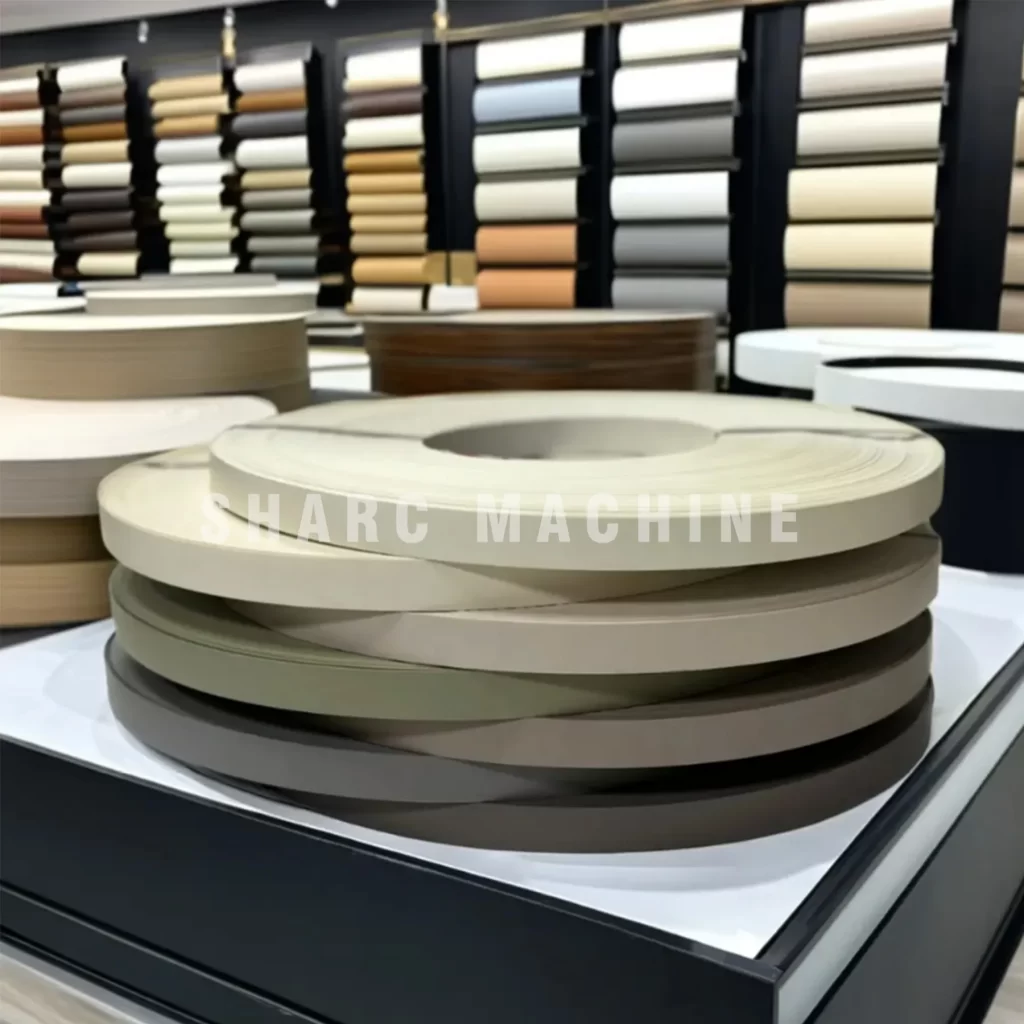

Application of PVC Edge Band Printing Machine
ParameterS
| Model | SEP-240 | SEP-400 | SEP-800 |
|---|---|---|---|
| Effective Width (mm) | 240 | 400 | 800 |
| Line Speed (m/min) | 0–35 | ||
| Effective Thickness (mm) | 0–80 | ||
| Power (kW) | 22 | 30 | 45 |
Equipment advantages of PVC edge band printing machine:
- Efficient production: The PVC edge band printing machine UV coating has high-speed printing capabilities and can quickly complete large-volume printing tasks and improve production efficiency.
- Quality assurance: Using UV coating technology, the printed PVC edge strips have excellent properties such as wear resistance, waterproofing, and weather resistance, ensuring the quality and service life of the product.
- Cost saving: Offline printing can save human resources, and the rapid curing of UV coating also reduces production time and costs.
- Flexibility: The PVC edge band printing machine can adjust the printing parameters and spraying methods as needed to adapt to different product requirements and customer needs.
All in all, the PVC edge band printing machine brings convenience and advantages to the production of PVC edge strips through efficient printing methods and quality-assured coating technology.
Working principle of PVC edge band printing machine:
- Preparation: Load the PVC edge banding strip to be printed into the feeding device of the printing machine, and adjust the parameters of the printing machine.

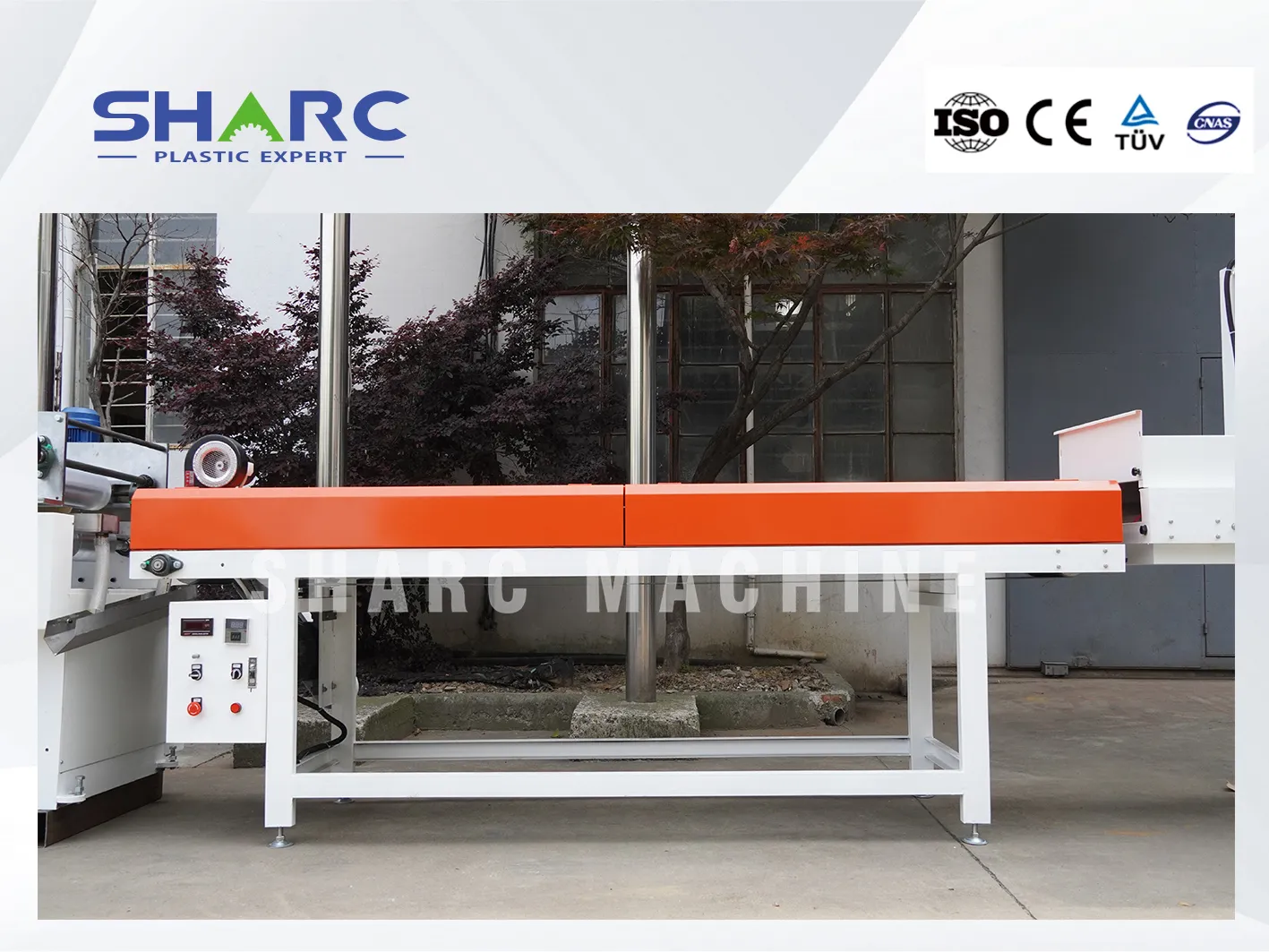

- Strip transfer: The PVC edge band printing machine takes out the PVC edge banding strip from the feeding device and transfers it to the printing area.

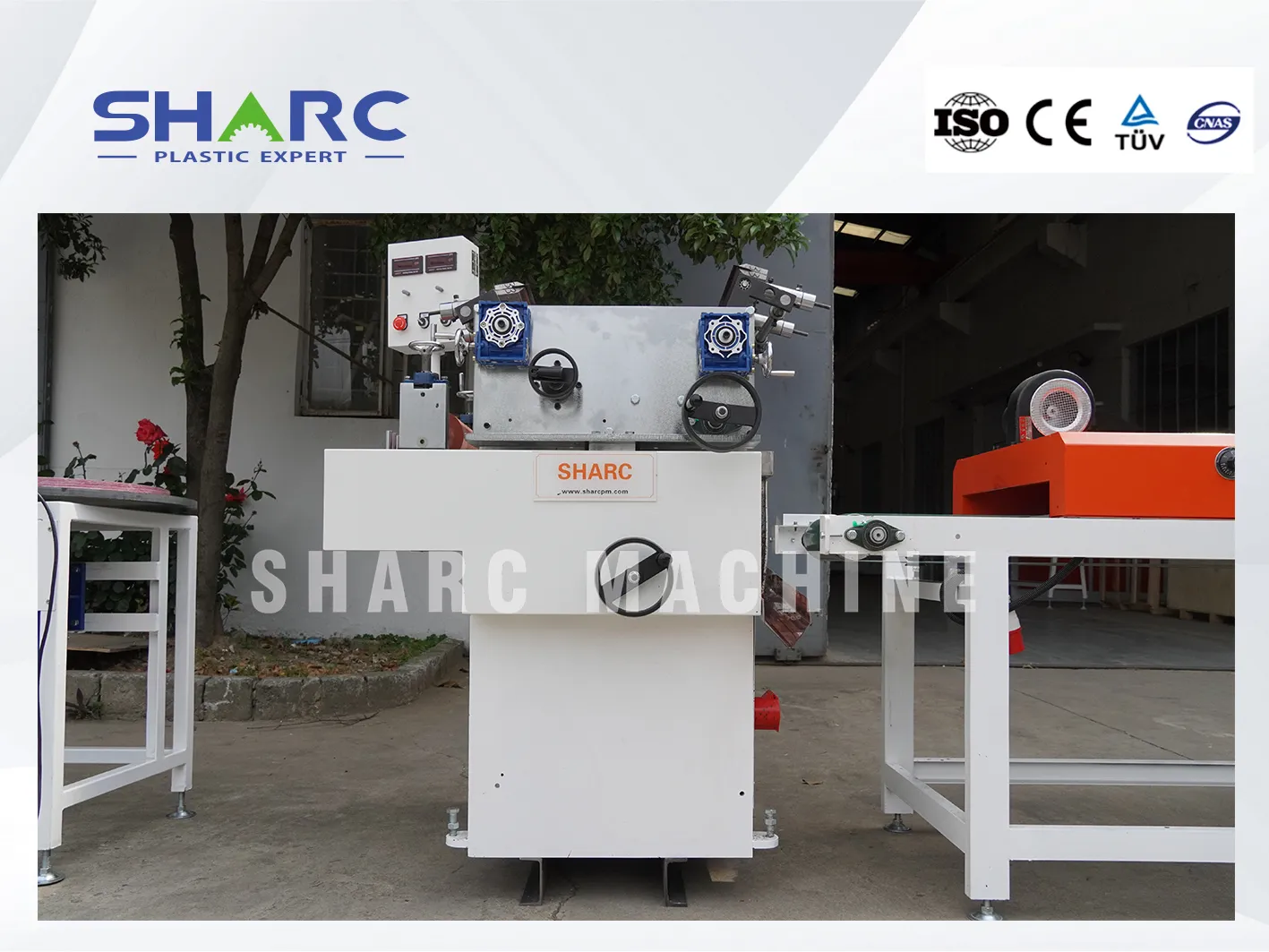

- Spraying: The spraying system sprays UV paint evenly on the surface of the PVC edge banding strip through the nozzle.

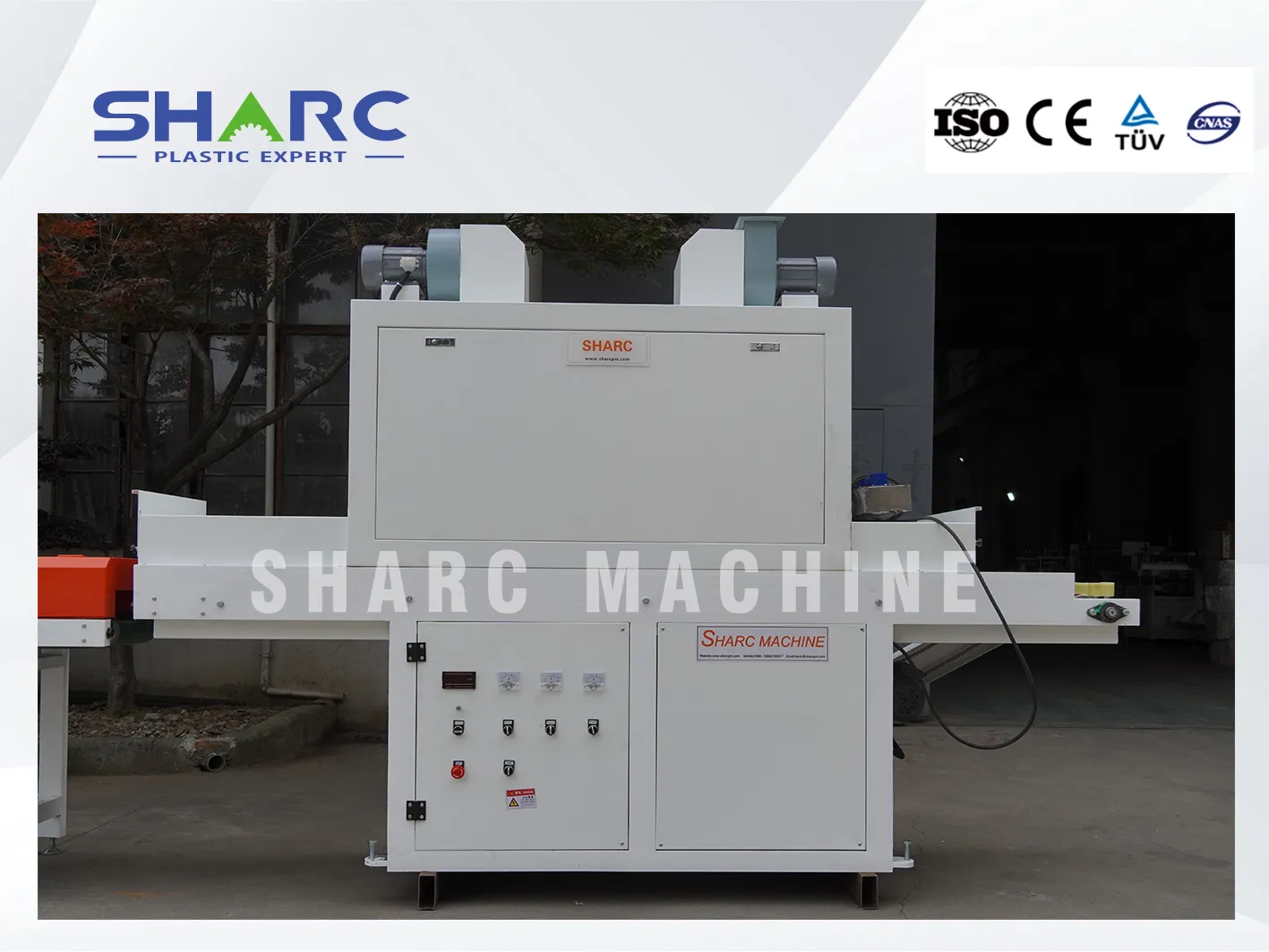

- Curing: The printed PVC edge strip is irradiated with ultraviolet light through an ultraviolet curing system to quickly dry and solidify the coating.
- Collection and packaging: The cured PVC edge strips are collected centrally through the collection device, packaged and stored.
