PVC Edge Band Lab Roller Mill
For the production of PVC edge band tapes, PVC Edge Band Lab Roller Mill is mainly used for small-batch material research and development and production, as well as the debugging of new material formulas.Zhangjiagang Sharc Machine Co., Ltd is the manufacturer of various types PVC edge band tape making machinery including PVC edge band extrusion line, PVC mixer machines, lab mixer machine, PVC Edge Band Lab Roller Mill, lab extruder machine, slitting machine, winding machines, primer coating machines, printing machines etc.
ParameterS
| No. | Item | Specification |
|---|---|---|
| 1 | Loading Capacity (kg) | 0.5–1 |
| 2 | Roller Diameter (mm) | 110 |
| 3 | Working Surface Length (mm) | 330 |
| 4 | Adjustment Distance (mm) | 0–3 or customized |
| 5 | Heating Method | Electric heating, 2.5 kW × 2 |
| 6 | Roller Temperature | Adjustable |
| 7 | Overall Dimensions (mm) | 750 × 350 × 950 |
| 8 | Machine Weight (kg) | 300 |
| 9 | Speed (rpm) | 20 |

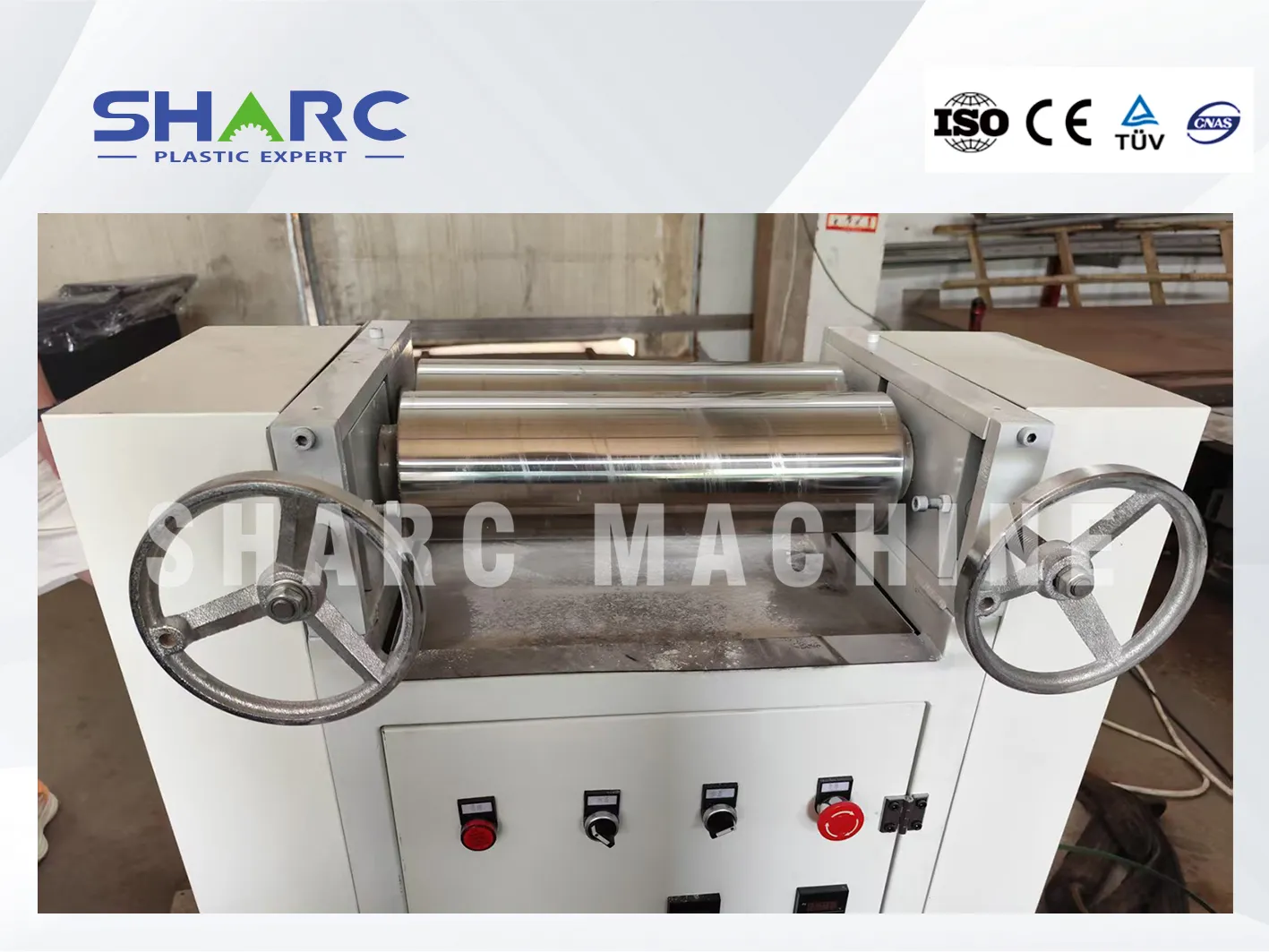

Structure of PVC Edge Band Lab Roller Mill:

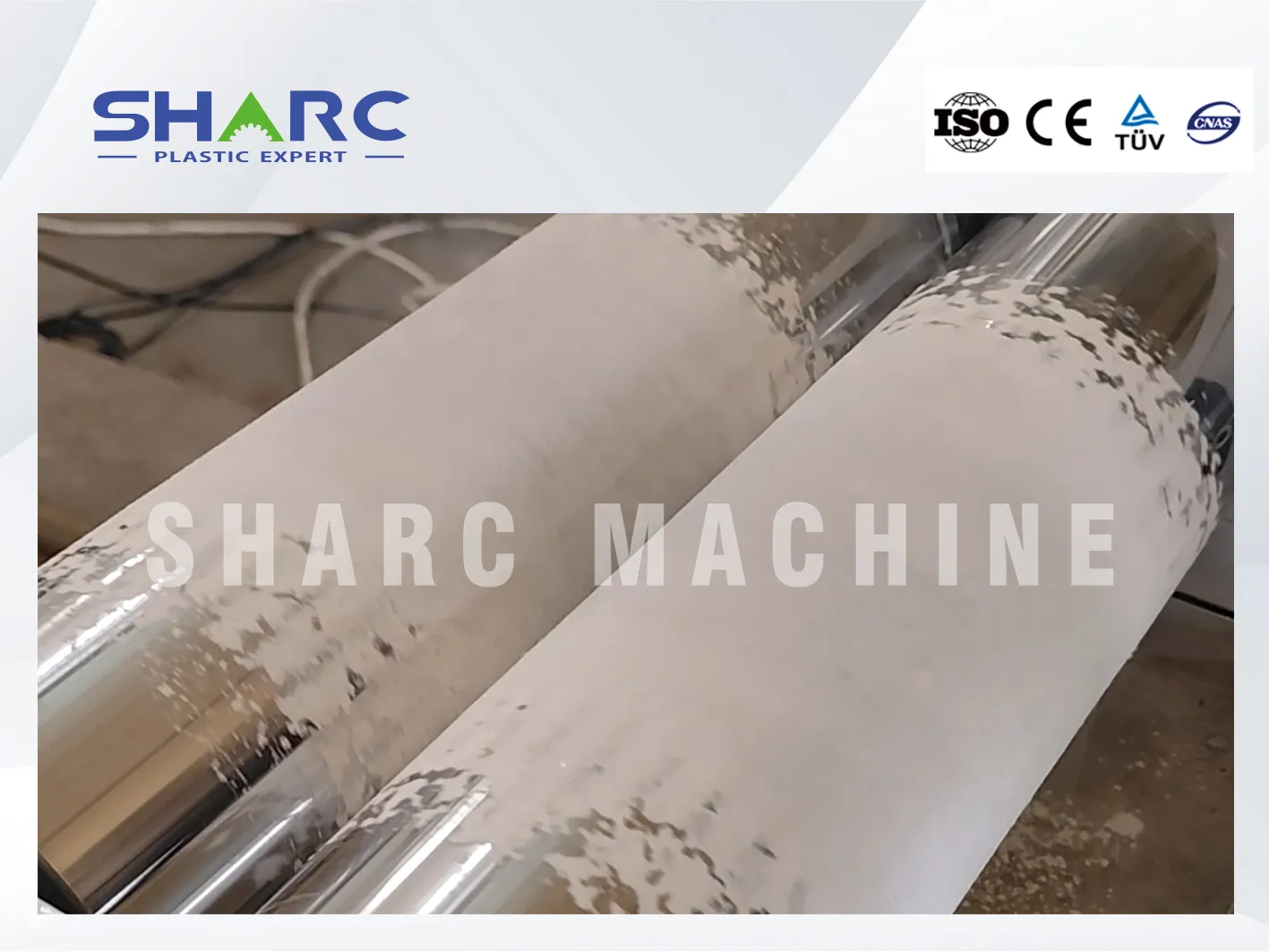

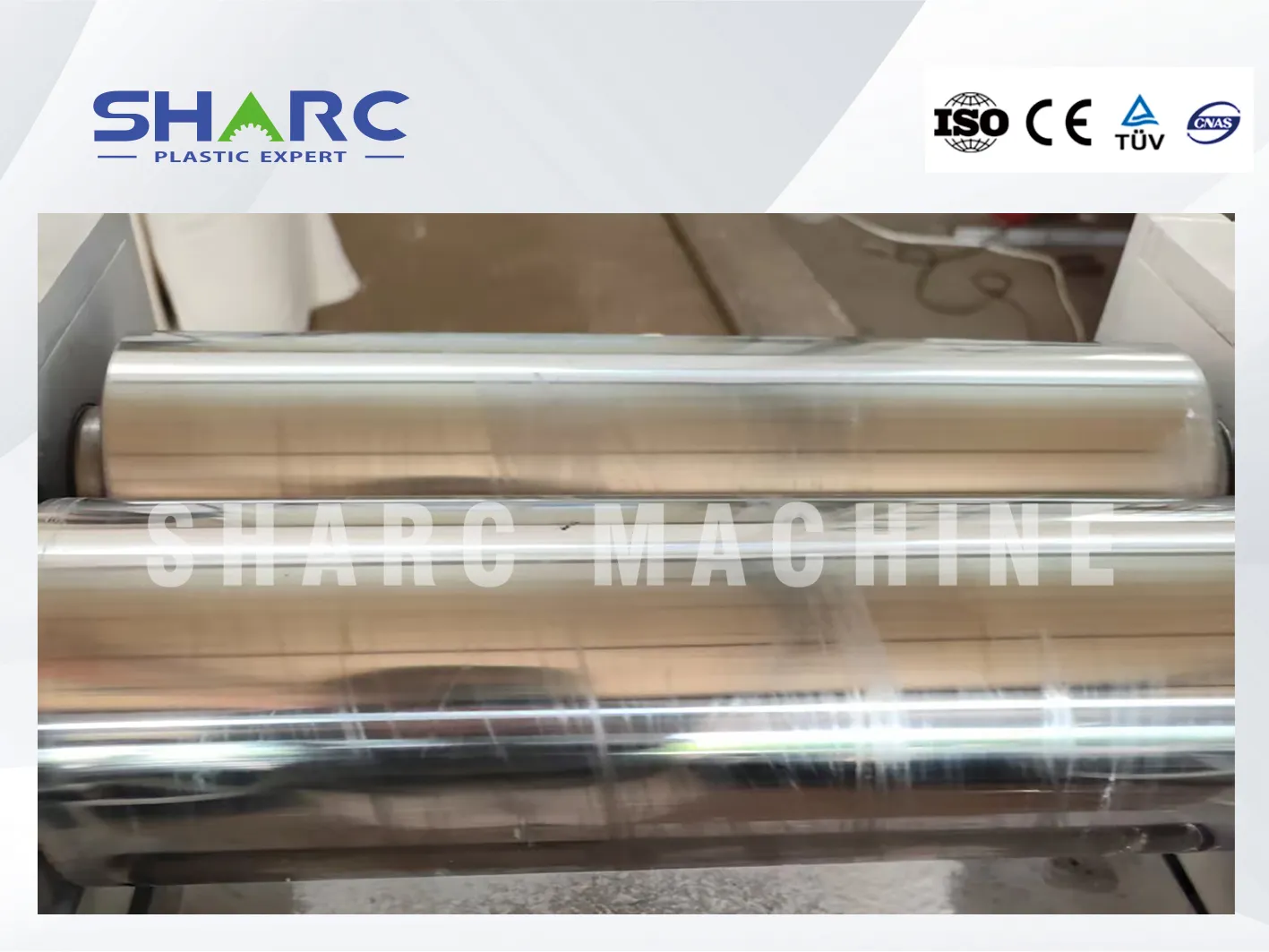

- Roller: Two rollers rotating relative to each other are the core components of the mixing mill, processing materials through friction.
- Transmission system: The rollers are driven to rotate by the motor, and the speed of the rollers is adjusted by the speed change device.
- Distance adjustment device: The distance between the two rollers can be adjusted to control the thickness of the material.
- Heating and cooling system: The rollers can be heated or cooled to meet the processing requirements of different material
- Emergency brake device: The equipment can be stopped quickly in an emergency to ensure the safety of the operator
PVC Edge Band Lab Roller Mill play a vital role in the production process, including:
- Formulation development: PVC Edge Band Lab Roller Mill are used to develop new rubber or plastic formulations, testing and optimizing the performance of materials by adjusting the ratio of different components.
- Small batch mixing: PVC Edge Band Lab Roller Mill can hand le small batches of materials, which is crucial for the experimental and R&D stages because it allows researchers to test formulations without generating a lot of waste.
- Mixing uniformity: The mixer ensures uniform mixing of materials through repeated rolling and folding operations, which is crucial for the performance consistency of the final product.
- Temperature control: PVC Edge Band Lab Roller Mill are usually equipped with precise temperature control systems that can simulate the mixing behavior of materials under different temperature conditions, helping researchers understand the performance of materials at different temperatures.
- Material property analysis: By observing the behavior of materials during the mixing process, researchers can analyze the fluidity, viscosity and other properties of the materials to provide a basis for formula adjustments.
- Color and additive dispersion: PVC Edge Band Lab Roller Mill can help researchers evaluate the dispersion of colors and additives in materials to ensure uniform color and stable performance of the final product.
- Physical property testing: During the mixing process, researchers can take samples for physical property testing, such as tensile strength, hardness, etc., to evaluate the effectiveness of the formula.
- Process parameter optimization: The PVC Edge Band Lab Roller Mill can be used to determine the optimal mixing time, temperature, pressure and other process parameters to provide a basis for large-scale production.
- Quality control: The PVC Edge Band Lab Roller Mill can be used to test the quality and consistency of raw materials to ensure that the materials used for production meet specific quality standards.
- Fault diagnosis: If there is a problem in the production process, the PVC Edge Band Lab Roller Mill can be used to simulate production conditions, help diagnose the cause of the problem, and test solutions.
- Education and training: The PVC Edge Band Lab Roller Mill is also an education and training tool to help students and new employees understand the principles and operating techniques of mixing.
