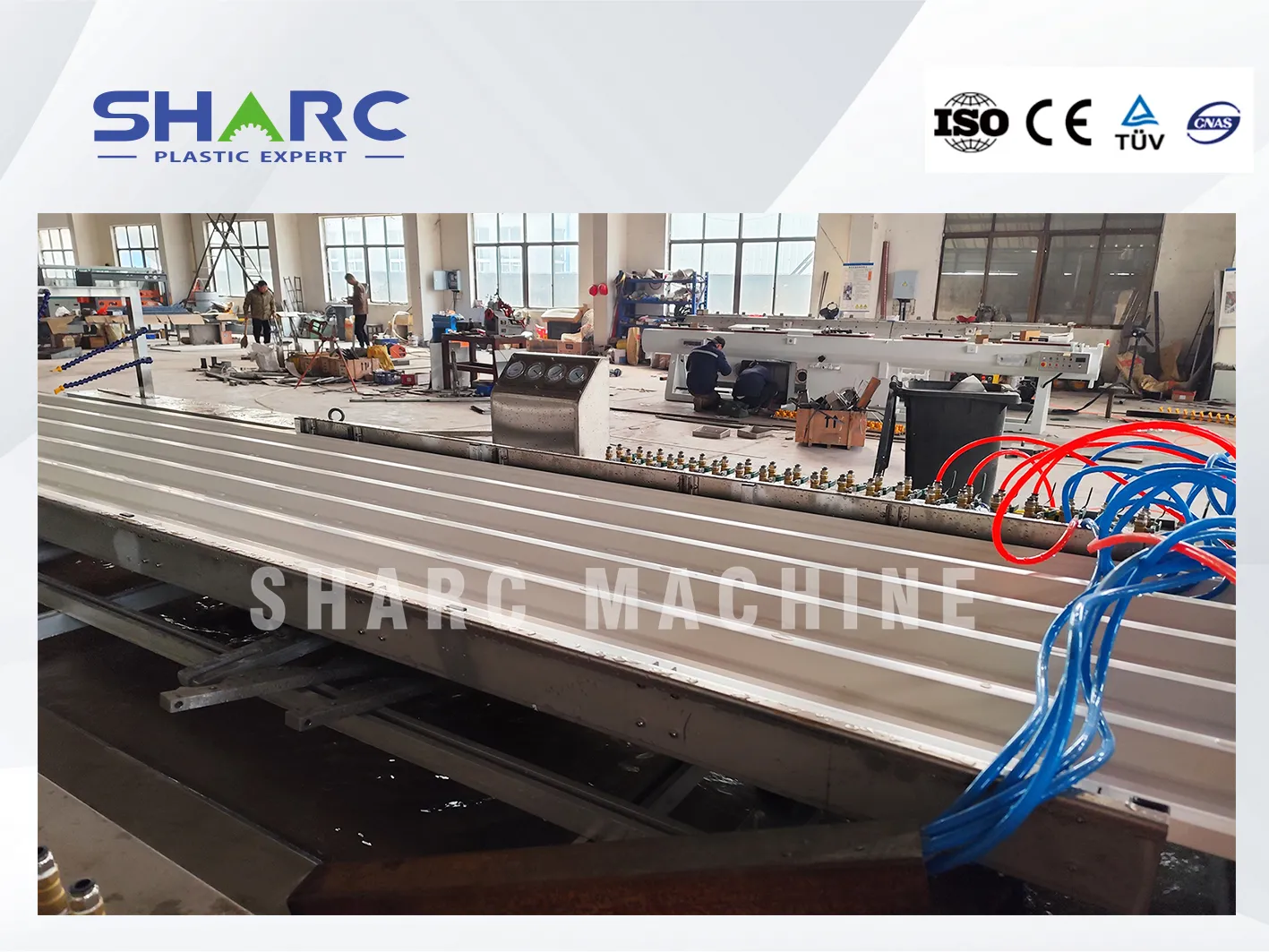

PVC Roofing Sheet Manufacturing Line
At the forefront of today’s building materials manufacturing, the PVC Roofing Sheet Manufacturing Line stands out with its excellent performance and innovative technology, bringing efficient, high-quality and environmentally friendly roof panel production solutions to the construction industry.

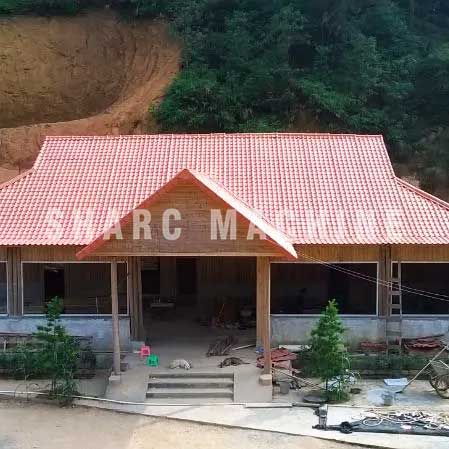

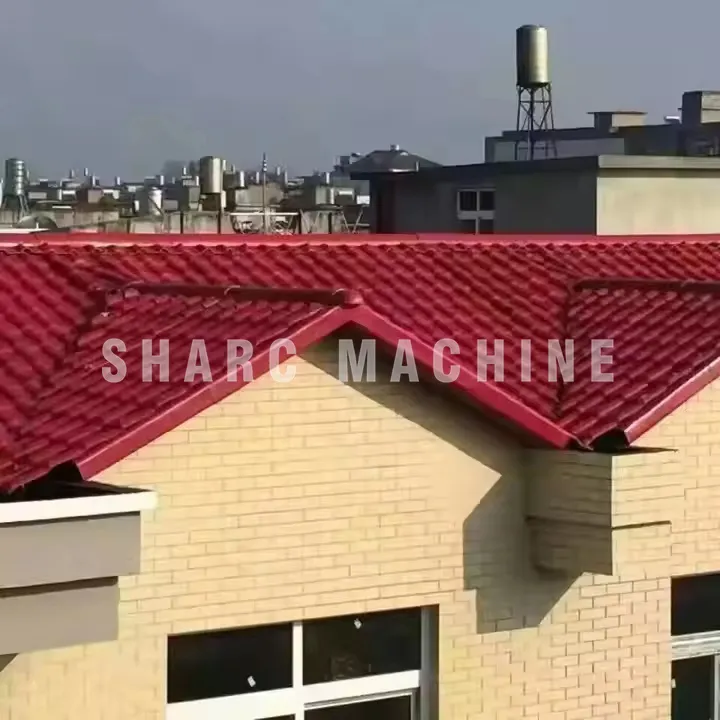

Application of PVC Roofing Sheet Manufacturing Line
ParameterS
| Extruder Model | Power (kW) | Output (kg/h) |
|---|---|---|
| SJSZ-80/156 | 55 / 75 | 500–625 |
| SJSZ-80/156 + SJ-45 / 55 / 65 | 55 / 75 + 11 / 15 / 15 | 500–625 |
PVC Roofing Sheet Manufacturing Line precise mechanical structure and core components
- The PVC Roofing Sheet Manufacturing Line combines the exquisite design of mechanical engineering with advanced manufacturing technology. Its core structure includes a high-performance extrusion unit, a special molding mold, a stable traction system and an intelligent cutting device.

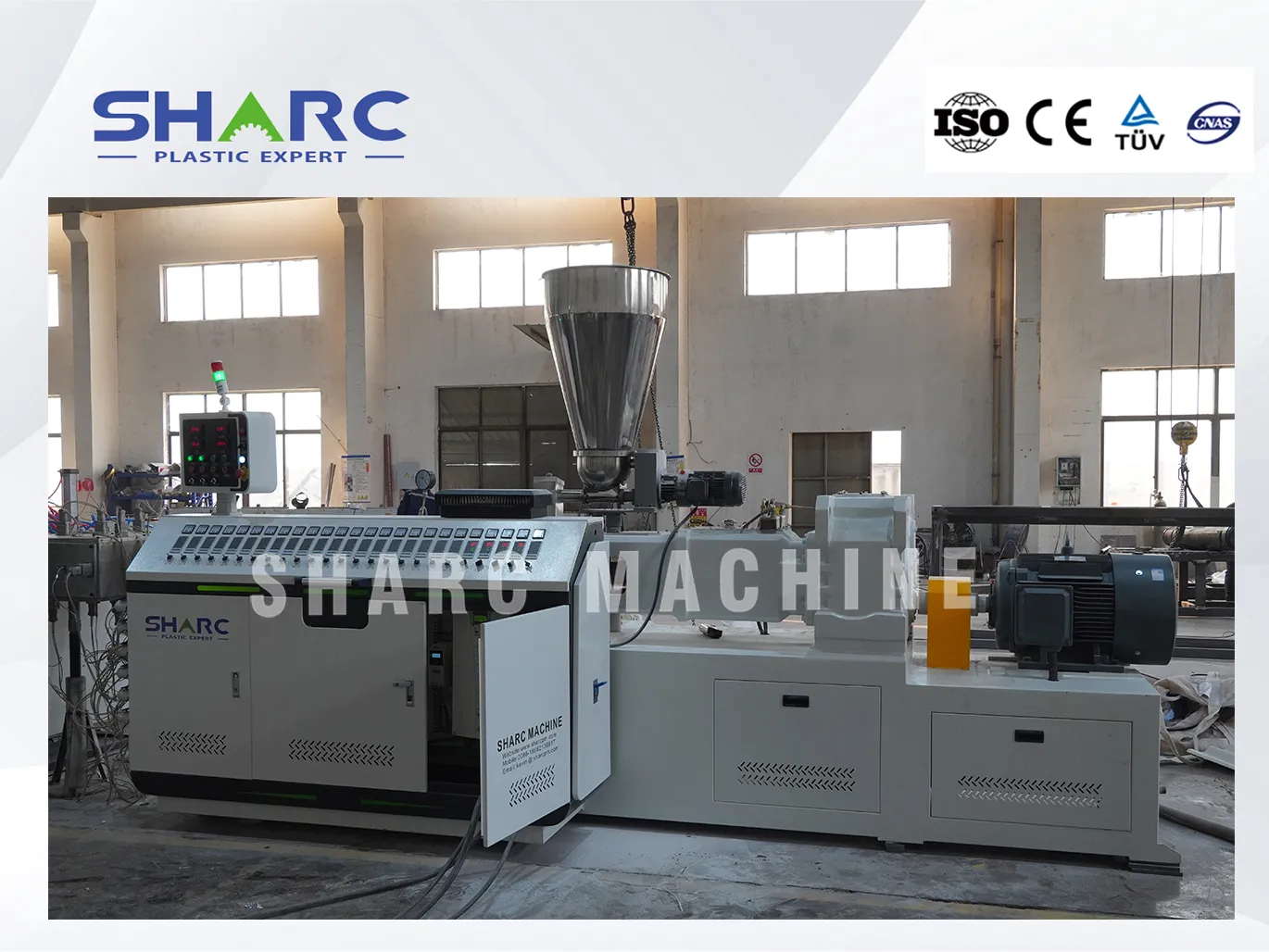

- As the key part of material conversion, the extrusion unit is equipped with a screw with a large aspect ratio and a barrel with an efficient heating and cooling system. The unique design of the screw ensures that the PVC raw materials can be fully melted, mixed and plasticized in the barrel, providing a uniform and stable melt for the subsequent molding process. The advanced heating and cooling system can accurately control the temperature of each section of the barrel, so that the raw materials can be processed in the best thermal environment, effectively improving product quality and reducing energy consumption.

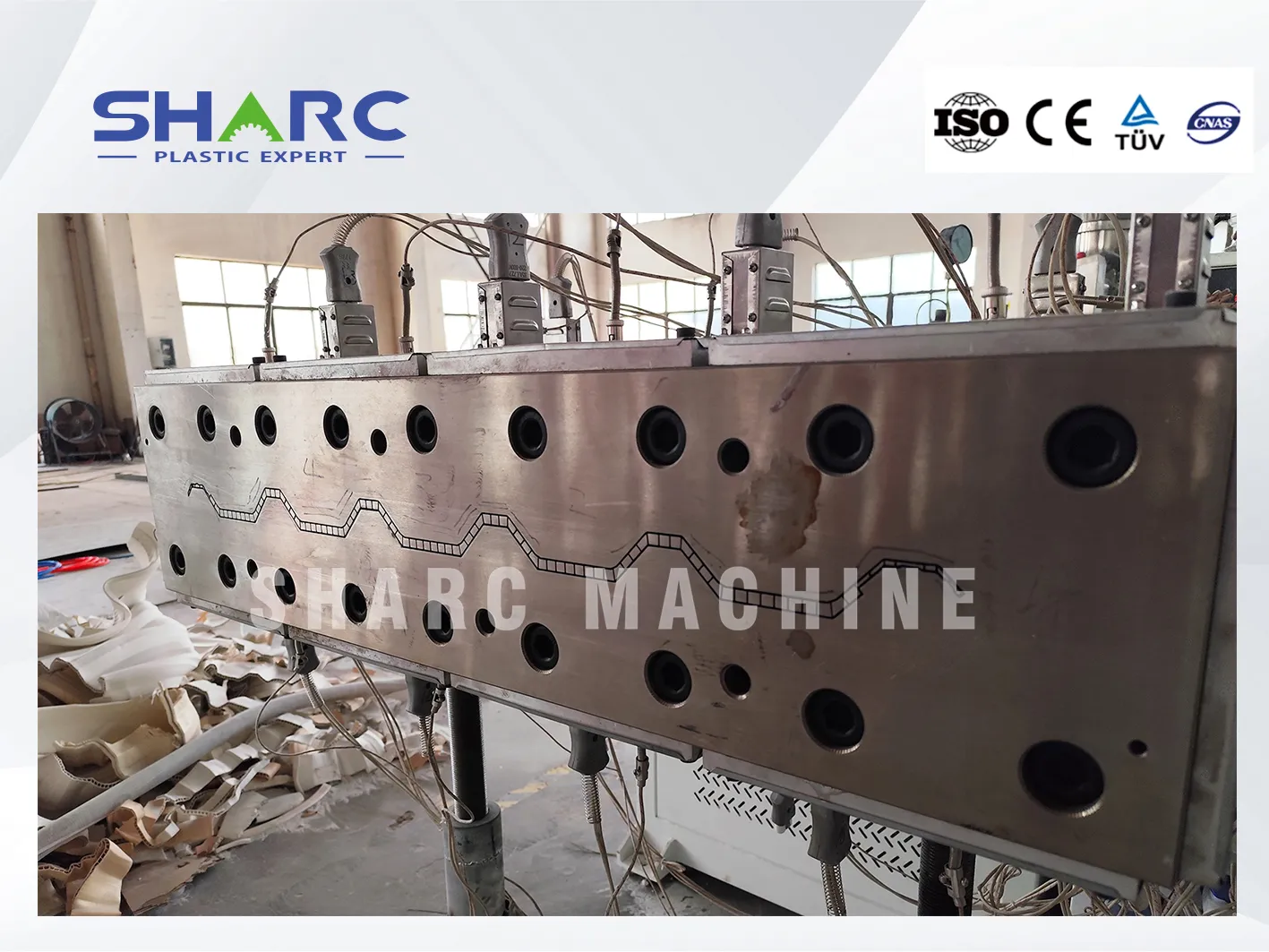

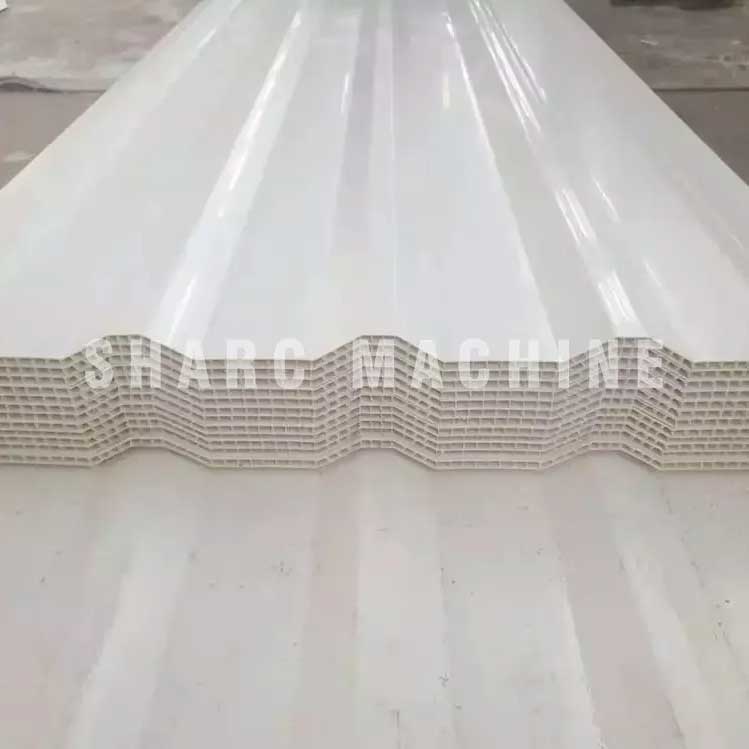

- The molding mold is the soul of this PVC Roofing Sheet Manufacturing Line. It uses high-precision CNC machining technology to ensure the dimensional accuracy and surface finish of the mold cavity. The flow channel inside the mold is optimized by fluid mechanics simulation, so that the PVC melt can evenly fill the cavity during the molding process, thereby producing a roof panel with a regular corrugated shape and uniform wall thickness. This optimized design not only improves the appearance quality of the product, but also enhances the mechanical properties and structural stability of the roof panel.

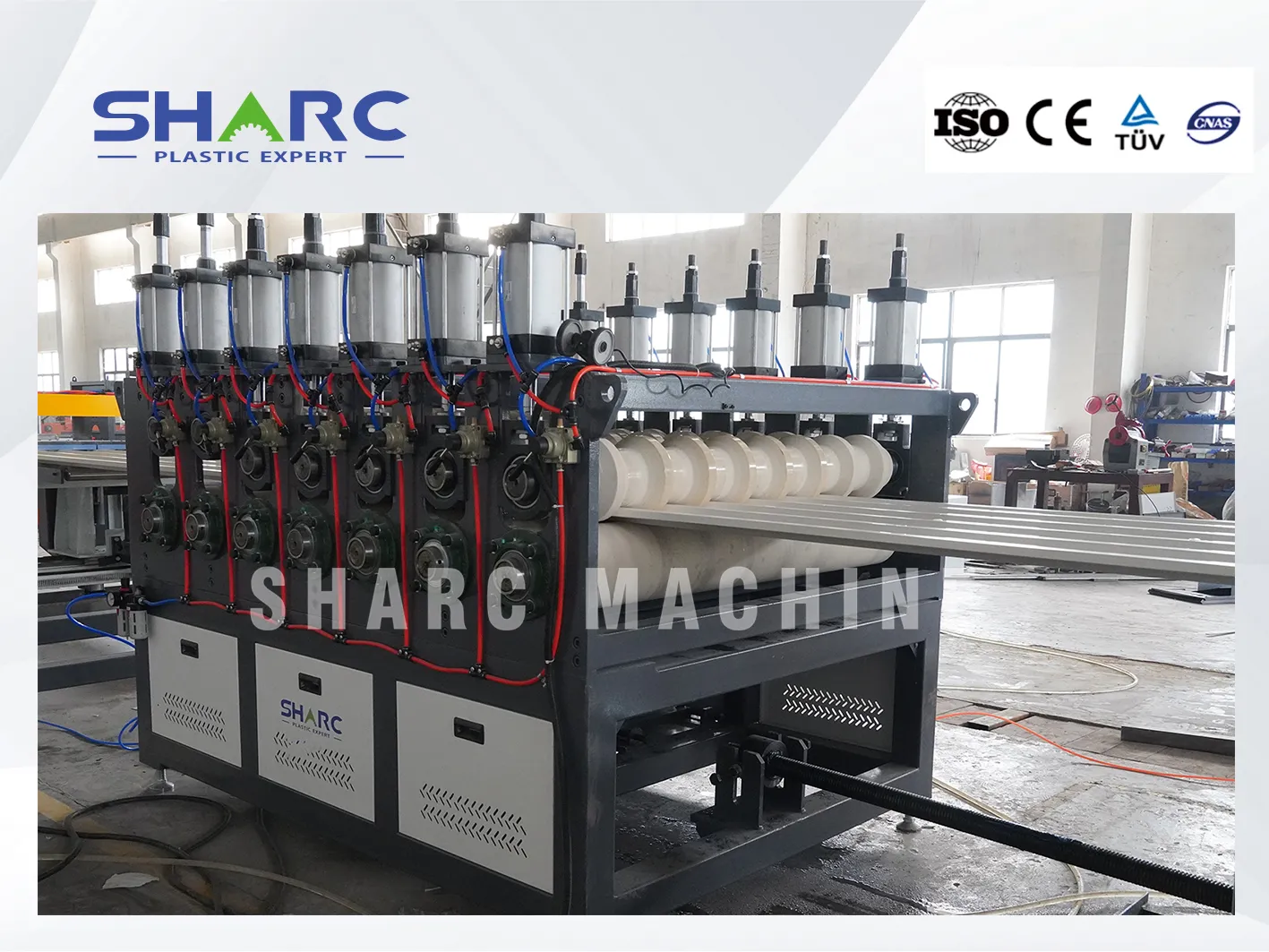

- In this PVC Roofing Sheet Manufacturing Line, the traction system uses servo motor drive and precise tension control technology. The servo motor can accurately adjust the traction speed according to the production process requirements to ensure that the roof panel is pulled forward at a constant speed after forming, avoiding tensile deformation or uneven thickness caused by speed fluctuations. The tension control system monitors and adjusts the tension of the roof panel in real time during the traction process to ensure its smooth operation on the entire production line, providing a good foundation for subsequent cutting processes.
- In this PVC Roofing Sheet Manufacturing Line, the intelligent cutting device is equipped with high-resolution sensors and high-speed cutting tools. The sensor can accurately detect the travel length of the roof panel. When the preset cutting length is reached, the control system quickly instructs the cutting tool to move. The cutting tool is made of carbide, which is sharp and durable. With the advanced pneumatic or hydraulic drive system, the cutting action of the roof panel can be completed in an instant. The cutting surface is flat and smooth, without burrs or deformation, ensuring the dimensional accuracy and appearance quality of the product.
Unit specifications of PVC Roofing Sheet Manufacturing Line

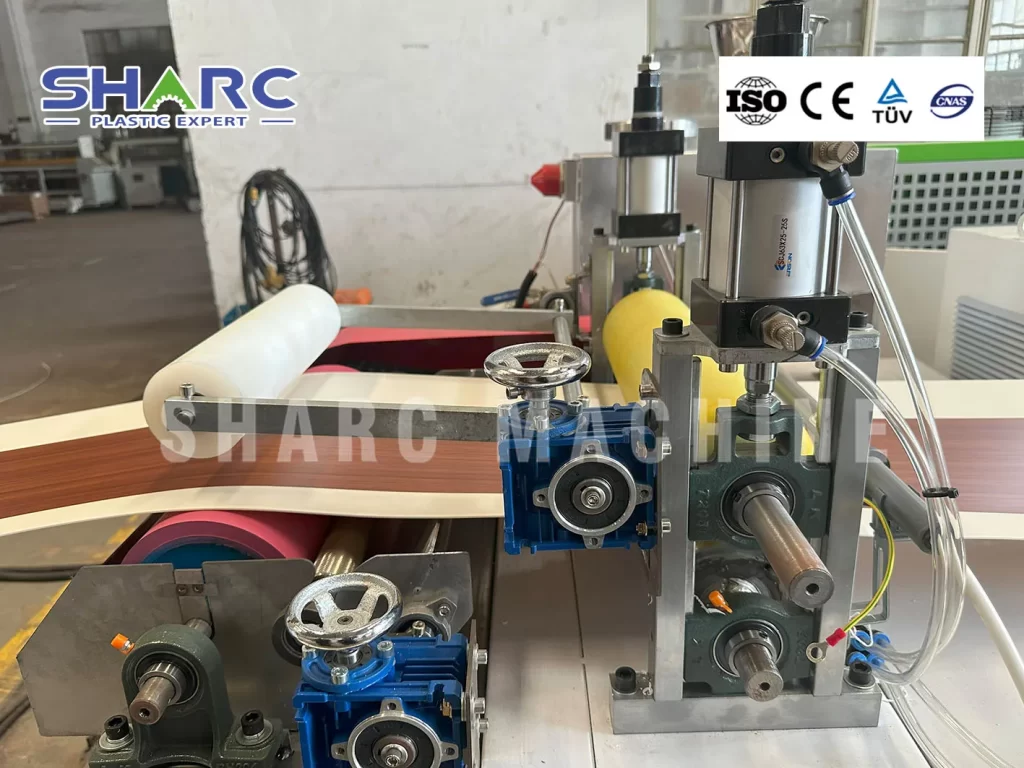

200mm Edge Band Sheet Making Machine
- PVC sheet width: 200-1300mm
- Thickness: 0.4-3mm
- Output: 125-400kg/h
- Machine model: SJZ55/110, SJZ65/132, SJZ/80/156
- Required materials format: by powder
- Main Motor power: 22-55kw
Zhangjiagang sharc machine Co.,ltd has different types of 200mm edge band sheet making machine, according to clients’ requirement on capacity, Sharc will suggest the most suitable machines. We offer turnkey solution of three calender plastic edge banding extrusion line including raw materials, machinery, engineer, training, installation, after-sales and etc.

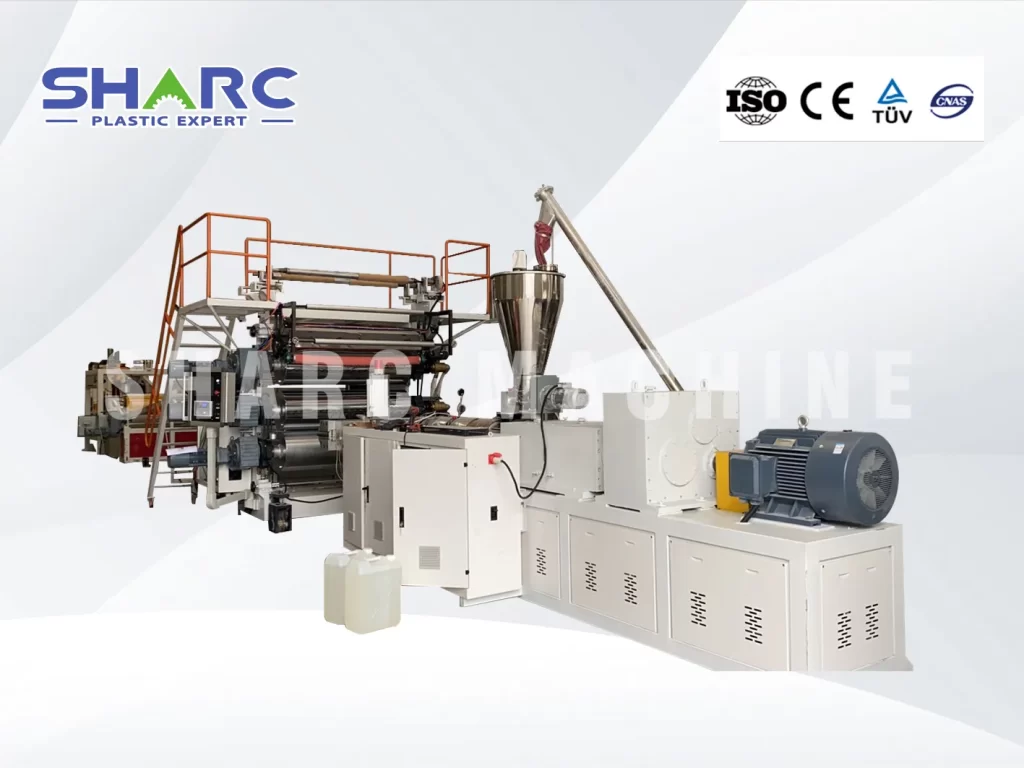

PVC Marble Sheet Production Line
- PVC marble sheet size: 1220*2440mm (4*8 feet)
- Thickness: 1-8mm
- Production capacity: 400-700kg/h
- Main motor power: 75kw-90kw
As a leading manufacturer and supplier, Sharc Machine Company offers a wide selection of automatic PVC Marble Sheet Production Line including PVC Marble Sheet Production Line, PVC mixer machine, UV coating machine for PVC marble sheet and recycling machines.

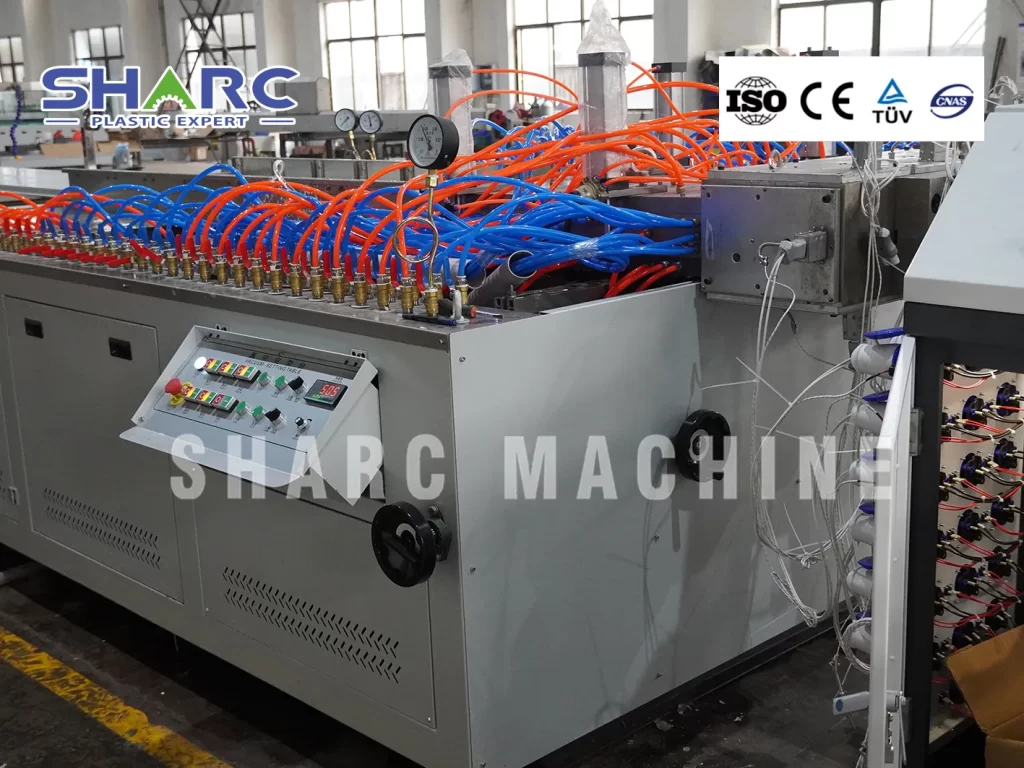

PVC Door Panel Production Line
Width of PVC door board: 500mm-1300mm.
Required materials of production PVC door board: PVC resin+Calcium carbonate+additives.
The capacity of PVC door panel production line: 5-16 tons per 24 hours
