PVC Marble Sheet Making Machine
As a leading manufacturer and supplier, Sharc Machine Company offers a wide selection of automatic PVC marble sheet making machinery including PVC marble sheet making machine, PVC mixer machine, UV coating machine for PVC marble sheet and recycling machines.

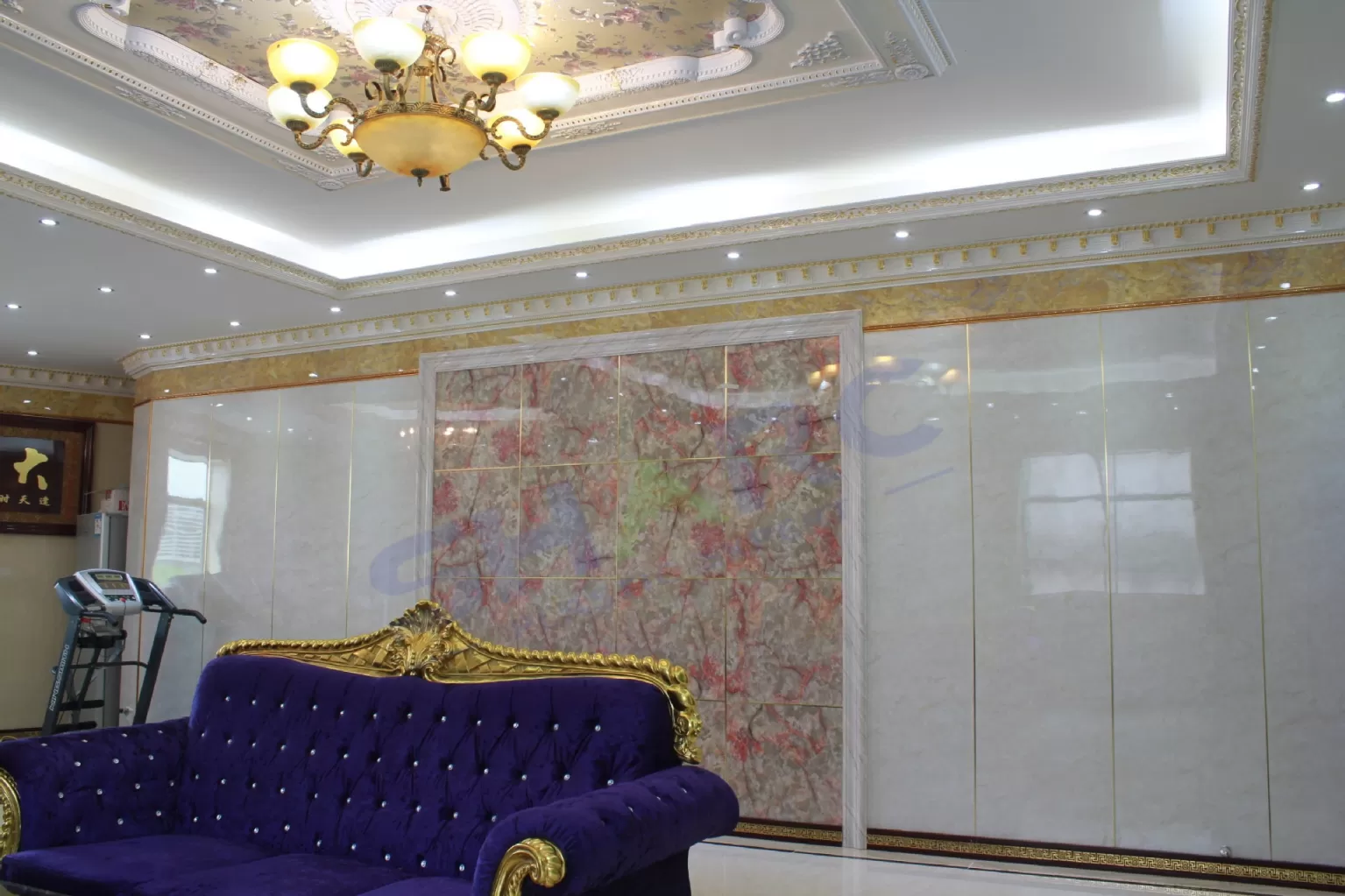

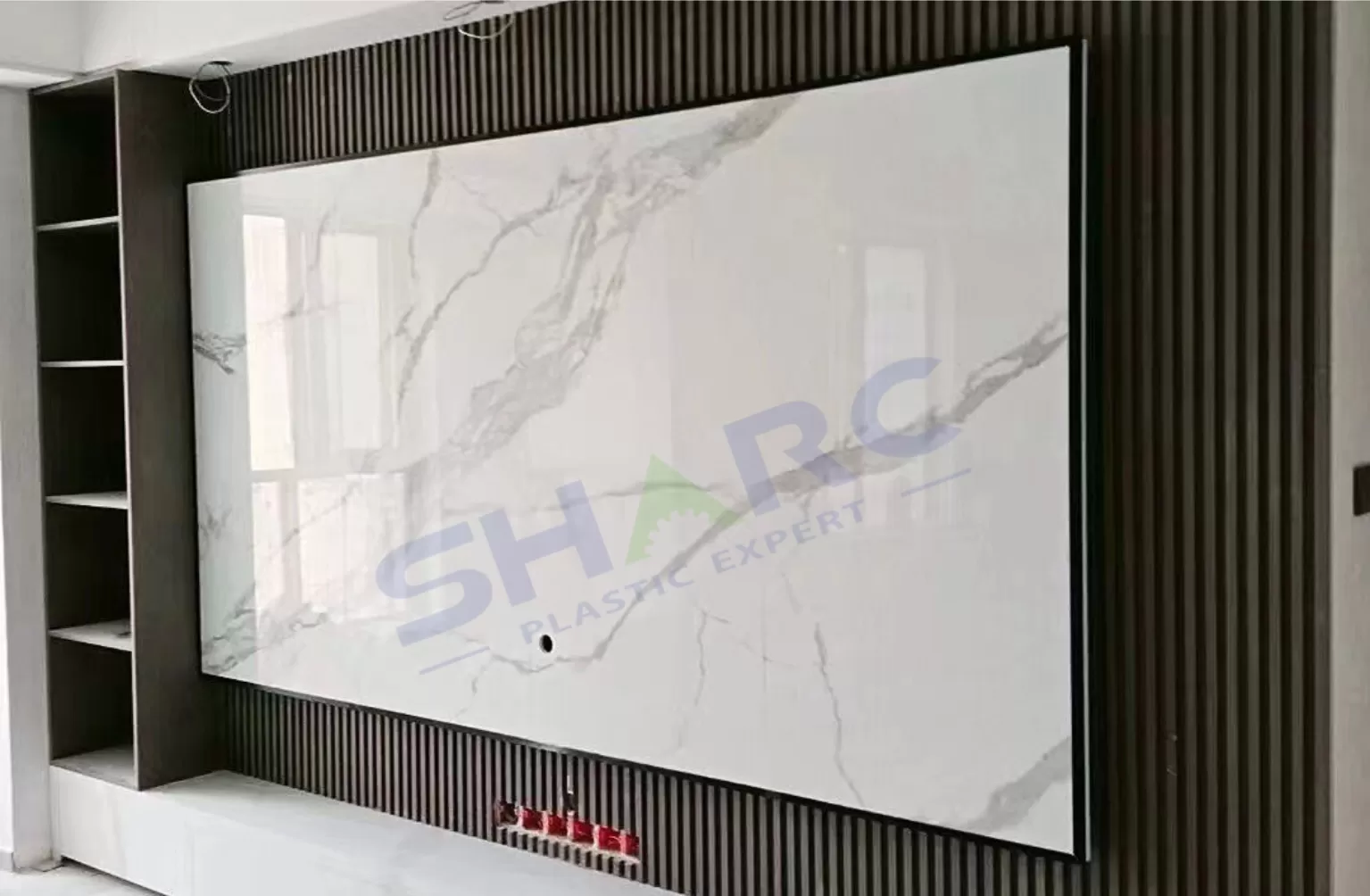

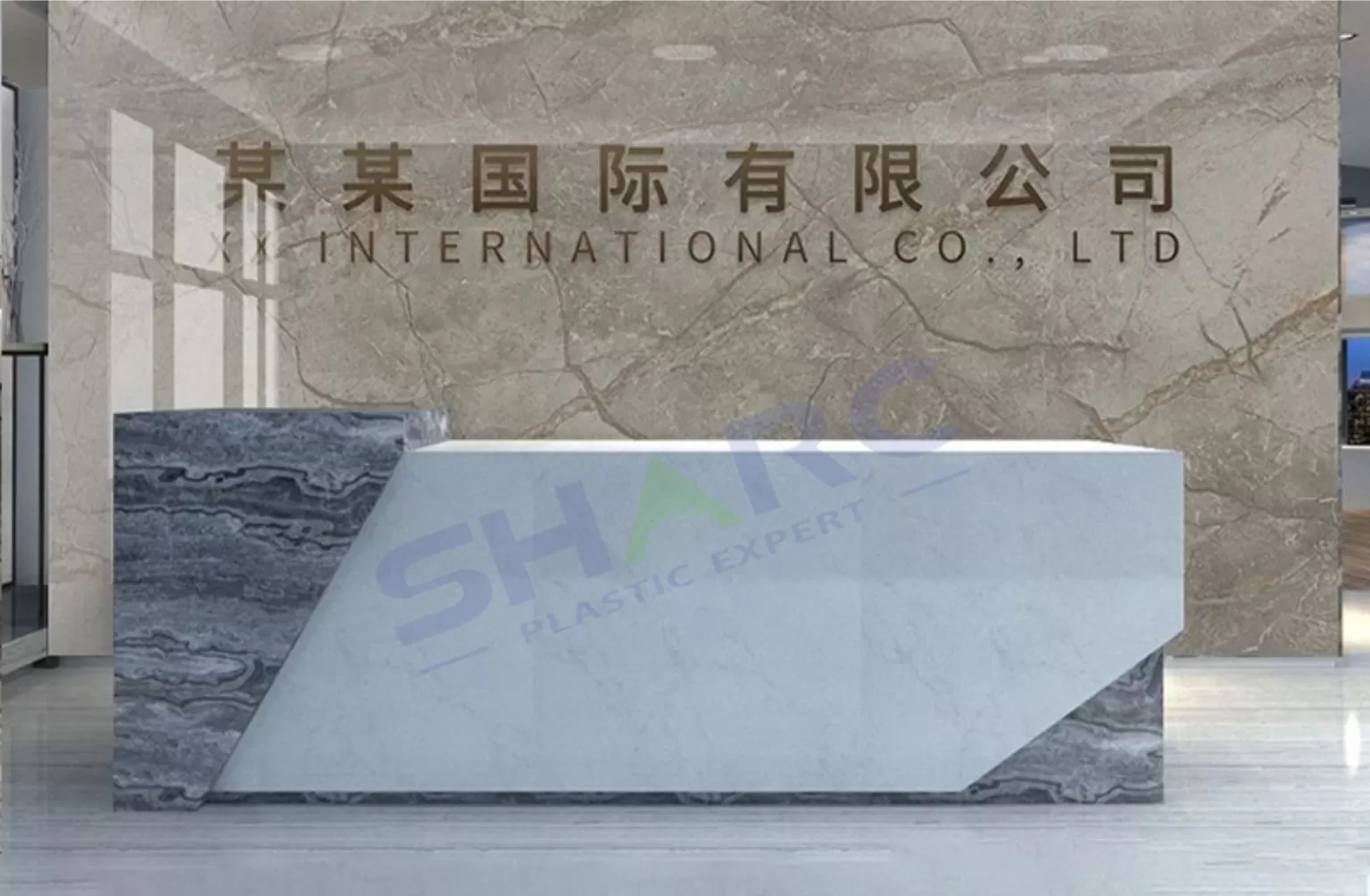

Application of PVC Marble Sheet Making Machine
ParameterS
| Model | Power (kW) | Capacity (kg/h) | Max Thickness (mm) |
|---|---|---|---|
| SC-DLS-80/156 | 75 | 400–450 | 1–8 |
| SC-DLS-92/188 | 90 | 650–700 | 1–8 |
Included Machines of PVC Marble Sheet Making Machine
- Materialfeeder: mixed PVC resin+calcium carbonate+additives will be loaded to extruder by this process. Mostly here will be designed by using screw type feeder.

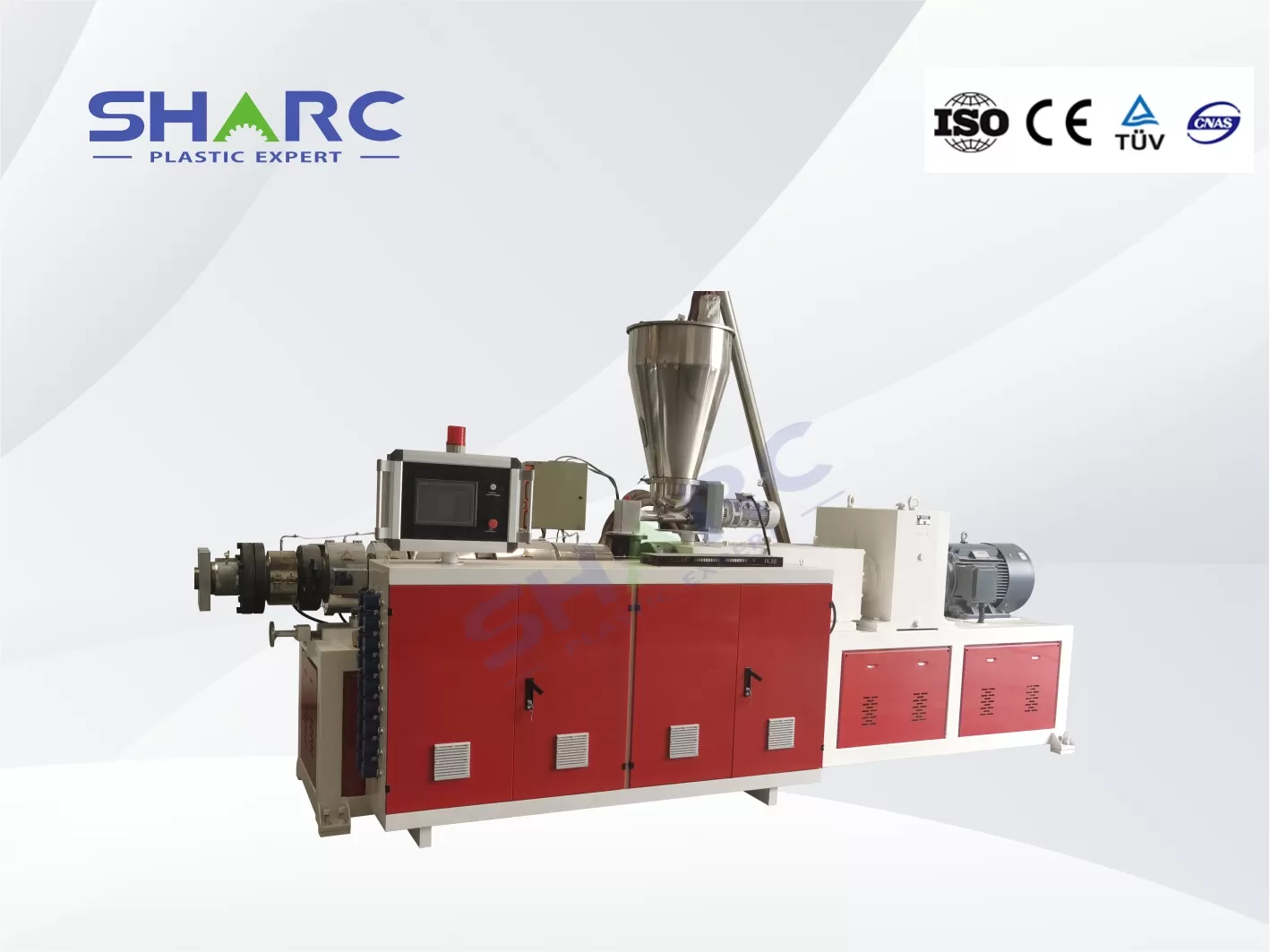

- Extruder Machine: Two regular extruder model for PVC marble sheet production is SJZ80/156 and SJZ92/188 conical twin screw extruder machine, clients can choose by their capacity requirements, capacity ranges from 400kg/h to 700kg/h. Machine will adopts Siemens PLC touch screen control, Siemens Motor, ABB frequency inverter, Schneider contactor etc.
- Die: The thickness of PVC marble sheet ranges from 1-8mm normally, Thickness is adjustable, means clients can get all thickness by one set of die head.

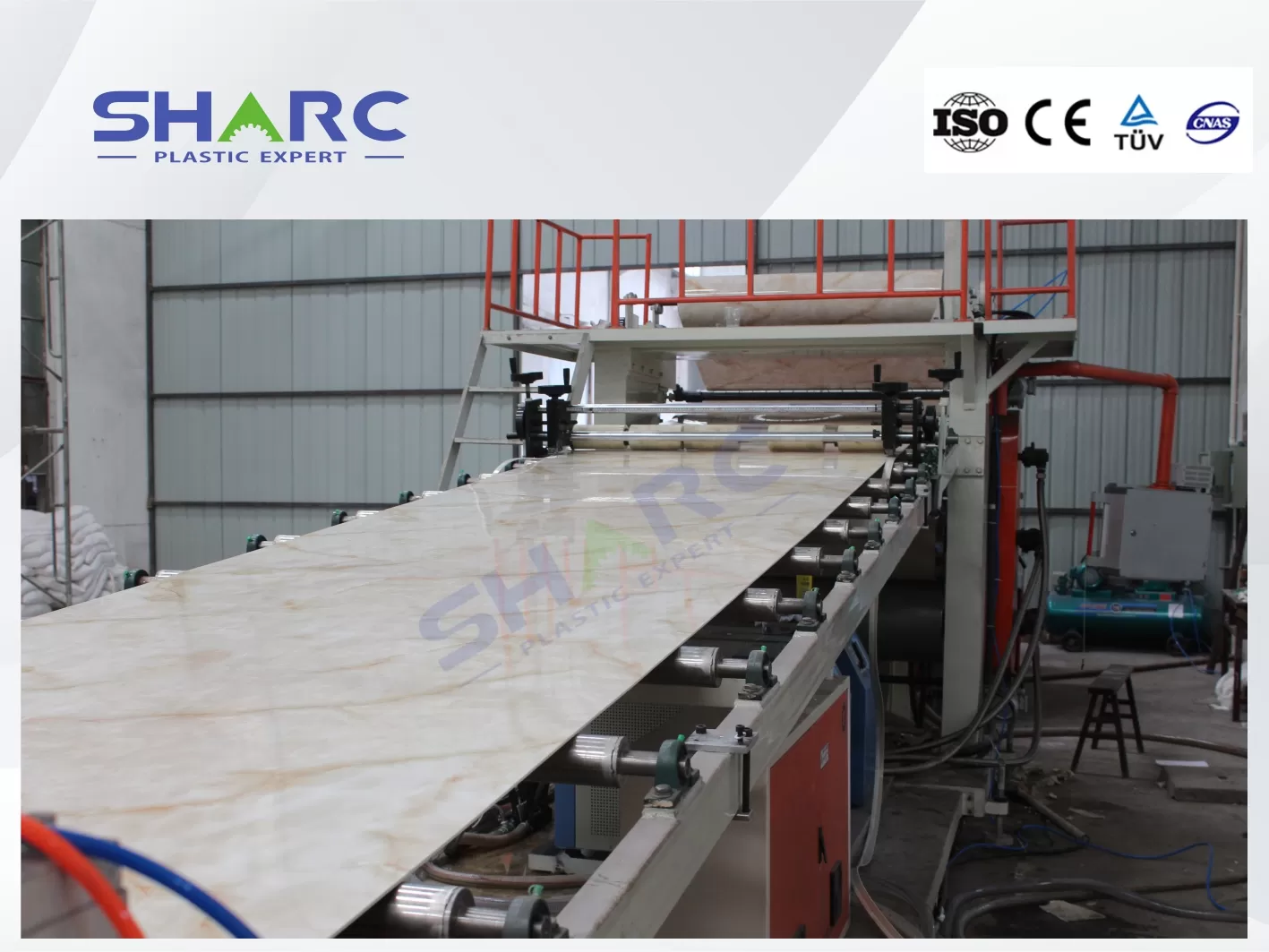

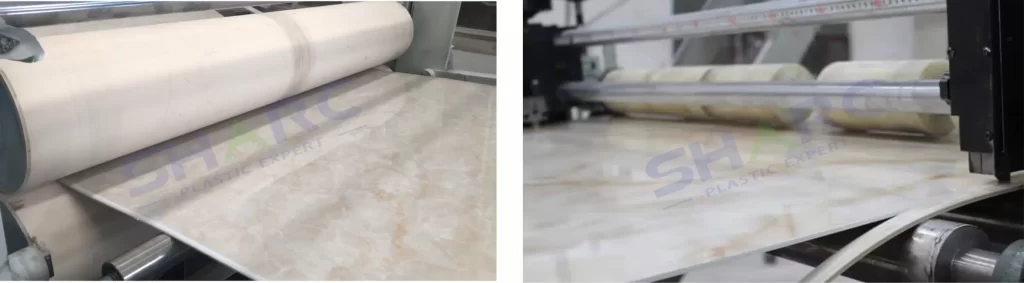

- Three/Four/Five calendar system: This is the most important part of PVC marble sheet production, this is the shaping and processing part of getting nice quality marble sheet, thickness is fixed by this process. During this process, the design PET/PVC film is also pasted to sheets, clients can easily change design and get different design marble sheet. For different speed machine, this part can be 3 rollers, 4 rollers or 5 rollers system.
- Cooling stacker: Just be used for cooling the sheet temperature, also equipped with side cutter to get final width PVC marble sheet and get nice sheet side.
- Haul off Machine: Supplying power to pull the PVC marble sheet forward.

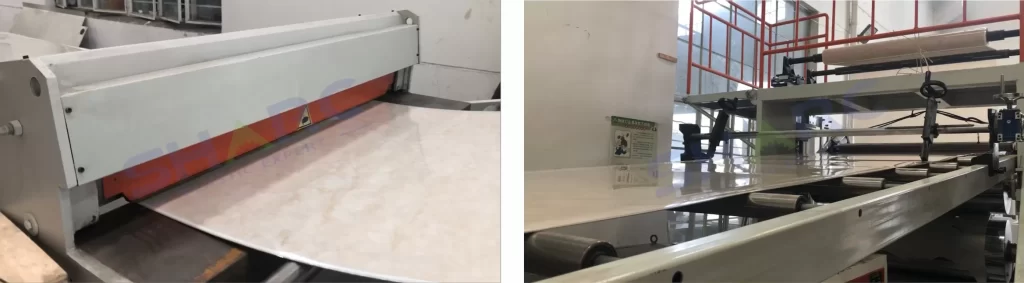

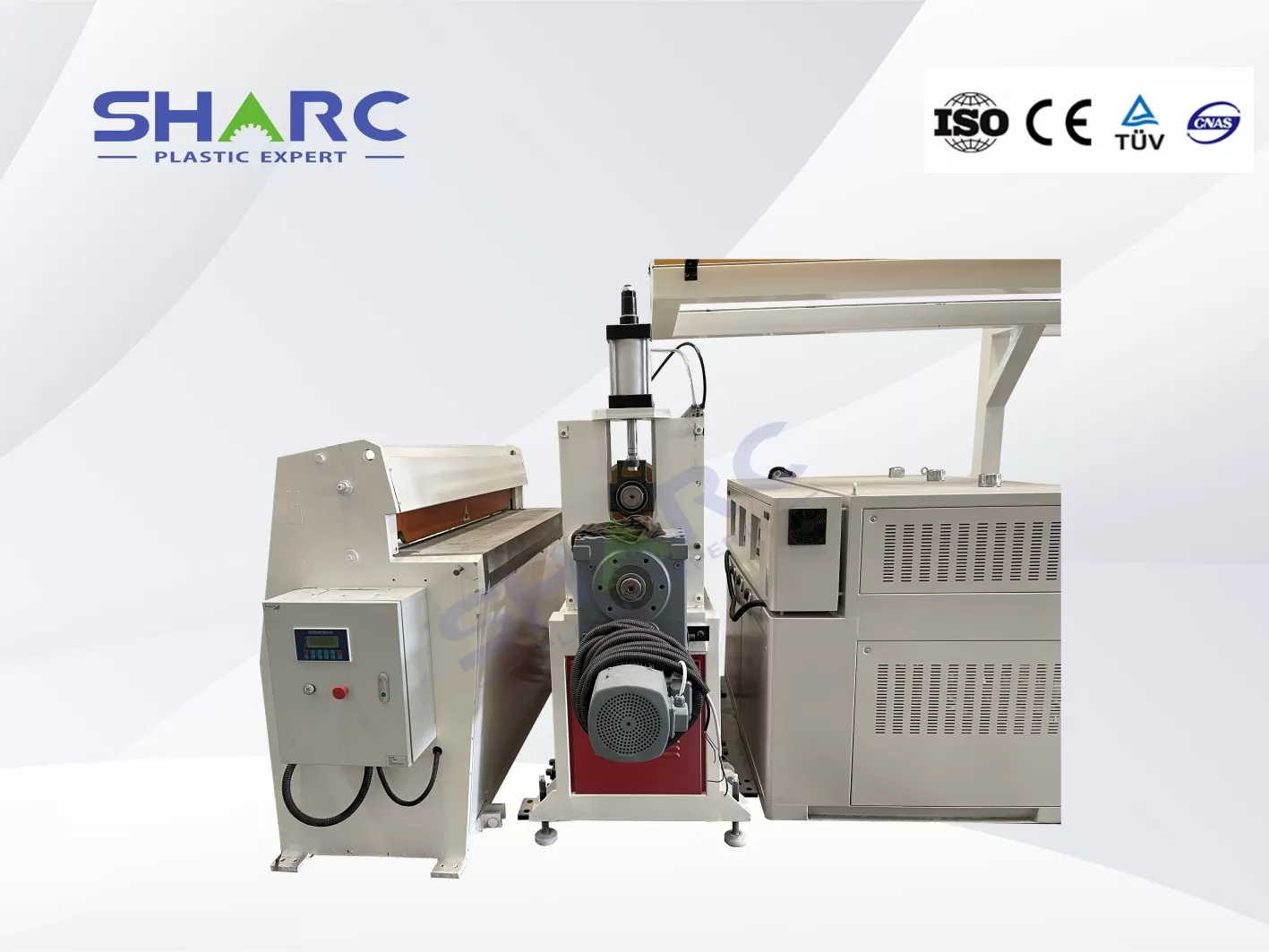

- Cutting Machine: Set up the final length of sheet, then it will cut automatically.

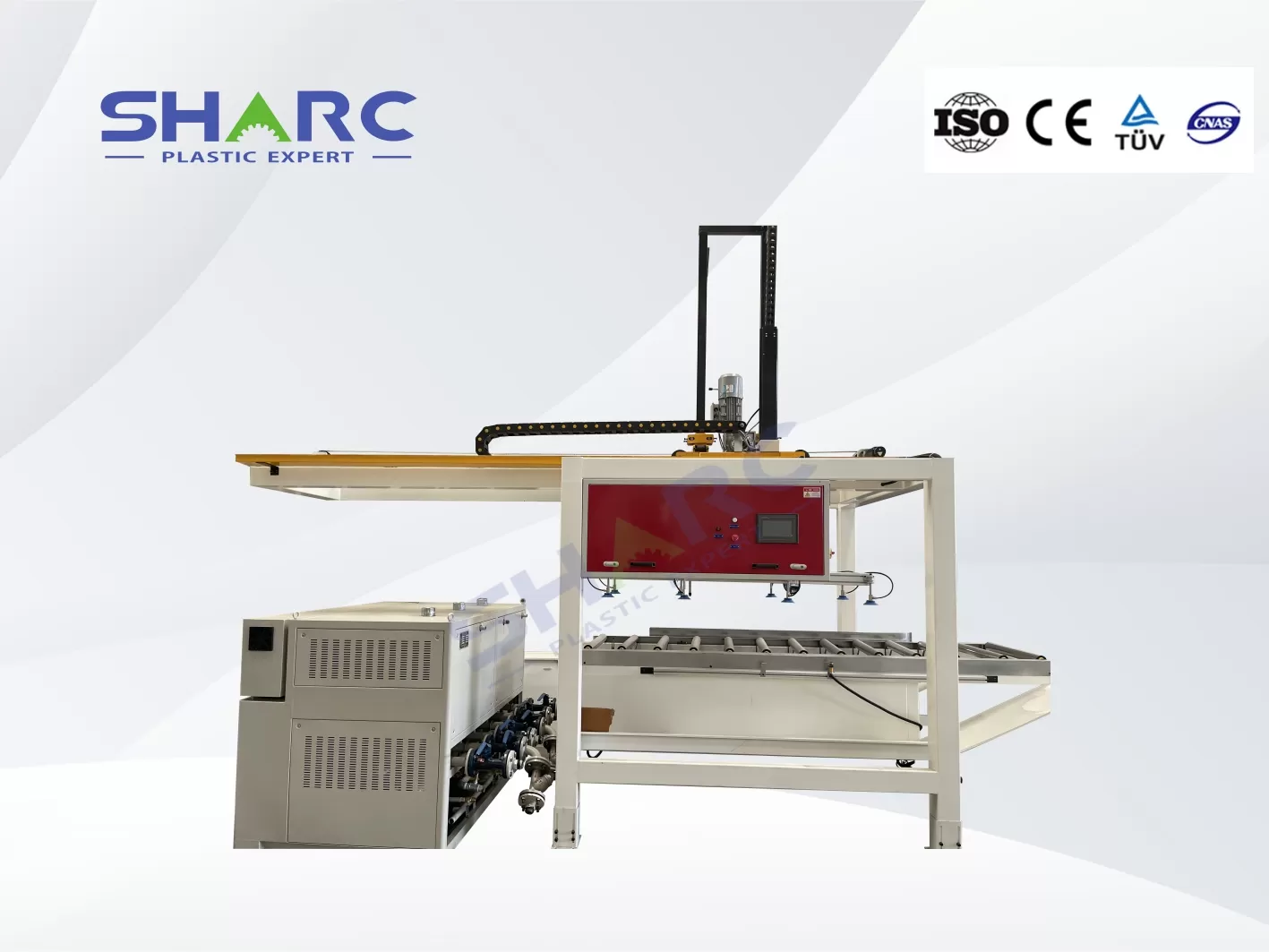

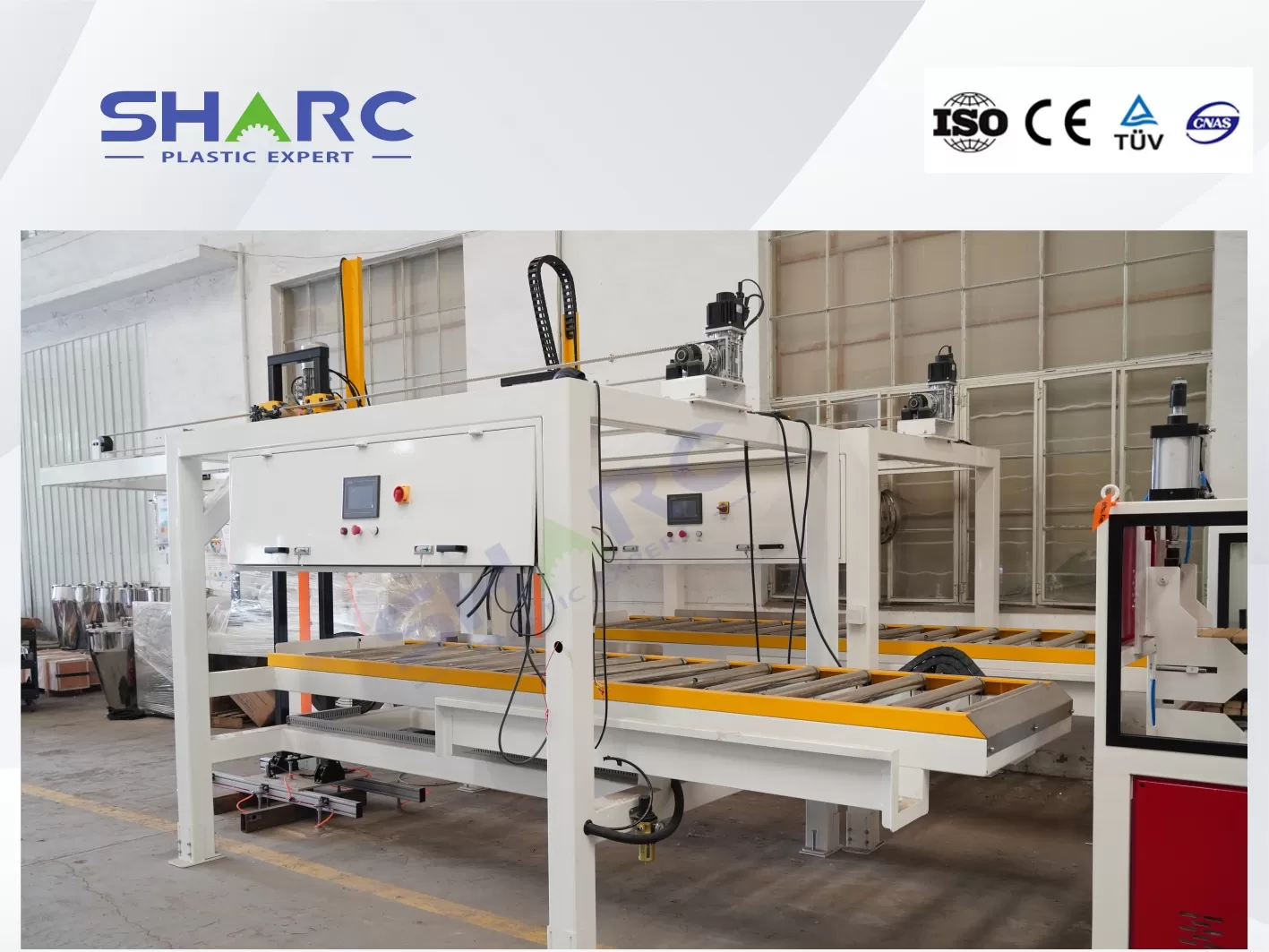

- Automatic robot hand: Move the final size PVC marble sheet to the side, reduce labor cost. It is good for factory running.
Advantages
- The material composition is polymer material, 100% waterproof, so there is no problem of mold and moisture.
- The surface is high-definition, the three-dimensional effect is strong, and the simulation degree is more than 95%.
- After special surface UV treatment, the board surface is flat, not easy to scratch, and convenient for dust removal.
- All colors are scanned and synthesized using imported jade patterns, giving the overall luxurious, fashionable and high-end style!
- Acid and alkali resistant and corrosion-resistant, compared with traditional boards, it has better physical and chemical properties, ensuring that the board will not lose color for a long time, and solving the color difference phenomenon.
- Replace the traditional UV board, crystal board, aluminum-plastic board, cement fiber board, stone board and other unclear surfaces, poor three-dimensional effect, and high cost
- Replace the high cost of artificial jade, artificial stone, marble tiles, wood veneer panels and other wall materials, inconvenient installation, and troublesome cutting.
The equipment advantages of the PVC Marble Sheet Making Machine from Sharc
- PVC Marble Sheet Making Machine adopts automated equipment and control system to realize automated production process, reduce manual operations, and improve production efficiency and product quality.
- PVC Marble Sheet Making Machine can produce PVC marble sheet of various specifications and thicknesses, adapting to different application requirements and having greater production flexibility.
- PVC Marble Sheet Making Machine adopts continuous production technology to achieve high-speed production, greatly improve production efficiency, and meet the needs of large-scale production.
- PVC Marble Sheet Making Machine is equipped with a precise control system, which can monitor and adjust production parameters in real time to ensure that the size, quality and performance of the product meet the requirements.
- Automated PVC Marble Sheet Extrusion line can reduce labor costs and energy consumption, reduce production costs, and improve the competitiveness of enterprises.
- PVC Marble Sheet Production Line is equipped with strict quality control system and testing equipment, which can conduct comprehensive quality inspection and testing of products to ensure product consistency and stability.
- PVC Marble Sheet Making Machine continues to carry out technological innovation and optimized design to improve product performance and production efficiency to meet the continuous changes and upgrades of market demand.
