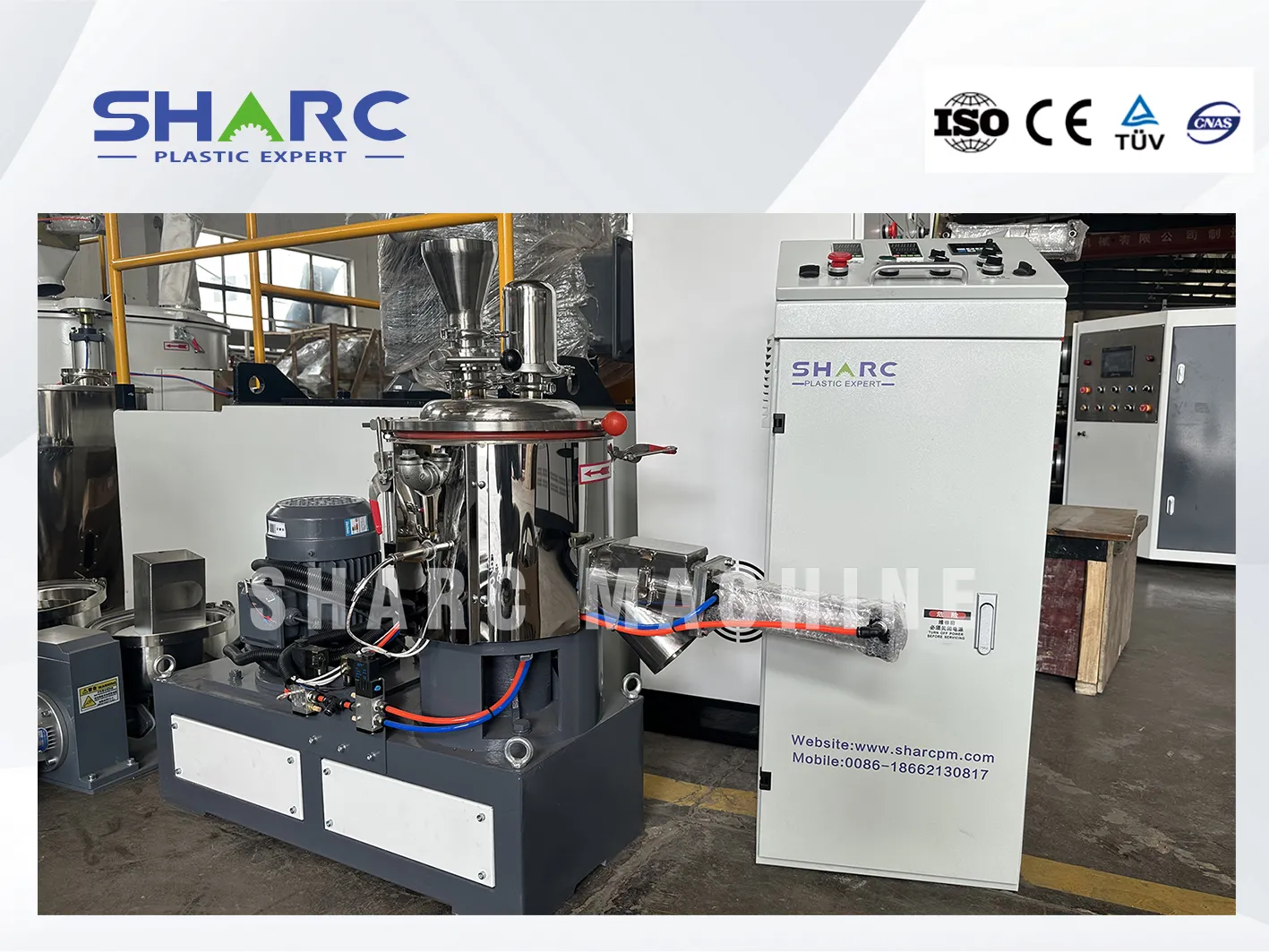

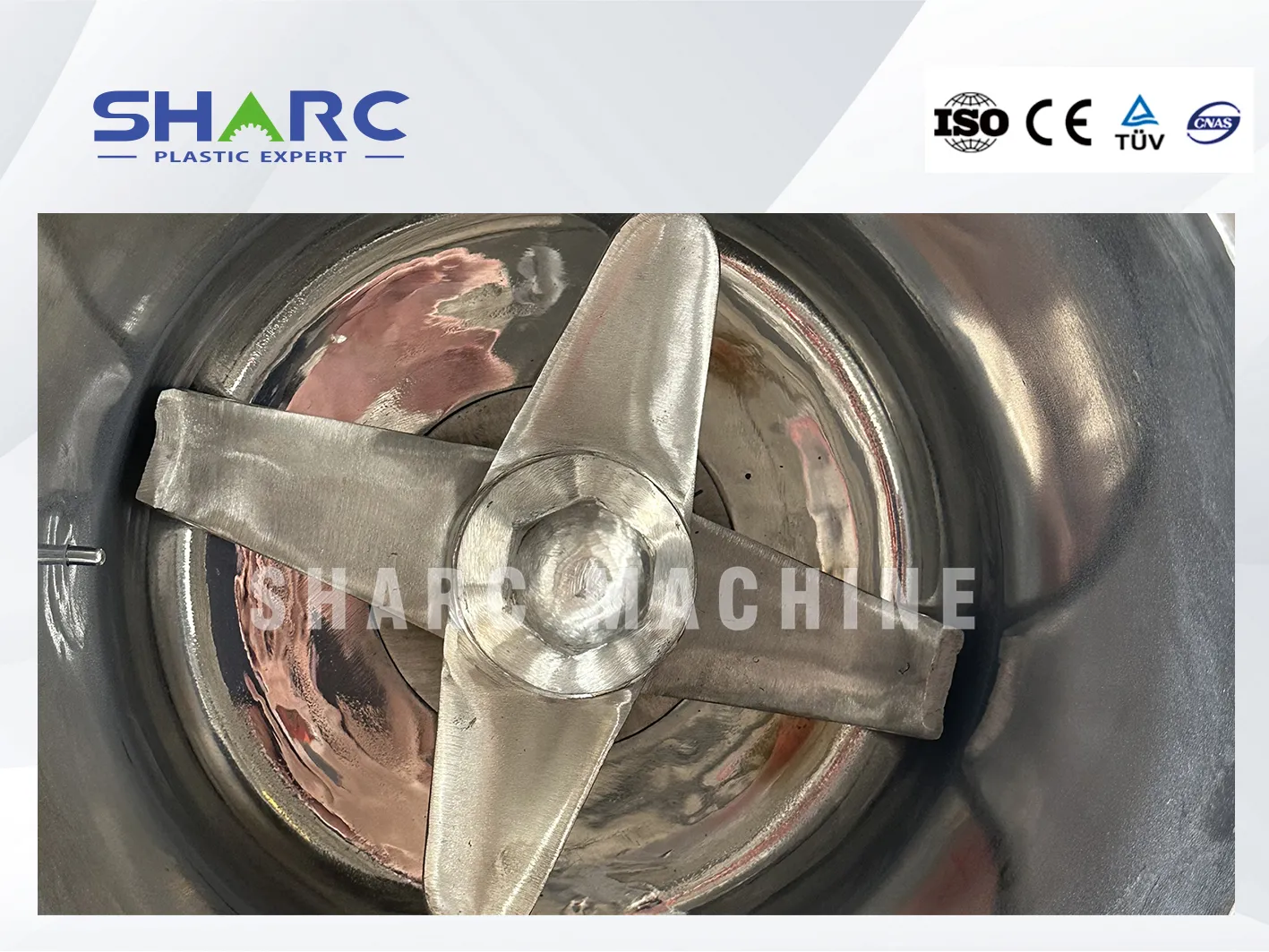

Laboratory Plastic Material Mixer Machine
- Model: 5-100 L
- Power: 1.1kw-22kw
Laboratory Plastic Material Mixer Machine is one of the necessary equipment in plastic processing plants. It is widely used in plastic rubber, pharmaceutical, dye and other industries. According to the actual production formula of the product, all raw materials are added to the mixer for mixing, so that the materials can be fully stirred and then used for production. As a small plastic mixer, the Laboratory Plastic Material Mixer Machine plays a huge role in production experiments and teaching. For example, before the production of PVC edge banding tapes, it is necessary to test the formula and colors before big capacity production, during that period, the importance of Laboratory Plastic Material Mixer Machine is presented.
| Model | SHR-5L | SHR-10L | SHR-25L | SHR-50L | SHR-100L |
|---|---|---|---|---|---|
| Total Volume (L) | 5 | 10 | 25 | 50 | 100 |
| Effective Volume (L) | 3 | 7 | 17 | 35 | 75 |
| Motor Power (kW) | 1.1 | 3 | 5.5 | 7 / 11 | 14 / 22 |
| Rotating Speed (rpm) | 1440 | 1440 | 1440 | 750 / 1500 | 650 / 1300 |
| Heating Method | Self-friction | ||||
| Discharging Method | Pneumatic | ||||
| Dimensions (mm) | 620 × 300 × 730 | 1200 × 300 × 830 | 1200 × 350 × 850 | 2100 × 700 × 1100 | 2100 × 800 × 1500 |
Functions and introductions of Laboratory Plastic Material Mixer Machine:
- Uniform mixing: Ensure that PVC resin is evenly mixed with various additives (such as stabilizers, plasticizers, fillers, pigments, etc.) to avoid local concentrations that are too high or too low.
- Improve efficiency: Laboratory Plastic Material Mixer Machine can quickly complete the mixing of small batches of materials, which is suitable for research and development and small-scale production, and improves work efficiency.
- Formula testing: In the new product development stage, Laboratory Plastic Material Mixer Machine are used to test different formulas and optimize material properties.
- Quality control: Small batch mixing through small mixers can better control product quality and ensure the consistency and stability of materials.
- Reduce waste: Small batch mixing reduces the waste of raw materials, especially when adjusting formulas or testing new materials.
- Easy operation: Laboratory Plastic Material Mixer Machine are usually compact in design, easy to operate, easy to control and clean.
- Strong adaptability: It can adapt to the mixing of PVC materials of different types and characteristics, and has a certain degree of flexibility.
- Cost-effectiveness: Compared with large mixing equipment, Laboratory Plastic Material Mixer Machine have lower purchase and operation costs.
- Laboratory use: Laboratory Plastic Material Mixer Machine are used for material research, teaching demonstrations and student training.
- Sample preparation: used to prepare small batches of samples for performance testing or further processing.
- Environmentally friendly: Laboratory Plastic Material Mixer Machine are usually designed with better sealing performance, reducing the spread of dust and odor, and are more environmentally friendly.
- Process verification: When changing the production process or introducing new processing technology, Laboratory Plastic Material Mixer Machine can be used to verify the feasibility of the process
Unit specifications of Laboratory Plastic Material Mixer Machine

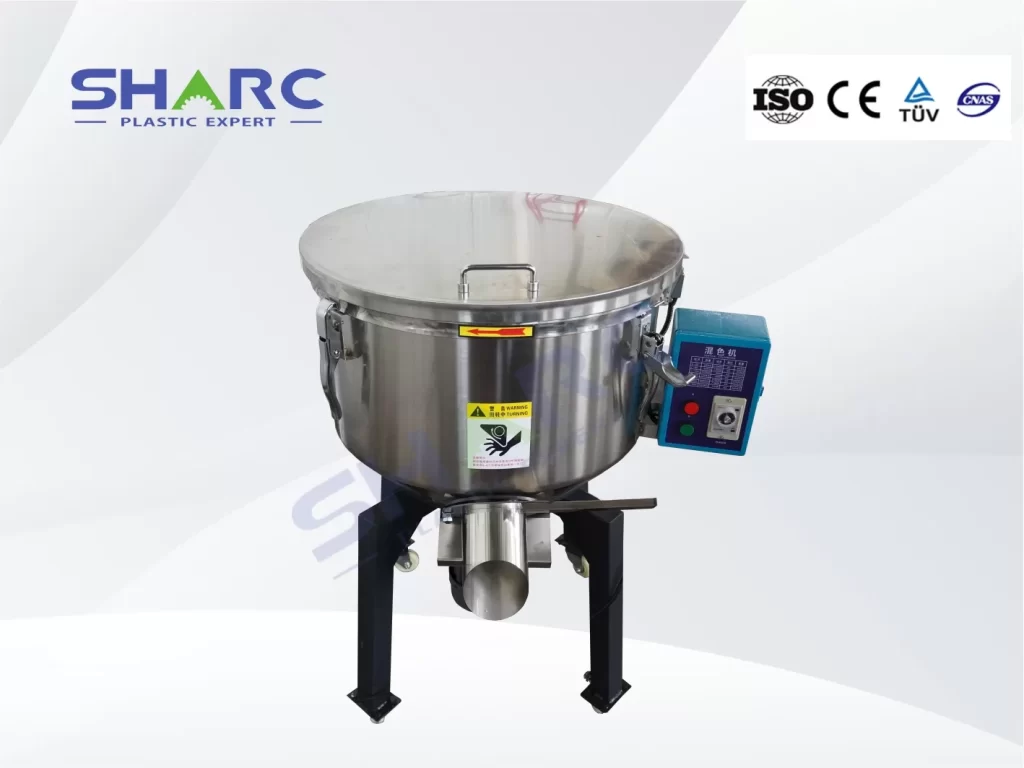

Efficient Plastic color mixer machine
- Capacity: 25-500kg
- Power: 0.75-11kw
- Rotating speed: 63r/min
Plastic color mixer machine is a device used in the plastic processing industry. It is widely used in the production of pipes, sheets and other plastic products. It is mainly used to achieve precise mixing of pigments or additives with plastic granules.

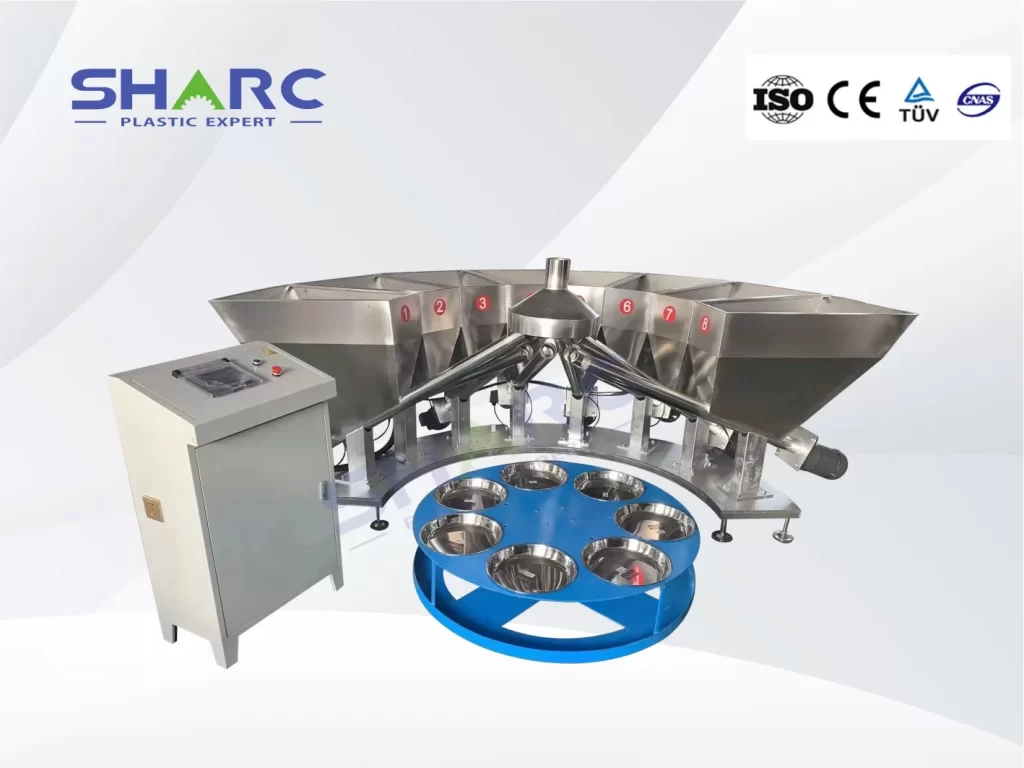

Formulation machine in mixer
