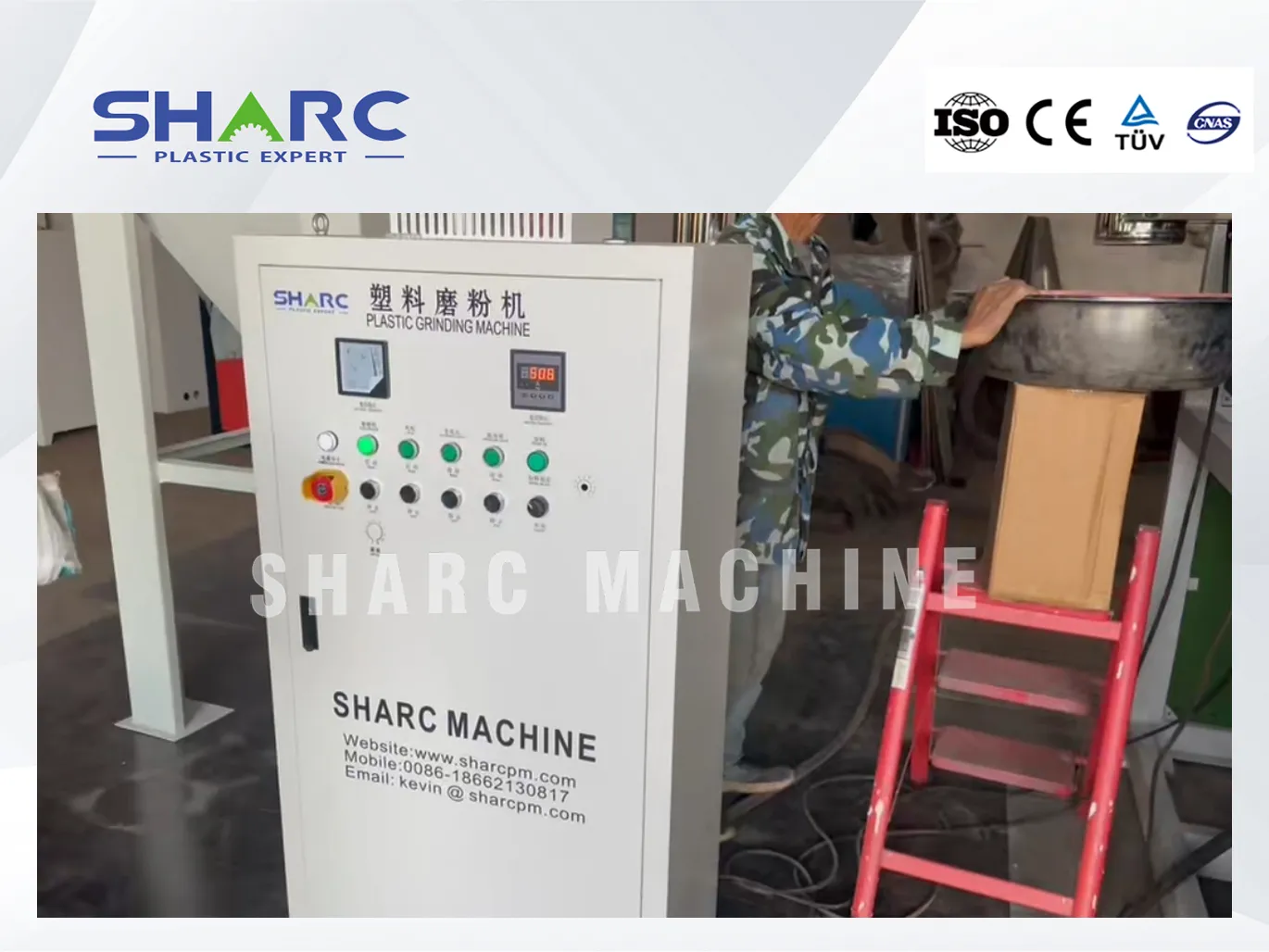

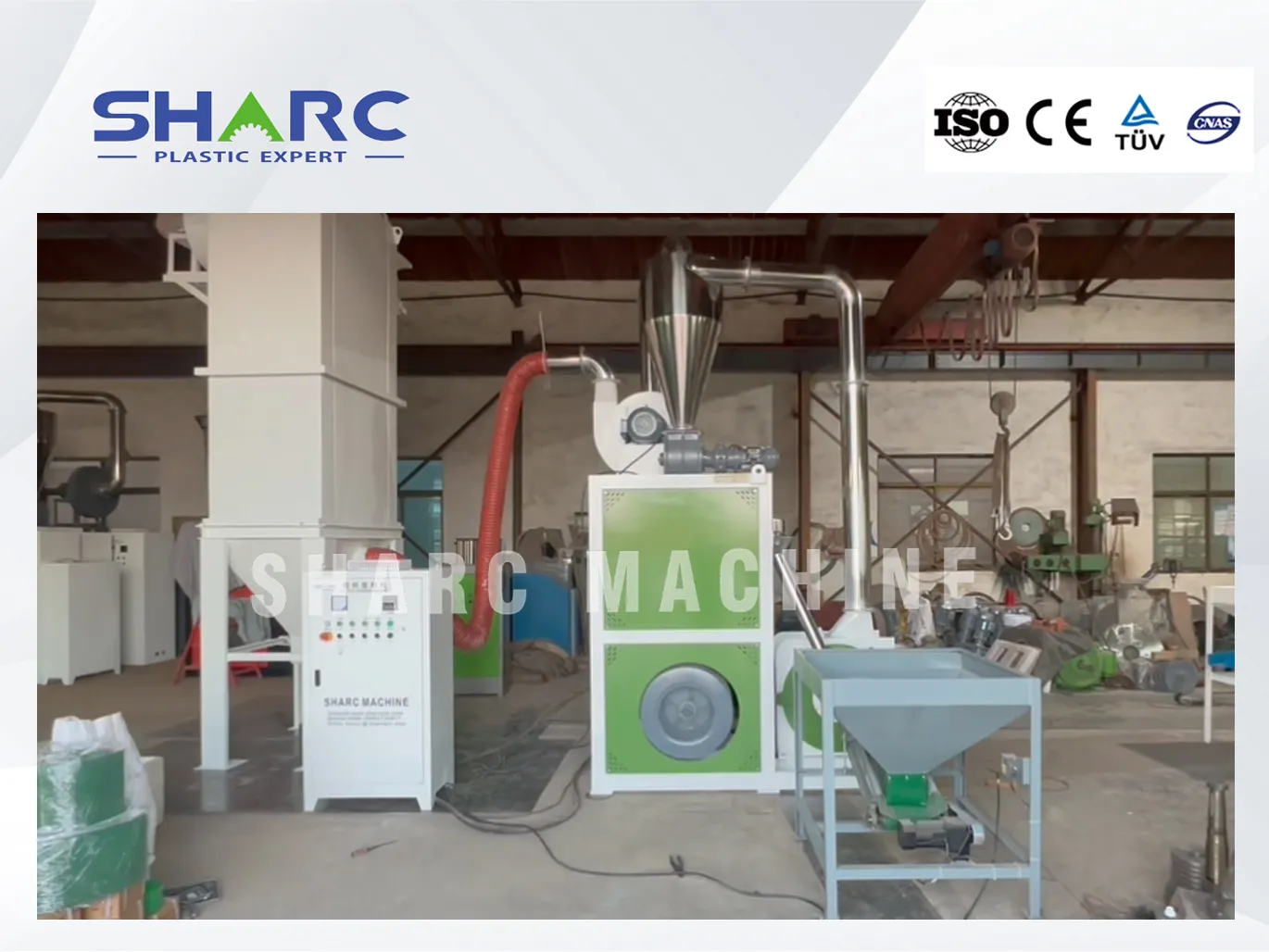

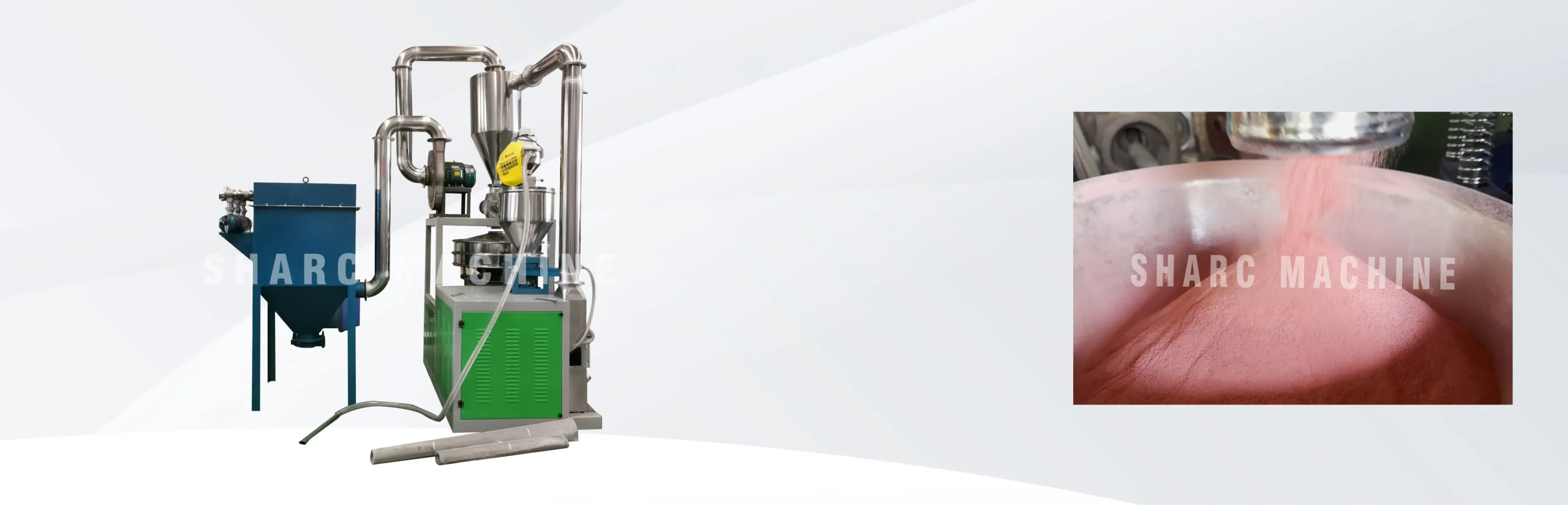

PVC Miller
Significant improvements have been made in the past, and the output of PVC miller has also increased from the initial dozens of kilograms to hundreds of kilograms or even nearly 1 ton per hour, and the fineness has also developed from a fixed number to an adjustable one.
PVC miller was formed in the early 1980s and has been continuously improved and updated. It has been in use until now. The model has evolved from SMF-400 to SMF-500, SMF-600, and SMF-800.
| Model | SMF-400 | SMF-500 | SMF-600 | SMF-800 |
|---|---|---|---|---|
| Main Motor Power (kW) | 30 | 37 | 45 | 90 |
| Capacity (kg/h) | 50–120 | 150–200 | 280–380 | 500–700 |
| Weight (kg) | 1000 | 1200 | 1800 | 1900 |
| Output Fineness (mesh) | 30–80 (adjustable) | |||
| Cooling Method | Air cooling + water cooling | |||
Main Features of PVC miller:
- PVC miller is easy to install and maintain, and it can be cleaned by opening the door.
- The whole plastic grinding process of the plastic mill is completely sealed, and there is no dust pollution.
- Powder size of PVC miller can be adjusted from 10 to 120 mesh, and it is easy to adjust.
- The cooling system of PVC miller adopts air and water combined cooling.
- High-quality wear-resistant steel knives for plastic mill, high output and good wear resistance.
- Runs automatically and continuously.
- Has a compact structure and a small footprint.
- The whole steel structure is integrated, which is stable and reliable.

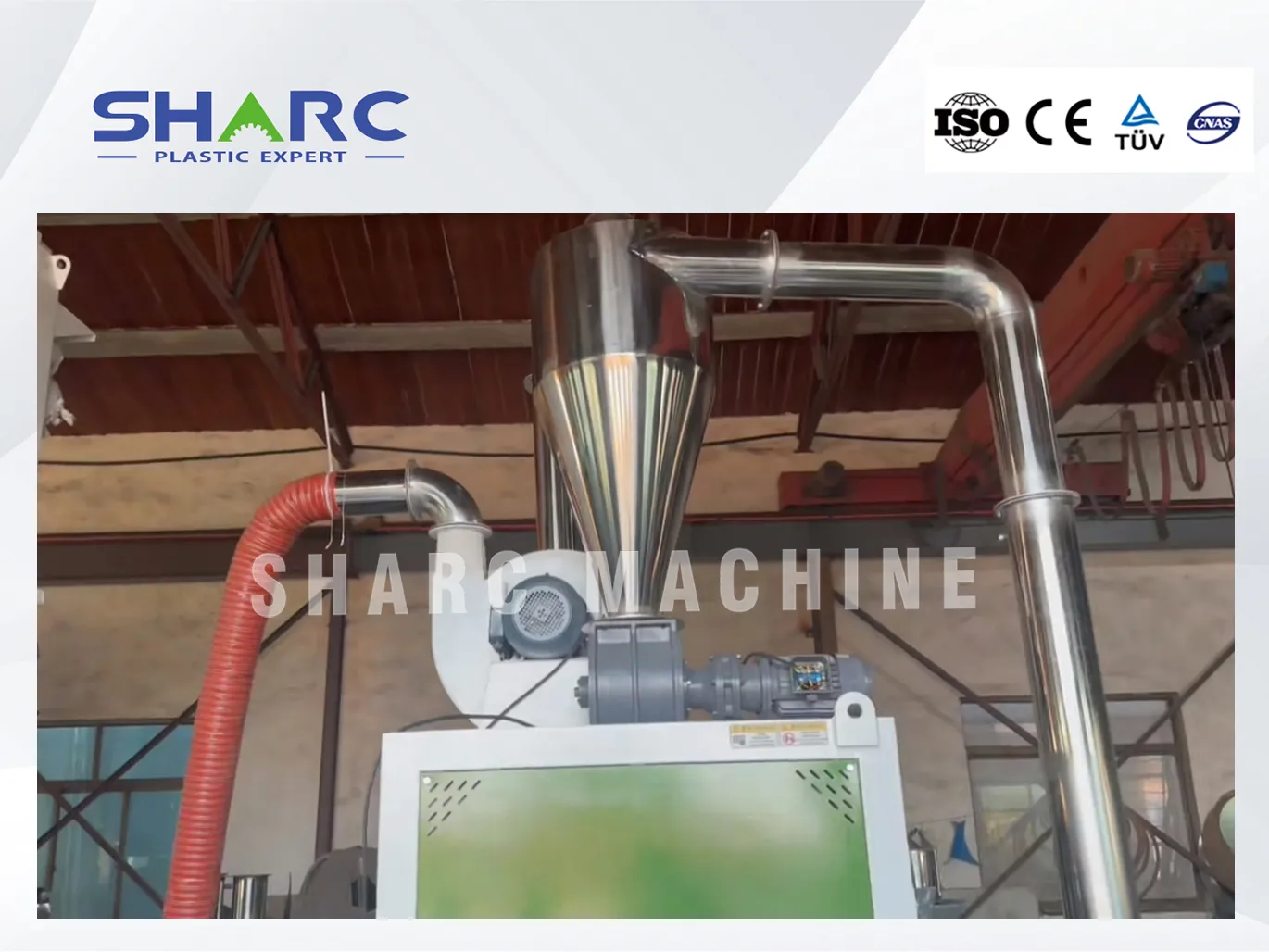

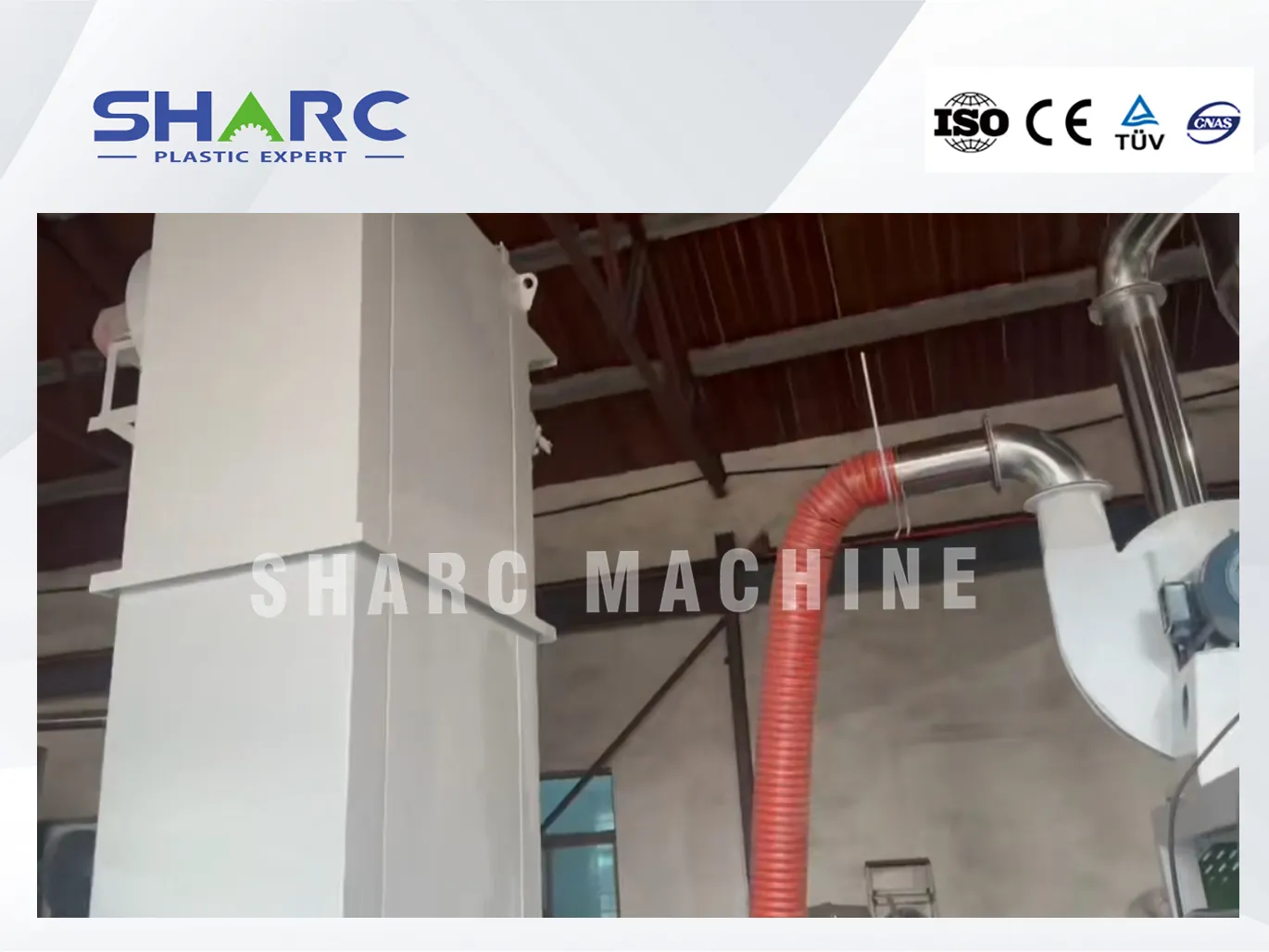

- The closed design uses its own air volume and air pressure to collect the prepared powder without dust leakage
- The humanized adjustment knife of the plastic mill, the design concept and the adjustment of the gap between the fixed knife only need a moment, and it is easy and comfortable.
The process of PVC miller:
The basic principle of PVC miller is through spindle equipped with precision bearing drive the knife dish, under the drive of the knife dish, the moving knife rotated with high speed, and tangent with the stationary knife. Make the materials into a powerful collision, then grinding into powder. After the wind and water cooling, it can effective control the temperature of grinding material.
Unit specifications of PVC Miller

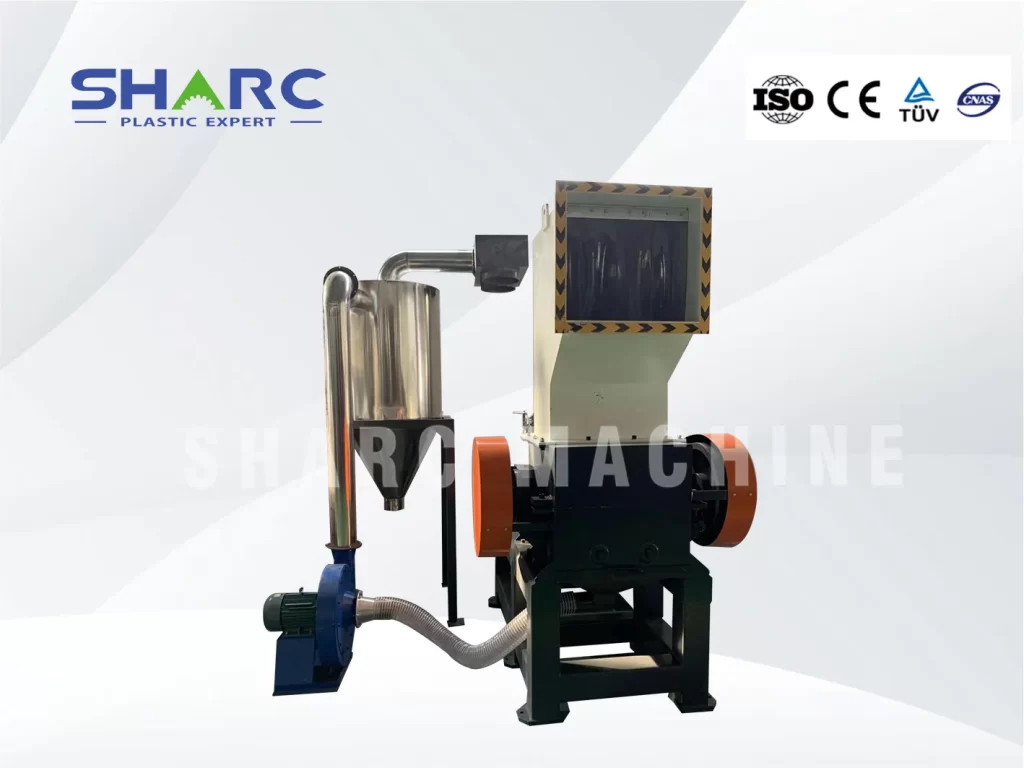

Plastic Crusher
High quality blade for plastic crusher of long life machine running.

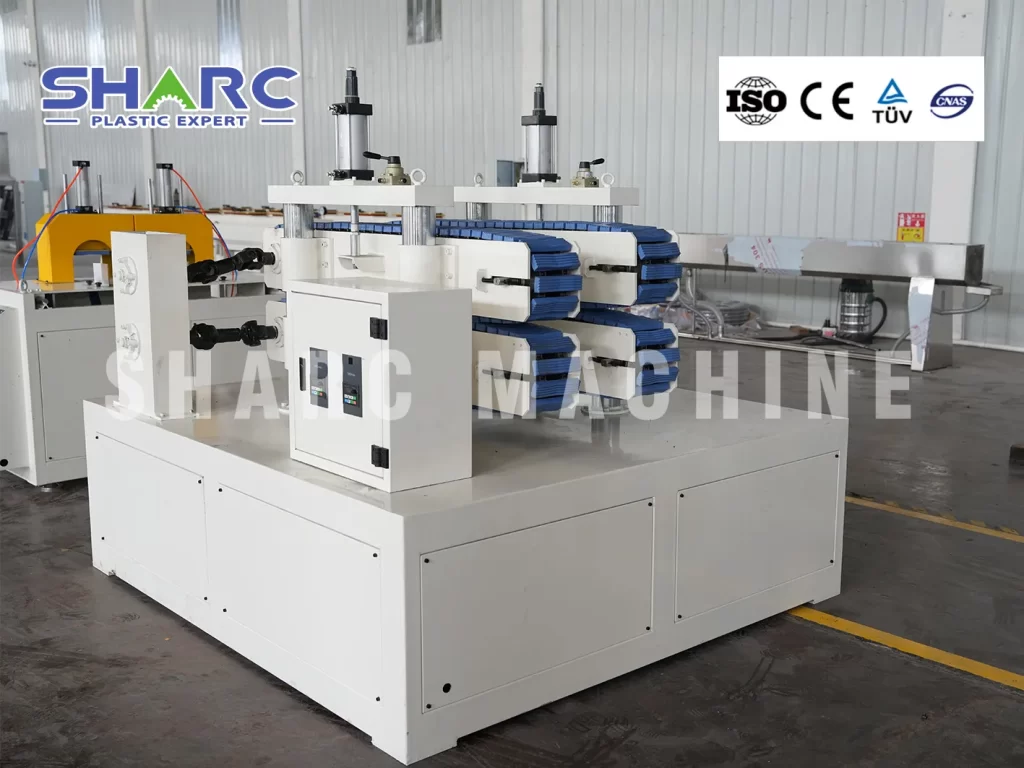

2 Cavity PVC Pipe Production Line
Suitable plastic pipe diameter: 16-63mm
- In drainage systems, the commonly used pipe diameters are 40mm and 50mm;
- In water supply systems, the commonly used pipe diameters are 25mm, 32mm and 40mm;
- In wire and cable pipelines, the commonly used pipe diameters are 20mm, 25mm and 32mm.
- This 2 Cavity PVC Pipe Production Line has a 2 cavity design and can produce two pipes at the same time, greatly improving production efficiency and output.
- This 2 Cavity PVC Pipe Production Line mainly includes extruder, die head, vacuum cooling tank, traction machine, cutting machine and other parts.
- The extruder melts the PVC raw material and extrude it through the mold, then cools and shapes it, tractions it and cuts it into the required length.

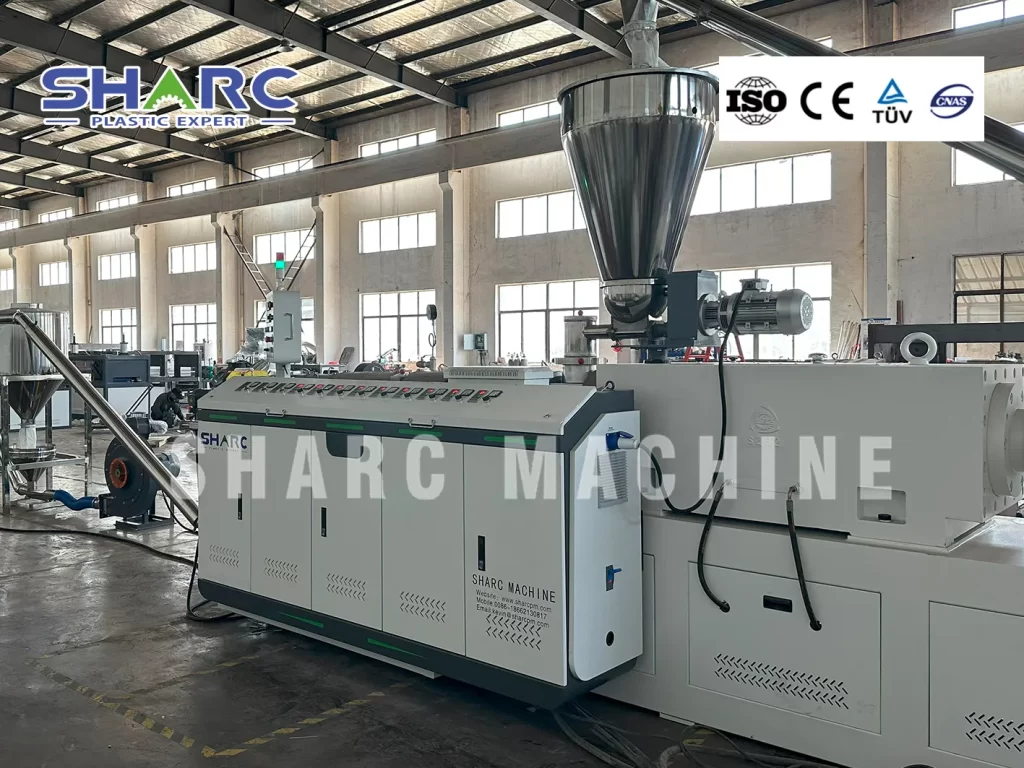

PVC Pelletizing Machine
