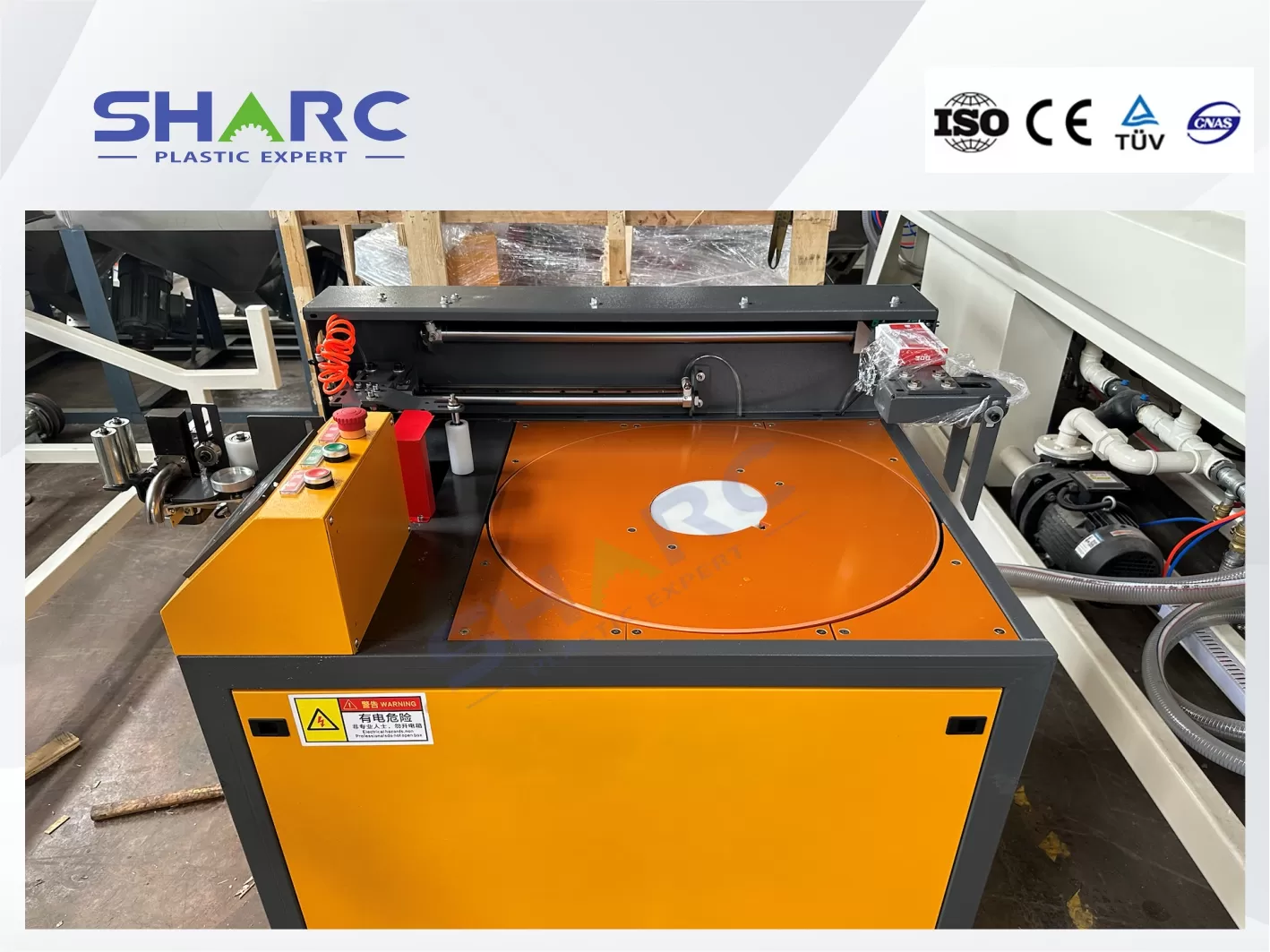

Automatic Winding Machine For PVC Edge Band
Edge banding is a material used to protect, decorate and beautify the cross section of furniture boards. It can make a piece of furniture show a clear wood grain and colorful overall effect. The main component of PVC edge banding is polyvinyl chloride, which is made by extrusion, calendering and other processes. At present, edge banding is generally winded up by simple manual winding in the production process. However, the manual winding and packaging of edge banding is not only cumbersome in operation and low in packaging efficiency, but also increases the fatigue intensity of workers in the mass production process, which will affect the packaging quality and efficiency of edge banding and increase production costs. Therefore, the automatic winding machine for PVC edge banding will the market trend.
- Base material thickness and width: PVC (0.4-3.0), 12-50 mm (max)
- Machine size: 1693x900x1329 mm
- Diameter of wooden tray: Ø700 mm
- Machine speed: 5-50 m/min
- Installed capacity: Total power 1.25 KW, power: 1.2 KW
- Transportation method: automatic
- Items to be prepared by the buyer: (1) Air compressor (working pressure 0.6 Mpa; 0.5 m3 /min) (2) 220V power suppl
Technical parameters of automatic winding machine for PVC edge band

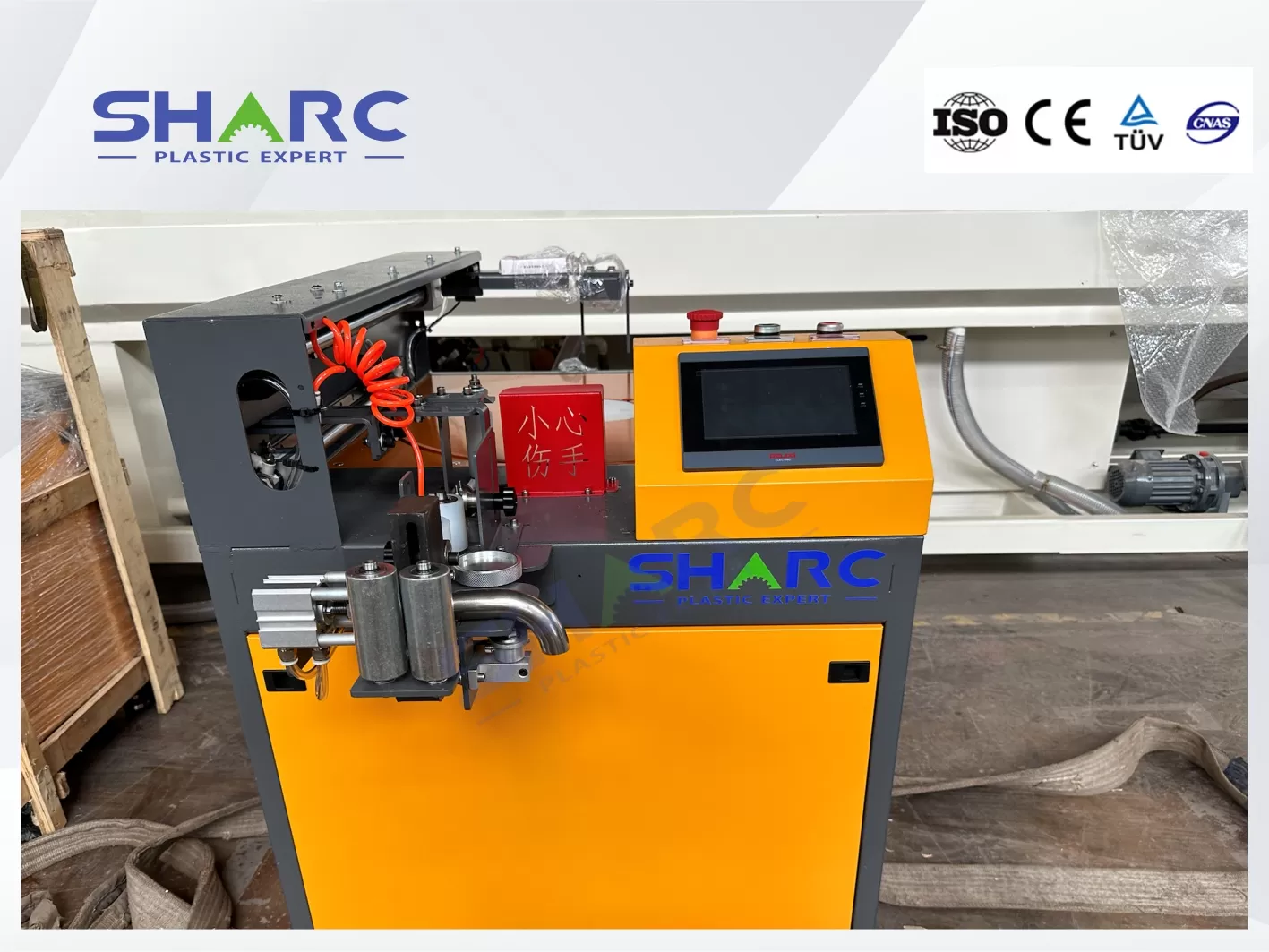

Electrical control:

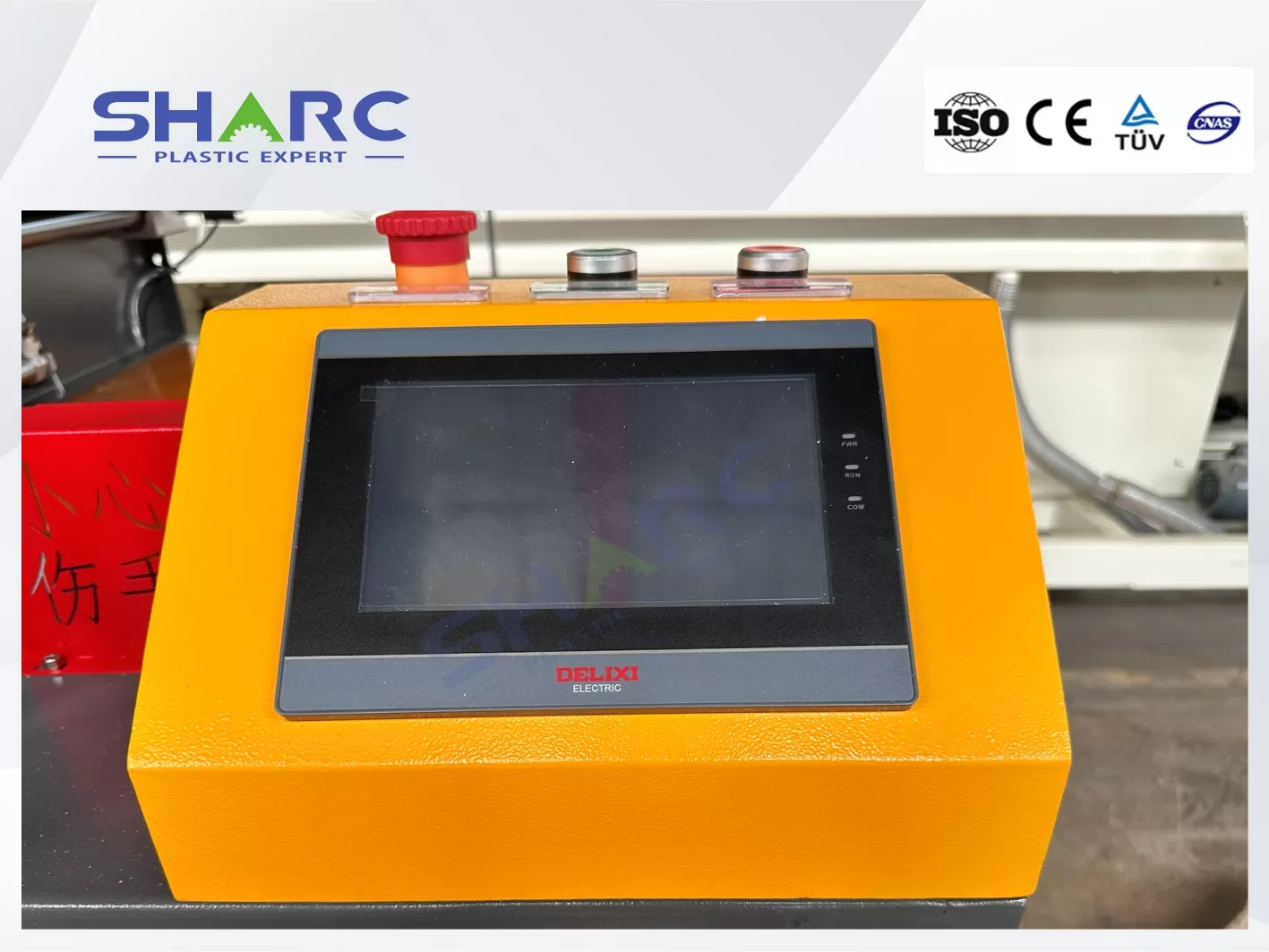

- Control method: (1) The whole line transmission speed regulation adopts PLC control, the control method uses servo motor drive device, touch screen operation. (2) Equipped control
- Brand of electrical control components (1) Servo motor DELIXI (2) PLC DELIXI (3) Inverter DELIXI (4) Counter Omron
If you have special requirements on electronics, please contact with SHARC.

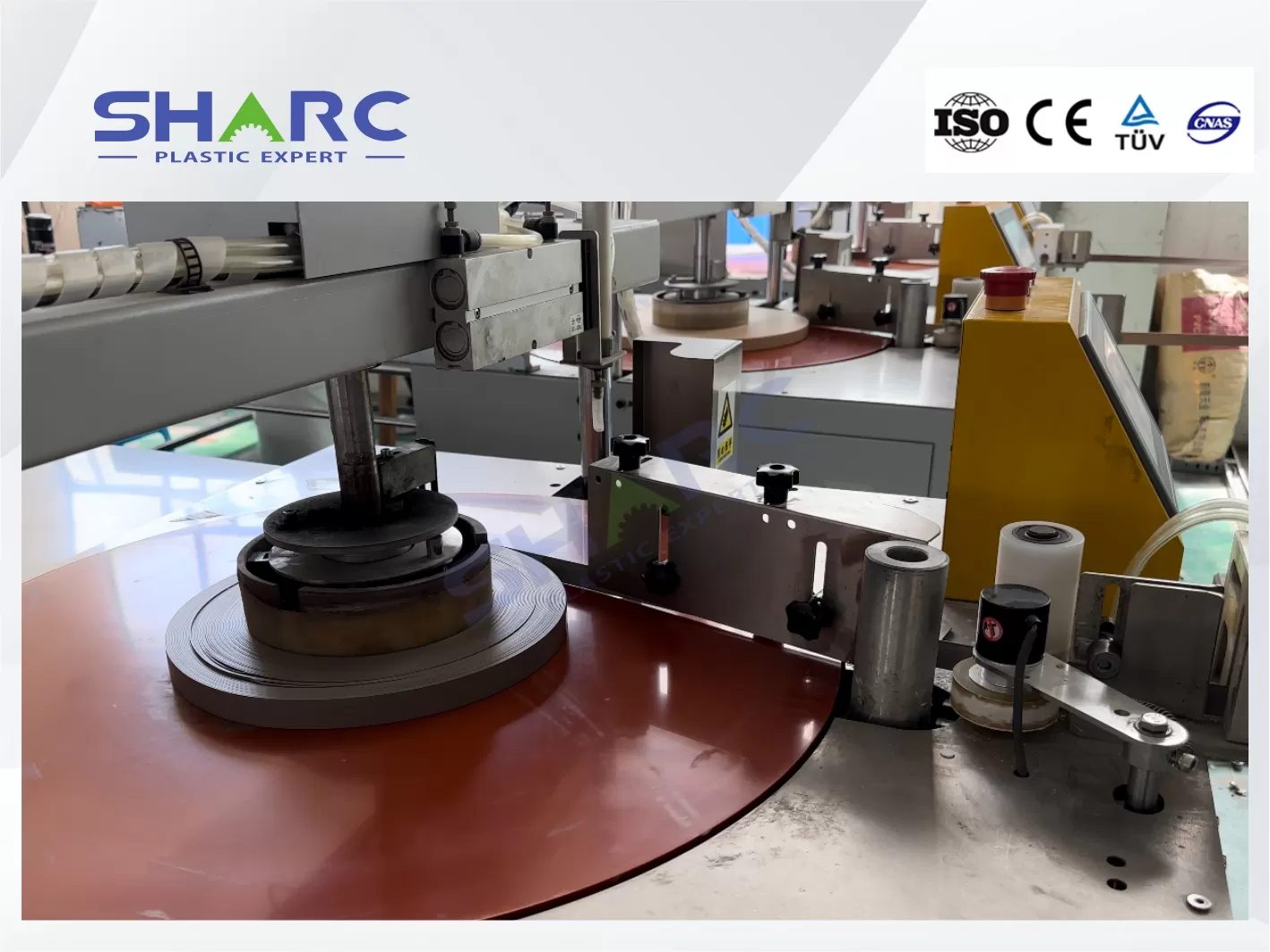

Main components of automatic winding machine for PVC edge band：
| NO | Names | Quantity |
| 1 | Servo motor (model CDM-110S-C04030B01) | 1 set |
| 2 | PLC | 32 bits |
| 3 | Cylinder | 9 sets |
| 4 | Pneumatic scissors | 1 set |
| 5 | Dotting machine | 1 set |
| 6 | Counter | 1 set |
| 7 | Solenoid valve | 11 bits |
| 8 | Brake | 1 piece |
