UV Coating Machine For PVC Edge Band
UV coating machine for PVC edge band can be used for paint and coat UV varnish on the surface of PVC edge banding sheet. Both high glossy and matt surface can get from this machine.
UV coating machine for PVC edge band is a device specially used for printing PVC edge banding sheet. It mainly uses offline printing to add UV coating to the already produced PVC edge sheet to improve its quality and appearance.
ParameterS
| Model | SEP-240 | SEP-400 | SEP-800 | ||
| Effective Width (mm) | 240 | 400 | 800 | ||
| Line Speed (m/min) | 0–35 | ||||
| Effective Thickness (mm) | 0–80 | ||||
| Power (kW) | 22 | 30 | 45 | ||
Equipment advantages of UV coating machine for PVC edge band:
- Efficient production: The UV coating machine for PVC edge band has high-speed printing capabilities and can quickly complete large-volume printing tasks and improve production efficiency.
- Quality assurance: Using UV coating technology, the printed PVC edge sheets have excellent properties such as wear resistance, waterproofing, and weather resistance, ensuring the quality and service life of the product.
- Cost saving: Offline printing can save human resources, and the rapid curing of UV coating also reduces production time and costs.
- Flexibility: The UV coating machine for PVC edge band can adjust the printing parameters and spraying methods as needed to adapt to different product requirements and customer needs.
All in all, the UV coating machine for PVC edge band brings convenience and advantages to the production of PVC edge sheet through efficient printing methods and quality-assured coating technology.
Working principle of UV coating machine for PVC edge band:
- Preparation: Load the PVC edge banding sheet to be printed into the feeding device of the printing machine, and adjust the parameters of the printing machine.
- Strip transfer: The printing machine for PVC edge band takes out the PVC edge banding sheet from the feeding device and transfers it to the printing area.
- Spraying: The spraying system sprays UV paint evenly on the surface of the PVC edge banding sheet through the nozzle.

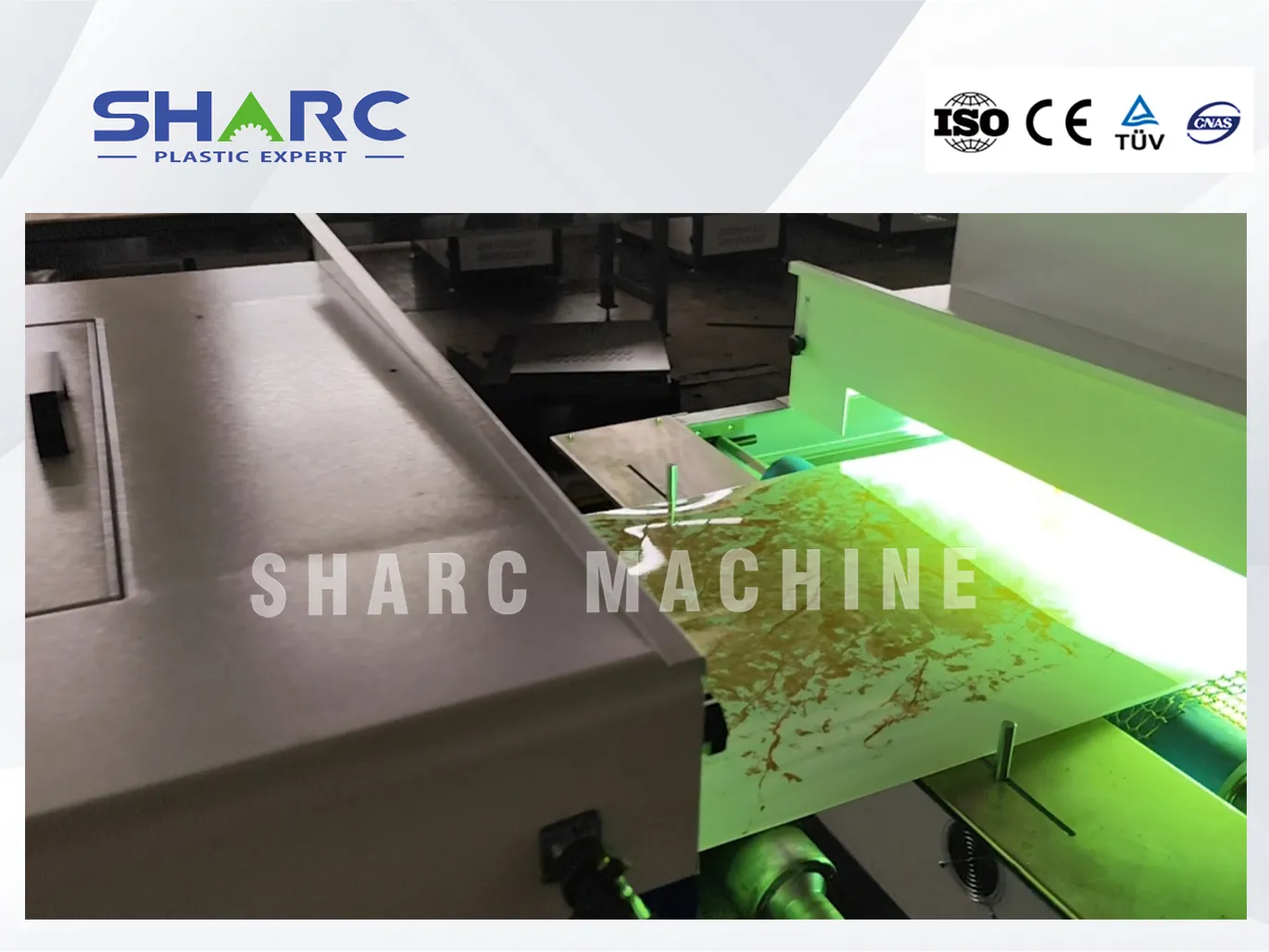

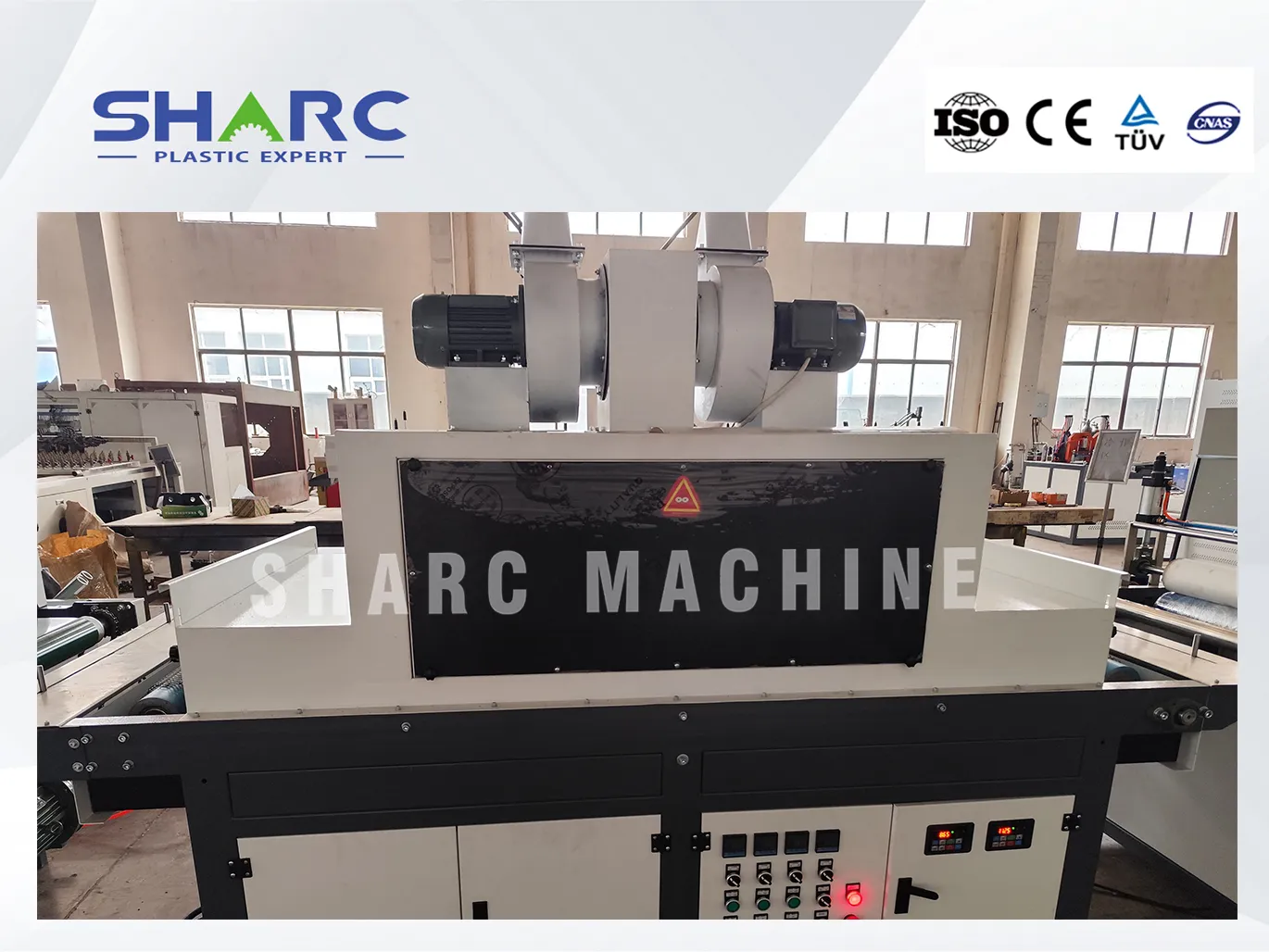

- Curing: The printed PVC edge sheet is irradiated with ultraviolet light through an ultraviolet curing system to quickly dry and solidify the coating.
- Collection and packaging: The cured PVC edge sheets are collected centrally through the collection device, packaged and stored.
